$18,443.56
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 208/120 | N/A | 160 kVA | 31.6" | 35.8" | 73.7" | 960 lb |
| Voltage | 208/120 |
| WPC | N/A |
| Amp/H | 160 kVA |
| Length | 31.6" |
| Width | 35.8" |
| Height | 73.7" |
| Weight | 960 lb |

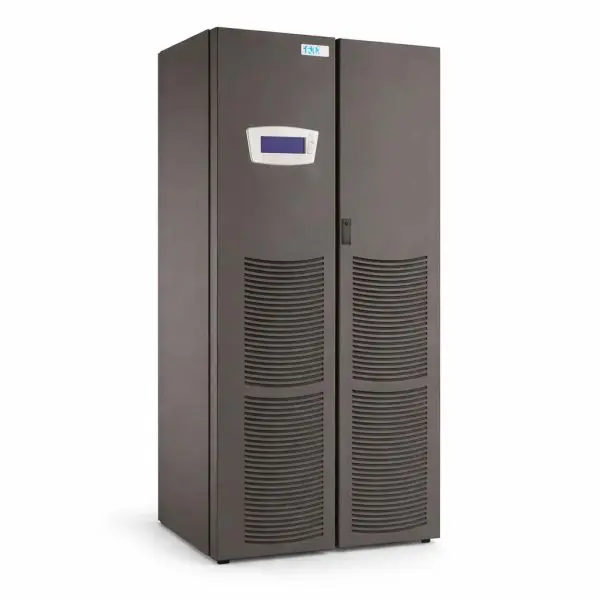

Protect critical operations with the Eaton / Powerware 9390 160 kVA UPS, a three-phase system delivering up to 144 kW of power protection. Its online double-conversion architecture continuously conditions incoming power and supplies regulated, sine-wave output for data centers, industrial equipment, and demanding commercial applications.
Each refurbished system from Gruber Power Services is reconditioned, cosmetically restored, and tested in the USA. Our team helps match the UPS, battery capacity, bypass equipment, and monitoring options to your facility’s electrical requirements.
| Category | Details |
|---|---|
| Power & Technology | 160 kVA / 144 kW at 0.9 rated output power factor; online double-conversion with sine-wave output. Confirm the supplied unit’s nameplate rating. |
| Input | 480 VAC, three-phase. Listed frequency range: 55–65 Hz; voltage window: +10%/−15%. Typical input power factor: ≥0.99; listed input current distortion: <4.5% THDi at full load. Confirm applicable operating conditions and wiring requirements for the supplied configuration. |
| Output | 480 VAC, three-phase. Listed static voltage regulation: ±1%. Output voltage distortion: approximately 2% with linear loads or 5% with nonlinear loads. Listed full-kW support across a load power-factor range of 0.9 lagging to 0.9 leading, subject to the supplied unit’s operating limits. |
| Bypass | Built-in static bypass. Confirm external maintenance bypass requirements and compatible equipment for the installation. |
| Fault Ratings & Protection | Short-circuit ratings and protective-device requirements depend on the exact configuration. Confirm equipment ratings, breaker sizing, and required upstream protection using the applicable installation documentation and site electrical design. |
| Battery System | External battery system with ABM battery charging technology. Battery chemistry, DC voltage, string configuration, and disconnect equipment must match the supplied UPS and charger settings. Battery capacity is selected for the required load and backup runtime. |
| Controls & Monitoring | Front LCD/operator interface with system status and alarms. Compatible optional network and SNMP equipment supports remote monitoring, depending on installed hardware. |
| Parallel Operation | Hot Sync parallel options support compatible capacity or redundancy arrangements. Required controls, tie equipment, and switchgear depend on the complete system design. |
| Dimensions & Weight | Listed cabinet dimensions: approximately 35.8 W × 31.6 D × 73.7 H inches (910 × 803 × 1,873 mm). Listed weight: approximately 960 lb. Confirm unit-specific dimensions and weight before planning delivery, rigging, and floor loading. External batteries and accessory cabinets increase the total installation footprint. |
| Operating Environment | Indoor installation in a controlled environment. Confirm temperature, humidity, altitude limits, ventilation, heat rejection, and service clearances in the documentation for the supplied unit. |
| Option | Details |
|---|---|
| Small Battery Cabinet | Compatible 9390 SBC-family cabinet with battery strings sized for the required runtime. Confirm exact cabinet model, DC configuration, and disconnect compatibility. |
| Large Battery Cabinet | Compatible 9390 LBC-family cabinet for higher battery capacity and extended runtime, subject to system configuration. |
| Integrated Accessory Cabinet | Compatible IAC-D distribution equipment with panelboard or sub-feed arrangements for downstream loads, depending on the selected configuration. |
| Maintenance Bypass & Parallel Equipment | Compatible maintenance bypass, tie cabinets, and parallel-system equipment selected to match the complete electrical design. |
| Communication Interfaces | Compatible network-management and monitoring options, subject to installed hardware and availability. |
Get a professionally refurbished UPS backed by our electronics engineering lab, configuration assistance, and 1-year full replacement warranty.
Contact Gruber Power Services for current availability, pricing, and a configuration matched to your facility.
