$45.00
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 75 A | N/A | N/A | N/A | ≈  195 g |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 75 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | ≈  195 g |

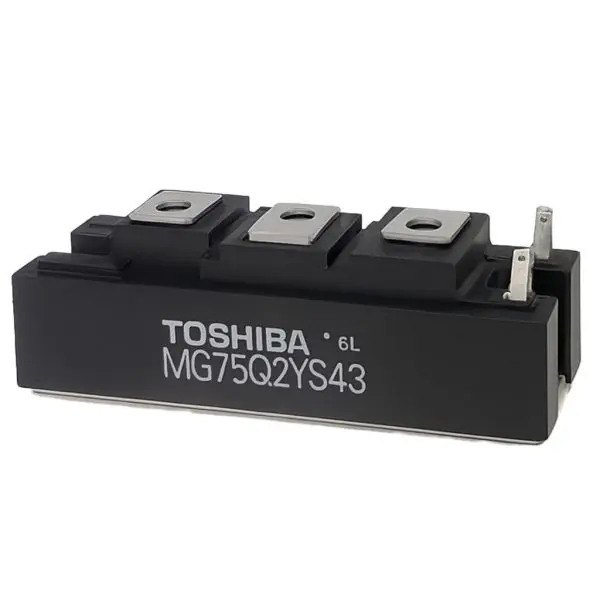

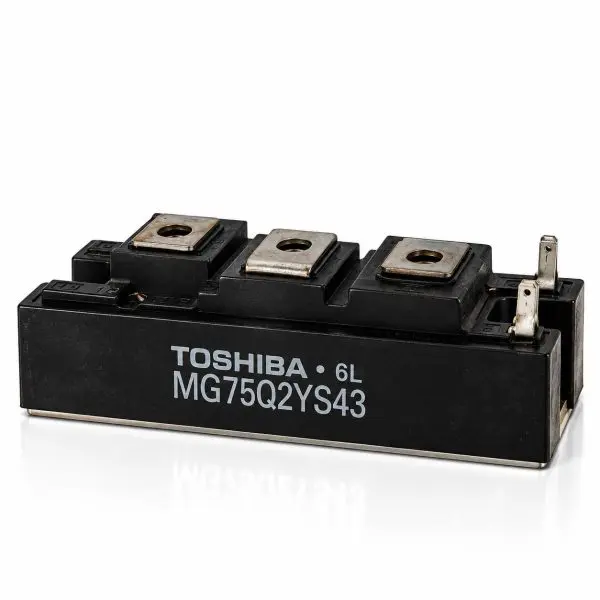

600Â V / 75Â A dual IGBT power module for UPS inverters, motor drives, and high-power SMPS. Each IGBT includes a
reverse-connected fast/soft recovery diode. The insulated base simplifies heatsinking and grounding.
| Parameter | Value |
| Manufacturer | Toshiba |
| Part Number | MG75Q2YS43 |
| Device Type | Dual N-channel IGBT half-bridge with antiparallel diodes |
| Collector-Emitter Voltage (VCES) | 600Â V |
| Continuous Collector Current (IC) | 75Â A (DC) |
| Gate-Emitter Voltage (VGES) | ±20 V |
| VCE(sat) (max) | ≤ 4.0 V @ IC=75 A, VGE=15 V, 25 °C |
| Switching (family) | tf ≤ 0.5 µs; trr ≤ 0.5 µs |
| Isolation | Terminals isolated from baseplate |
| Operating / Storage | Tj ≤ 150 °C / Tstg −40…+125 °C (family) |
| Package / Mass | 2-in-one isolated-base module; ≈ 0.43 lb (~195 g) |
| Configuration | Dual (2-pack) half-bridge |
| Module | Applications | Notes |
| MG75Q2YS43 | UPS; AC drives; DC choppers; welders; SMPS | Confirm pinout, torque, gate-drive limits, and cooling. |
