$27.59
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 1400 V | N/A | 16 A | N/A | N/A | N/A | ≈ 110 g |
| Voltage | 1400 V |
| WPC | N/A |
| Amp/H | 16 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | ≈ 110 g |

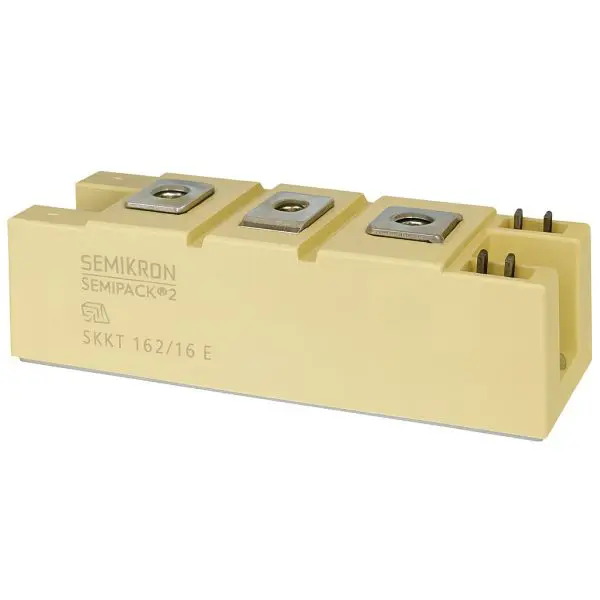

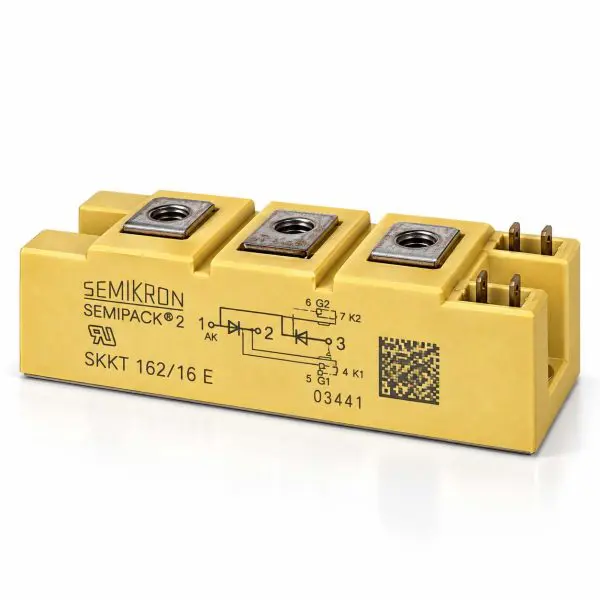

Compact dual SCR (phase-control) module in SEMIPACK 1 housing for small to mid-power rectifiers, soft-starts, and AC power controllers. 1.6Â kV blocking class with insulated ceramic base for simple, safe heatsinking.
| Parameter | Value |
| Manufacturer | Semikron Danfoss |
| Part Number | SKKT 162/16E |
| Device Type | Dual phase-control thyristor module (series-connected) |
| Repetitive Peak Off-State / Reverse Voltage (VDRM, VRRM) | 1600Â V |
| Average On-State Current (IT(AV)) | 16 A (180° sine, Tc ref.) |
| R.M.S. On-State Current (ITRMS) | ≈ 25 A |
| Surge On-State Current (ITSM) | ≈ 350–400 A (10 ms, non-rep.) |
| Peak On-State Voltage (VTM) | ≈ 1.5 V @ IT typ., 25 °C |
| Gate Trigger (IGT / VGT) | ≤ 50–100 mA / ≤ 2.0 V |
| Critical dv/dt (min) | ≈ 500 V/µs |
| Critical di/dt | ≈ 100 A/µs (with adequate gate drive) |
| Thermal Resistance Rth(j-c) | ≈ 0.9 K/W per junction (class) |
| Isolation (terminals↔base) | 2.5 kVRMS / 1 min |
| Case / Outline | SEMIPACKÂ 1 (A10) / TO-240AA; isolated base |
| Mass (typ.) | ≈ 110 g |
| Configuration | Dual SCRs, series-connected (center-tap) |
