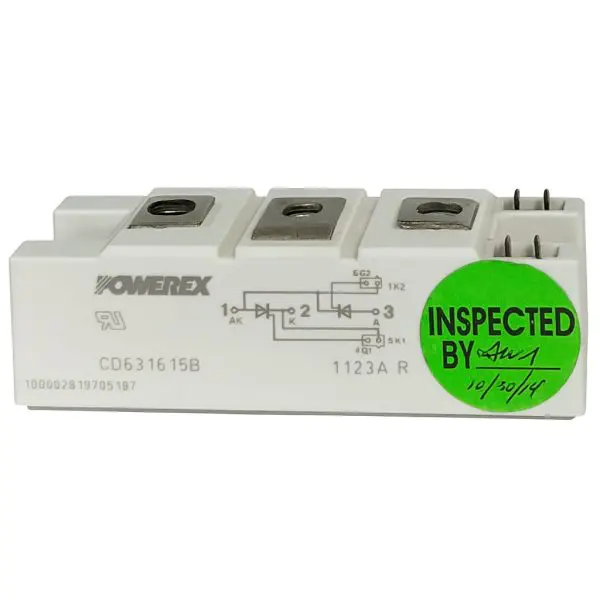

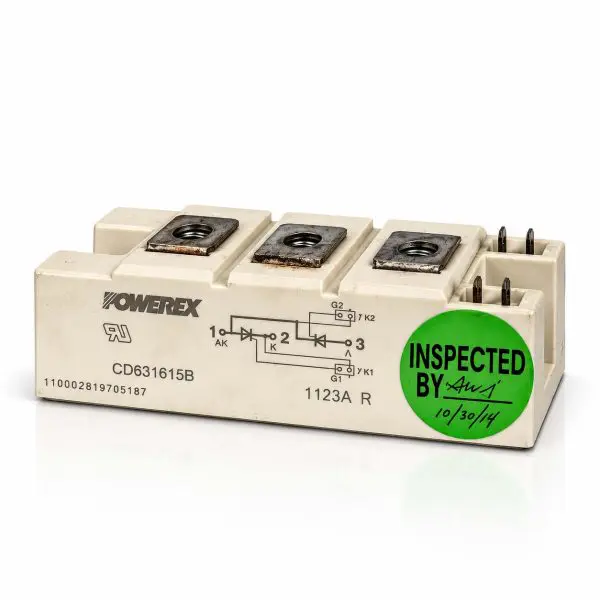

POWEREX – CD631615B-1123AR – IGBT Power Transistor – Reclaimed Part

CD631615B-1123AR_1
EE
CD631615B-1123AR_1
EE

Manufacturer

OEM Part Number

CD631615B-1123AR

GPS Part Number

27-POW-CD631615B-1123AR

Categories

Tags

Price:

$77.00

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1600 V N/A 235 A N/A N/A N/A 165 g
Voltage 1600 V
WPC N/A
Amp/H 235 A
Length N/A
Width N/A
Height N/A
Weight 165 g

Powerex — CD631615B-1123AR Thyristor Module
1600 V •
160 A ITAV •
Dual phase-control thyristors (inverse-parallel) •
Isolated POW-R-BLOKâ„¢ baseplate
What it is

Dual 1.6 kV SCR block in the Powerex POW-R-BLOK™ family. Series-connected SCR dice per arm deliver robust
phase-control performance in rectifiers, soft-starts, and UPS front-ends. Electrically isolated base simplifies
heatsink mounting alongside other modules.

At-a-Glance
  • Voltage / Current: 1600 V / 160 A ITAV (235 A ITRMS)
  • Topology: Dual thyristor (inverse-parallel), series connection per SCR
  • Mounting: Chassis-mount module with isolated baseplate
  • Use Cases: Soft-starts; controlled rectifiers; AC voltage regulators; UPS input bridges
  • Condition Options: New old stock or tested reclaimed pulls
Features
  • High surge capability — ITSM up to 5.0 kA (50 Hz) / 5.25 kA (60 Hz).
  • Easy drive — VGT ≤ 2 V, IGT ≤ 150 mA (max).
  • Isolated base — POW-R-BLOKâ„¢ construction for straightforward heatsinking.
  • Service-friendly — Quick-connect gate tabs; industry-standard outline.
Technical Specifications
Parameter Value
Manufacturer Powerex
Part Number CD631615B-1123AR
Device Type Dual phase-control thyristor module (inverse-parallel)
Repetitive Peak Off-State / Reverse Voltage (VDRM, VRRM) 1600 V
On-State Current, RMS (ITRMS) 235 A
Average On-State Current (per arm) ITAV = 160 A (max)
Surge On-State Current (ITSM) 5.0 kA (50 Hz), 5.25 kA (60 Hz)
Gate Trigger Voltage / Current VGT ≤ 2.0 V; IGT ≤ 150 mA
Holding Current (IH) ≤ 150 mA
Operating Junction Range −40 °C to +125 °C (TJ)
Mounting / Base Chassis-mount, isolated baseplate (POW-R-BLOKâ„¢)
Package / Footprint POW-R-BLOKâ„¢ module; industry-standard outline
Configuration Dual (two SCRs, inverse-parallel)
Compatibility / Representative Uses
Module Applications Notes
CD631615B-1123AR Soft-starts; controlled rectifiers; AC voltage regulators; UPS input bridges Confirm gate/aux pinout and mechanical outline vs. OEM drawings; maintain isolation and heatsink flatness.
Why buy from Gruber
  • Tested pulls & new stock — Trigger behavior verified, continuity checked, base flatness inspected.
  • Traceability — Each module labeled with a work-order ID for service history confidence.
  • UPS expertise — We help match the exact variant and hardware to your frame for a drop-in fix.
