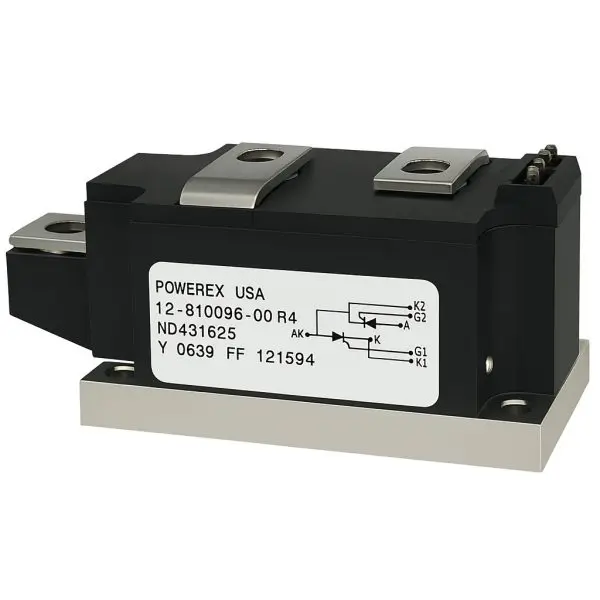

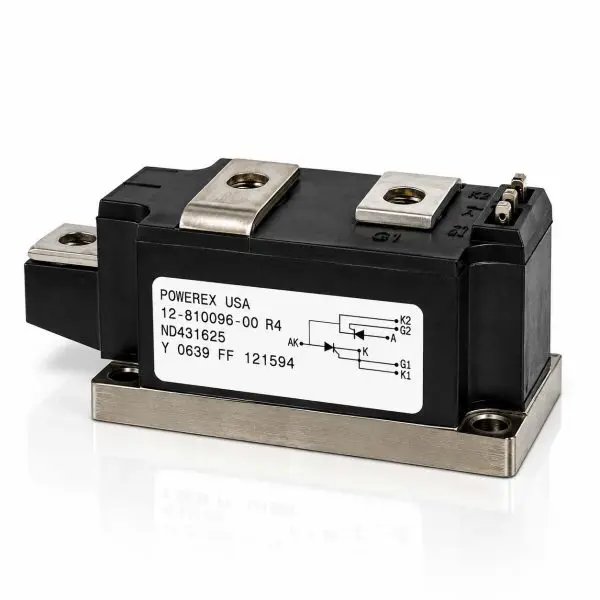

POWEREX – 12-810096-00 R4 – IGBT Power Transistor – Reclaimed Part

12-810096-00_R4_1
EE
12-810096-00_R4_1
EE

Manufacturer

OEM Part Number

12-810096-00 R4

GPS Part Number

27-POW-12-810096-00-R4

Categories

Tags

Price:

$153.00

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1600 V N/A 393 A N/A N/A N/A 1.6 kg
Voltage 1600 V
WPC N/A
Amp/H 393 A
Length N/A
Width N/A
Height N/A
Weight 1.6 kg

Powerex — 12-810096-00 R4 (ND431625) Thyristor Module
1600 V •
250 A ITAV •
Dual phase-control thyristors (inverse-parallel) •
Isolated baseplate (ND4 package)
What it is

1.6 kV, 250 A dual SCR module from Powerex’s POW-R-BLOK™ family (mfg. p/n ND431625; customer p/n 12-810096-00 R4).
It’s a compact, isolated-base block for soft-starts, phase-angle controllers, and UPS/rectifier front-ends—offering high surge capability and straightforward heatsinking.

At-a-Glance
  • Voltage / Current: 1600 V / 250 A ITAV (393 A ITRMS)
  • Topology: Dual thyristor (inverse-parallel), phase-control
  • Mounting: Screw-mount, isolated DCB base (ND4 package)
  • Use Cases: Soft-starts; controlled rectifiers; AC regulators; UPS input bridges
  • Condition Options: NOS or tested reclaimed pulls
Features
  • High surge strength — ITSM up to ~8.8 kA (60 Hz, non-rep.).
  • Robust triggering — IGT ≤ 150 mA, VGT ≤ 3 V.
  • Service-friendly — Quick-connect gate tabs; isolated base simplifies heatsink design.
  • Compact module — ND4 outline ~116 × 50 × 55 mm; ≈ 840 g.
Technical Specifications
Parameter Value
Manufacturer Powerex
Part Number 12-810096-00 R4 (module type ND431625)
Device Type Dual phase-control thyristor module (inverse-parallel)
Repetitive Peak Off-State / Reverse Voltage (VDRM, VRRM) 1600 V
On-State Current, RMS (ITRMS) 393 A
Average On-State Current (per arm) ITAV = 250 A (case-rated)
Surge On-State Current ITSM ≈ 8.8 kA (60 Hz, non-rep.)
Critical dv/dt ≈ 500 V/µs (typ. catalog value)
Critical di/dt ≈ 800 A/µs (typ. catalog value)
Gate Trigger Current / Voltage IGT ≤ 150 mA; VGT ≤ 3 V
Package / Footprint ND4 block; ~116 × 50 × 55 mm; ≈ 840 g
Isolation / Mounting Isolated baseplate; chassis/screw mount
Configuration Dual (two SCRs, inverse-parallel)
Compatibility / Representative Uses
Module Applications Notes
12-810096-00 R4 (ND431625) Soft-starts; controlled rectifiers; AC regulators; UPS input bridges Confirm gate/aux pinout and ND4 mounting centers; maintain isolation and heatsink flatness.
Why buy from Gruber
  • Tested pulls & new stock — Trigger behavior verified, continuity checked, base flatness inspected.
  • Traceability — Each module labeled with a work-order ID for service history confidence.
  • UPS expertise — We help match the exact variant and hardware to your frame for a drop-in fix.

Related products

Post Views: 211
