$158.54
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V AC | N/A | 800 A | 219mm | 63.5mm | N/A | N/A |
| Voltage | 600 V AC |
| WPC | N/A |
| Amp/H | 800 A |
| Length | 219mm |
| Width | 63.5mm |
| Height | N/A |
| Weight | N/A |

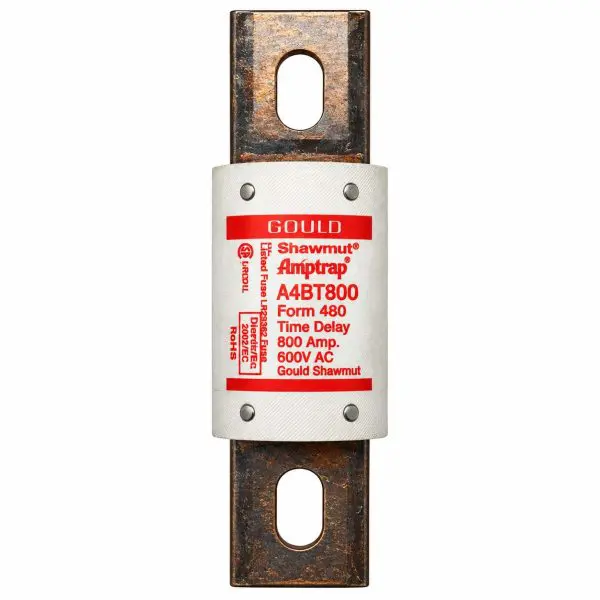

The GOULD SHAWMUT A4BT800 (now Mersen / Ferraz Shawmut) is an Amp-Trap® 800A Class L time-delay, current-limiting fuse designed for mains, feeders, transformers and other high-inrush electrical applications. This listing features reclaimed, continuity-tested units removed from decommissioned operational equipment.
Time-Delay, Current-Limiting: Designed to accommodate temporary motor and transformer inrush while providing current-limiting overcurrent protection.
800A Class L Construction: Heavy-duty Class L fuse construction for high-current industrial power-distribution applications.
High Interrupting Capacity: Rated for high available fault-current environments when installed within its specified voltage and application limits.
Class L Blade Configuration: Designed for compatible Class L fuse mounting hardware. Verify dimensions and mounting arrangement against the original equipment before ordering.
Reclaimed & Verified: Each unit is continuity-tested and visually inspected prior to sale; contact Gruber regarding new Mersen stock availability.
| Parameter | Value |
| Manufacturer | Gould Shawmut / Ferraz Shawmut / Mersen |
| Part Number | A4BT800 |
| Product Family | Amp-Trap® A4BT |
| Fuse Type / Category | UL Class L, time-delay, current-limiting |
| Rated Current | 800 A |
| Rated AC Voltage | 600 V AC |
| Rated DC Voltage | 500 V DC |
| AC Interrupting Rating | 200 kA @ 600 V AC |
| DC Interrupting Rating | 100 kA @ 500 V DC |
| Time-Delay Characteristic | Class L time-delay characteristic for temporary inrush conditions |
| Indicator | Standard A4BT800 non-indicating configuration; verify markings on supplied unit |
| Body / Size | Class L cartridge-style body |
| Terminals / Mounting | Class L blade terminals; compatible mounting hardware required |
| Overall Length | Approx. 8.625 in. (219 mm) |
| Body Diameter | Approx. 2.50 in. (63.5 mm) |
| Compliance / Approvals | Class L fuse; verify approval markings on supplied reclaimed unit |
| Condition | Reclaimed; continuity-tested and visually inspected |
| Fuse | Compatible Applications | Notes |
| A4BT800 | UPS equipment, mains, feeders, transformers, distribution systems and other high-current equipment specifically designed for an 800A Class L time-delay fuse or an OEM-approved equivalent. | Verify the OEM part number, 800A rating, circuit voltage, Class L mounting arrangement, physical dimensions and required interrupting rating before ordering. |
Important: Confirm the original equipment fuse specification, voltage, current rating, interrupting rating, mounting configuration and physical dimensions before installation. Do not substitute a fuse solely because its amperage and voltage ratings appear similar.
