$299.02
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 690 V AC | N/A | 700 A | 70mm | 51mm | 51mm | 399 g |
| Voltage | 690 V AC |
| WPC | N/A |
| Amp/H | 700 A |
| Length | 70mm |
| Width | 51mm |
| Height | 51mm |
| Weight | 399 g |

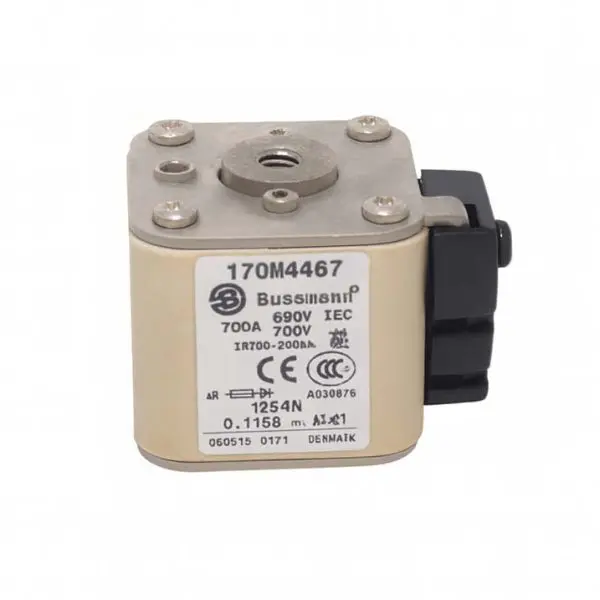

The BUSSMAN 170M4467 is a high-speed semiconductor (aR) square-body fuse engineered for reliable overcurrent protection in demanding UPS and power-electronic applications. Designed for rectifiers, inverters, and common-bus rails, this fuse interrupts fault currents rapidly to safeguard semiconductors and uptime.
Ultra-Rapid aR Curve:
Purpose-built for semiconductor circuits where fast, precise interruption is essential.
Size-1 Square-Body:
1BKN/50 form factor with flush-end M8 terminals on ~51.1Â mm centers for drop-in replacement.
High Fault Withstand:
690 V (IEC) / 700 V (UL) rating with 200 kA interrupting capacity and center Type K indicator (microswitch-ready).
Cost-Effective Options:
Available as new OEM stock or reclaimed from decommissioned, fully functional UPS units, each fuse continuity-tested and verified.
| Parameter | Value |
| Manufacturer | BUSSMAN (Eaton) |
| Part Number | 170M4467 |
| Fuse Type / Category | Semiconductor Protection, aR (high-speed) |
| Rated Voltage | 690Â VÂ AC (IEC); 700Â VÂ AC (UL) |
| Rated Current | 700Â A |
| Interrupting Capacity | 200Â kA |
| Indicator | Center indicator, Type K (microswitch-ready) |
| Body / Size | Square-body Size 1, 1BKN/50 |
| Terminals / Mounting | Flush-end contact, M8 studs; 51.1Â mm center-to-center |
| Pre-arcing I²t @ 660 V | 69,500 A²s |
| Clearing I²t @ 660 V | 465,000 A²s |
| Power / Watt Loss (at rated) | 85Â W |
| Dimensions (L × W × H) | 70 mm × 51 mm × 51 mm |
| Approx. Weight | ≈ 399 g |
| Compliance / Approvals | IEC rated; UL Recognized; CE-marked; RoHS compliant |
| UPC / EAN | UPCÂ 051712258975 Â |Â EANÂ 5027590453219 |
| Fuse | Compatible UPS Models | Notes |
| 170M4467 | Used in 690Â V size-1 (1BKN/50) positions across large UPS and power-converter assemblies that specify 700Â A aR square-body fuses. Representative applications include common-bus protection in large UPS systems, DC drives, and rectifier/inverter stacks. |
Verify fitment: Size-1 1BKN/50 body, M8 studs, ~51.1 mm centers, Type K indicator. Always match the exact OEM part number/BOM before ordering. |
