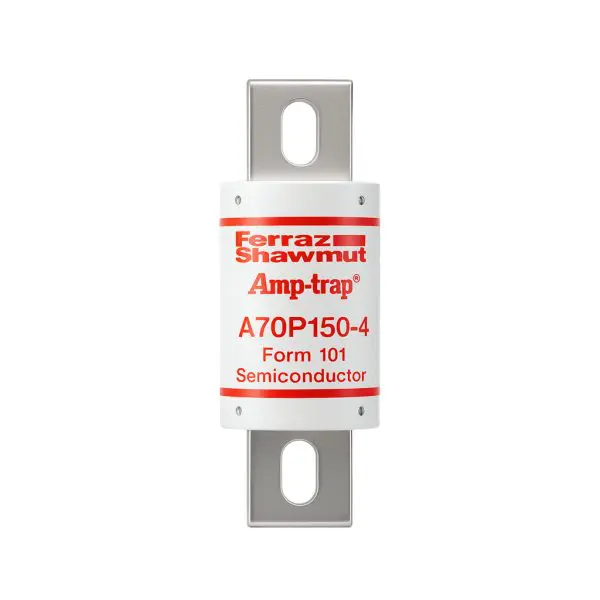

The Ferraz Shawmut A70P150-4, now part of the Mersen product family, is an Amp-Trap® Form 101 high-speed semiconductor fuse designed for protection of sensitive power-electronic components. Rated at 150 amps, 700 VAC and 650 VDC, this fuse is intended for applications where rapid current limitation is required to protect rectifiers, inverters, drives, DC bus circuits, and other semiconductor-based power equipment.
Its high-speed, current-limiting design helps reduce the amount of damaging fault energy allowed to reach expensive semiconductor components during an overcurrent or short-circuit event. The A70P series is commonly associated with industrial power conversion, UPS equipment, variable-frequency drives, rectifier systems, and inverter assemblies where the equipment manufacturer specifies this fuse type.
This listing is for a reclaimed A70P150-4 removed from decommissioned power equipment. Each fuse is continuity-tested and visually inspected prior to sale. Cosmetic wear from previous installation may be present and is normal for reclaimed industrial components.
High-Speed Protection:
Designed for rapid current limitation to help protect sensitive semiconductor devices against damaging short-circuit and fault energy.
150 Amp Rating:
Provides high-speed circuit protection for compatible power-electronic equipment requiring a 150A fuse.
700VAC / 650VDC Rating:
Suitable for compatible higher-voltage AC and DC power-conversion applications.
Amp-Trap® Form 101:
Part of the Ferraz Shawmut / Mersen high-speed fuse family developed for semiconductor protection.
Bolt-Down Blade Terminals:
Designed with blade-style mounting terminals for secure, low-resistance electrical connections in compatible equipment.
Current-Limiting Design:
Helps minimize fault-energy let-through to protect expensive rectifier, inverter, and semiconductor power components.
Reclaimed & Verified:
Removed from decommissioned equipment, continuity-tested, and visually inspected prior to sale.
| Parameter | Value |
| Manufacturer | Ferraz Shawmut / Mersen |
| Part Number | A70P150-4 |
| Series | Amp-Trap® Form 101 / A70P |
| Fuse Type | High-Speed Semiconductor Fuse |
| Current Rating | 150 A |
| AC Voltage Rating | 700 VAC |
| DC Voltage Rating | 650 VDC |
| Interrupting Rating | 100 kA AC / 100 kA DC |
| Indicator | Non-Indicating |
| Body Style | Round Cartridge / Form 101 |
| Body Diameter | Approx. 1.50 in (38.1 mm) |
| Overall Length | Approx. 5.09 in (129.3 mm) |
| Terminal / Mounting Style | Bolt-Down Blade Terminals |
| Approx. Weight | Approx. 0.60 lb (0.27 kg) |
| UL Recognition | UL Recognized |
| UPC | 782001947286 |
| Condition | Reclaimed / Continuity Tested |
| Application | Protection Function |
| UPS Systems | Protection of compatible rectifier, inverter, and DC-bus power stages |
| Rectifiers | Fast fault-current protection of semiconductor rectifier components |
| Inverters | Protection of compatible inverter semiconductor stages |
| DC Common-Bus Systems | Current-limiting protection in compatible high-power DC circuits |
| Industrial Drives / VFDs | Protection of compatible semiconductor power stages |
| Power Converters | High-speed protection for industrial power-conversion electronics |
This product is a reclaimed industrial component removed from decommissioned equipment. Each fuse is continuity-tested and visually inspected prior to sale. Because these components have previously been installed, cosmetic condition may vary and can include surface discoloration, scratches, oxidation, mounting marks, label wear, or other evidence of prior service.
Reclaimed inventory provides a cost-effective source for maintaining legacy UPS and power-electronic systems, particularly where exact replacement components may be difficult to source.
The A70P150-4 is intended for equipment specifically designed to use this fuse or an approved equivalent. Applications may include compatible UPS systems, rectifiers, inverters, DC drives, variable-frequency drives, converter assemblies, and other semiconductor power equipment.
Always verify the original fuse part number, 150A current rating, 700VAC / 650VDC voltage ratings, physical dimensions, blade geometry, mounting configuration, and protection characteristics before ordering.
High-speed semiconductor fuses must be matched to the equipment manufacturer’s specified part number, current rating, voltage rating, physical dimensions, terminal configuration, and semiconductor-protection characteristics. Do not substitute a fuse based solely on matching amperage and voltage. Verify A70P150-4 against the original fuse or equipment service documentation before ordering or installation.
