$109.03
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 700 VAC | N/A | 1200 A | N/A | N/A | N/A | 0.93 kg |
| Voltage | 700 VAC |
| WPC | N/A |
| Amp/H | 1200 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 0.93 kg |

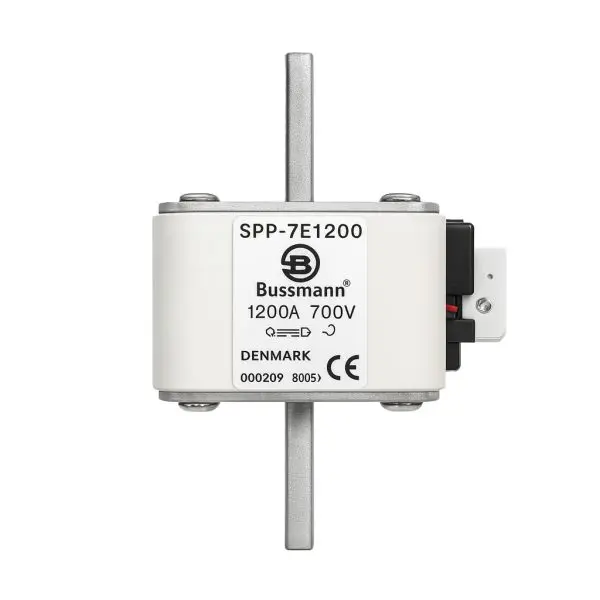

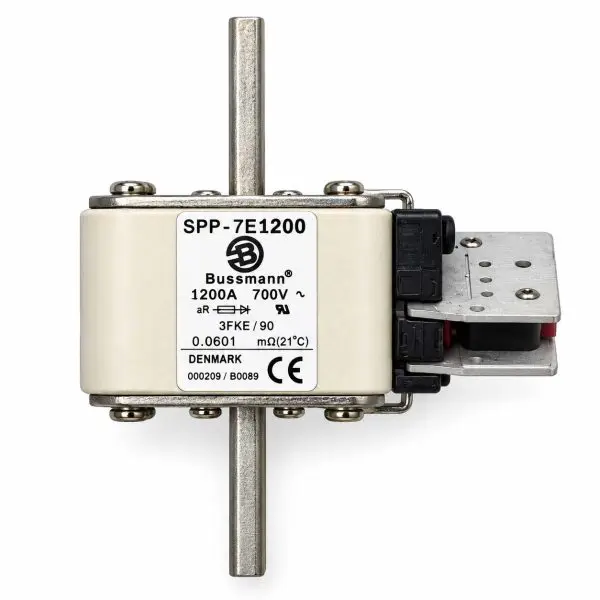

The BUSSMANN SPP-7E1200 is a 700 V, high-speed (aR) Semitron square-body fuse for protecting power semiconductors in UPS and converter applications. This Case-7, short-blade E-style variant includes a visual blown-fuse indicator and is designed for clip/holder mounting in common high-current DC link and inverter stacks. Offered here as a reclaimed part from decommissioned equipment—continuity-tested and verified for reuse.
High-speed aR protection:
Engineered for fast interruption to safeguard IGBTs/diodes in rectifiers, inverters, and common-bus rails.
Case-7 Short-Blade, E-style:
Square-body Semitron design with holder-mount knife blades and integrated visual indicator.
Indicator & microswitch-ready:
E-style visual indicator; optional MSW710 microswitch accessory for remote status (sold separately).
700Â V UPS compatibility:
Suited to large-frame UPS and power-electronic systems requiring 700Â VAC aR fuses.
| Parameter | Value |
| Manufacturer | BUSSMANN (Eaton) |
| Part Number | SPP-7E1200 |
| Fuse Type / Category | Semiconductor Protection, aR (high-speed) |
| Rated Voltage | 700Â VÂ AC |
| Rated Current | 1200Â A |
| Interrupting Capacity | High AC interrupting rating (SPP 700Â V series; see data sheet) |
| Indicator | E-style visual indicator; optional MSW710 microswitch |
| Body / Size | Square-body Case 7 (Semitron) |
| Terminals / Mounting | Knife-blade, holder/clip mounted (short-blade) |
| Pre-arcing I²t | Per SPP 700 V series table for 1200 A |
| Clearing I²t @ 700 V | Per SPP 700 V series table (worst-case, 60 Hz) |
| Power Loss (at rated) | See data sheet (Case-7, 1200Â A) |
| Dimensions | Case-7 short-blade format; typical overall length ~133.4 mm (5¼″) blade-to-blade; body ~91 mm square (see dimension table) |
| Approx. Weight | ≈ 0.93 kg (≈ 2.05 lb) |
| Compliance / Approvals | Legacy Semitron series (availability and listings may be obsolete). Verify against OEM/BOM. |
| UPC / EAN | — |
| Fuse | Compatible UPS Models | Notes |
| SPP-7E1200 | Large-frame UPS and power converters that specify Case-7 (Semitron) 700Â V aR fuses with short-blade holder mounting. | Verify fitment: Case-7 body, short-blade holder style, 700Â VAC, 1200Â A rating, E-style indicator. Always match the exact OEM part/BOM. |
