$89.22
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 1000 V | 175 A | 94.0mm | 30.0mm | n/a | .154kg |
| Voltage | 1000 V |
| Amp/H | 175 A |
| Length | 94.0mm |
| Width | 30.0mm |
| Height | n/a |
| Weight | .154kg |

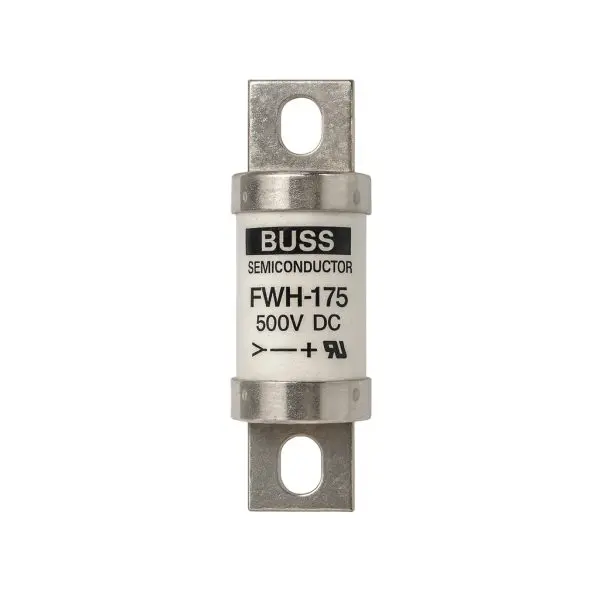

The BUSSMANN FWH-175A is a North American–style high-speed (fast-acting) semiconductor fuse for protecting rectifiers, inverters, and DC common-bus rails in UPS and power-electronic systems. This listing features reclaimed, continuity-tested units removed from decommissioned, fully functional equipment.
High-Speed Protection:
Fast-acting element tailored for semiconductor circuits with tight let-through limits.
Stud-Mount Cartridge Body:
Bolt-down blade terminals for robust, low-impedance connections and easy service.
High Interrupt Ratings:
1000Â VÂ AC / 800Â VÂ DC series rating with 200Â kA AC and typical 50Â kA DC interrupt capability.
Reclaimed & Verified:
Every unit is continuity-tested and visually inspected; OEM-new stock available by request.
| Parameter | Value |
| Manufacturer | BUSSMANN (Eaton) |
| Part Number | FWH-175A |
| Fuse Type / Category | High-speed semiconductor fuse (fast-acting), non-indicating |
| Rated Voltage | 1000Â VÂ AC / 800Â VÂ DC |
| Rated Current | 175Â A |
| Interrupting Capacity | 200Â kA (AC) Â |Â 50Â kA (DC) |
| Indicator | None (non-indicating) |
| Body / Size | Stud-mount cartridge (FWH series) |
| Terminals / Mounting | Bolt-down blades; stud-mount (typ. ~0.406Â in mounting holes) |
| Pre-arcing I²t @ 500 V | 1,450 A²s |
| Clearing I²t @ 500 V | 6,200 A²s |
| Power Loss (at rated) | 35Â W |
| Dimensions (L × Ø) | 3.701 in × 1.181 in  (≈ 94.0 mm × 30.0 mm) |
| Approx. Weight | ≈ 0.34 lb  (≈ 0.154 kg) |
| Compliance / Approvals | UL Recognized; CSA Component Acceptance; CE-marked; RoHS compliant |
| UPC / EAN | UPC 051712150125  | EAN — |
| Fuse | Compatible UPS/Power-Electronics Models | Notes |
| FWH-175A | Used in UPS frames, DC drives, and converter stacks requiring BUSSMANN FWH high-speed fuses in the 175 A class (stud-mount, bolt-down blades). | Verify bolt-hole geometry and overall size (≈ 3.701 in × 1.181 in) before ordering; match the exact OEM part/BOM. |
