Manufacturer
OEM Part Number
GPS Part Number
Categories
$19,491.56
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 208/230 V | N/A | N/A | 43.1 | 11.8" | 78.4" | 352.70 lb |
| Voltage | 208/230 V |
| WPC | N/A |
| Amp/H | N/A |
| Length | 43.1 |
| Width | 11.8" |
| Height | 78.4" |
| Weight | 352.70 lb |

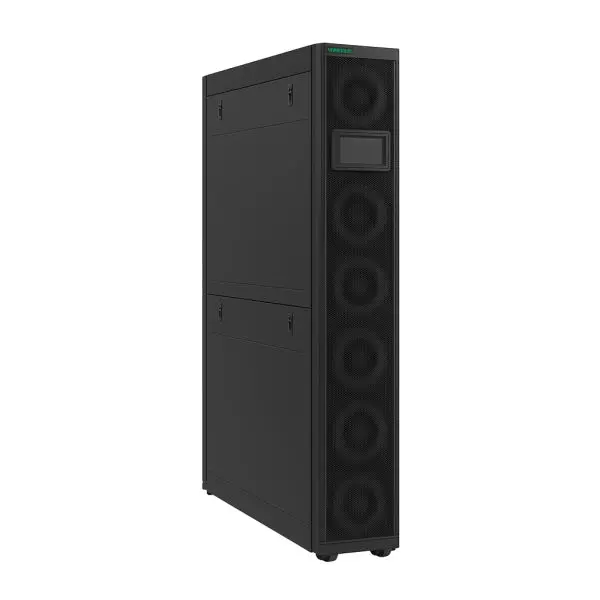

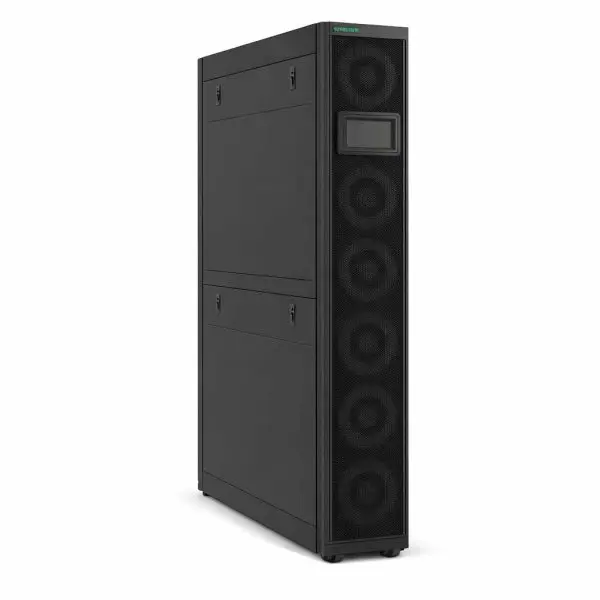

The APC ACRD301P is a factory-new Uniflair InRow DX unit designed for high-density, close-coupled cooling. Installed directly in the rack row, it delivers efficient, targeted airflow and pairs with matched APC outdoor condensers for reliable heat rejection. This unit ships brand new from APC/Schneider Electric with full manufacturer warranty and support.
| Category | Detail |
|---|---|
| Cooling Capacity | 30 kW nominal (configuration and conditions per datasheet) |
| Power Input | Three-phase, 50/60 Hz (voltage, MCA/MOP per nameplate for selected SKU) |
| Refrigerant | Direct-expansion (DX) circuit using R410A; factory charge per specification |
| Airflow | High-efficiency EC fans; variable-speed; front-to-back airflow for in-row deployment |
| Controls & Monitoring | Uniflair controller with local HMI; alarms; BMS integration options (e.g., Modbus); compatible with APC monitoring |
| Physical | InRow cabinet; 300 mm (≈11.8″) width; nominal 42U height; exact dimensions/weight per mechanical drawing |
| Environment | Indoor IT environment; operating limits per datasheet (temperature/humidity/altitude) |
| Accessory | Model | Notes |
|---|---|---|
| Outdoor Condenser | ACCD / ACCU series | Matched APC condensers for DX heat rejection (select to match site voltage/capacity) |
| Leak Detection | Uniflair LD kit | Optional rack/row leak detection with alarm integration |
| Network/Monitoring | Monitoring gateway | Enable remote monitoring and BMS/EMS connectivity as required |
