Manufacturer
OEM Part Number
GPS Part Number
Categories
$18,500.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208/230 V | N/A | 42.1" | 11.8" | 78.4" | 439 |
| Voltage | 208/230 V |
| Amp/H | N/A |
| Length | 42.1" |
| Width | 11.8" |
| Height | 78.4" |
| Weight | 439 |

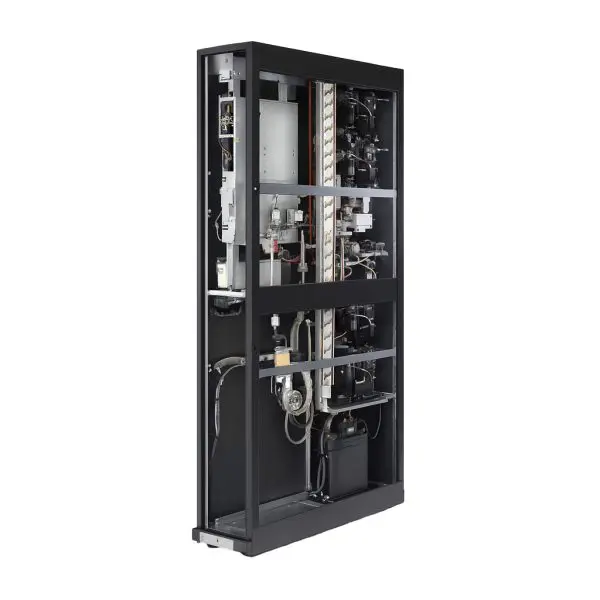

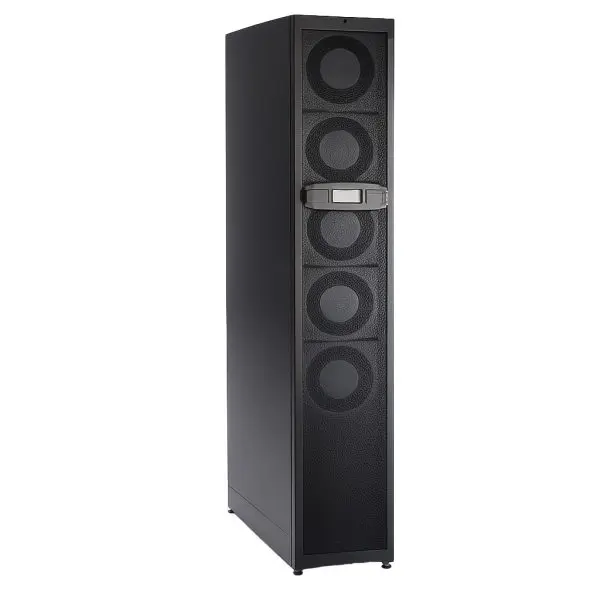

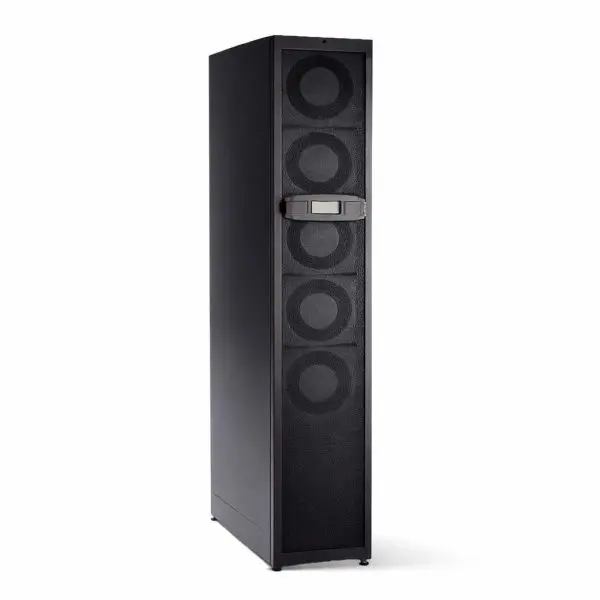

The APC ACRD200 is a factory-new Uniflair InRow RD, 300 mm-wide, fluid-cooled indoor unit designed for close-coupled precision cooling in high-density IT environments. Installed directly in the rack row, it uses a chilled-water/glycol coil for efficient heat rejection and integrates with APC facility monitoring. This unit ships brand new from APC/Schneider Electric with full manufacturer warranty and support.
| Category | Detail |
|---|---|
| Capacity | Row-based fluid-cooled precision cooling; nominal sensible capacity per ACRD200 datasheet (configuration-dependent) |
| Power Input | 208โ230 V, 60 Hz (controls/fans); electrical MCA/MOP per unit nameplate |
| Refrigerant | No DX refrigerant circuit โ uses chilled-water/glycol coil; fluid temp/flow per design submittal |
| Airflow | High-efficiency EC fans; variable-speed; front-to-back airflow for in-row deployment |
| Controls & Monitoring | Uniflair controller with local HMI; alarms; BMS integration options (e.g., Modbus); compatible with APC monitoring |
| Physical | InRow cabinet, 300 mm (โ11.8โณ) width; nominal 42U height; exact dimensions/weight per mechanical drawing |
| Environment | Indoor IT environment; operating limits (ambient, humidity, altitude) per datasheet; condensate management provided |
| Accessory | Model | Notes |
|---|---|---|
| Chilled-Water/Glycol Piping Kit | ACRD-CWKIT | Field connection kit; valves/strainers as specified; sized per flow & ฮT |
| Leak Detection | Uniflair LD kit | Optional tray/spot/leak rope sensors with alarm integration |
