$19,491.25
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 200/240 V | N/A | N/A | 43.1 | 11.8" | 78.4 | 364 lbs |
| Voltage | 200/240 V |
| WPC | N/A |
| Amp/H | N/A |
| Length | 43.1 |
| Width | 11.8" |
| Height | 78.4 |
| Weight | 364 lbs |

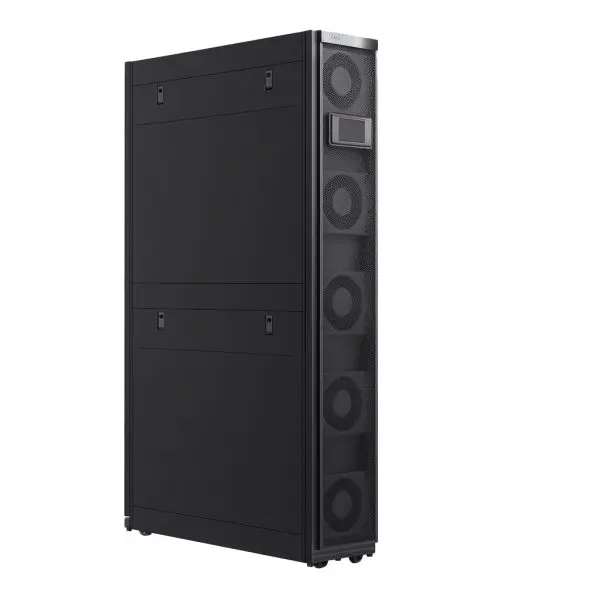

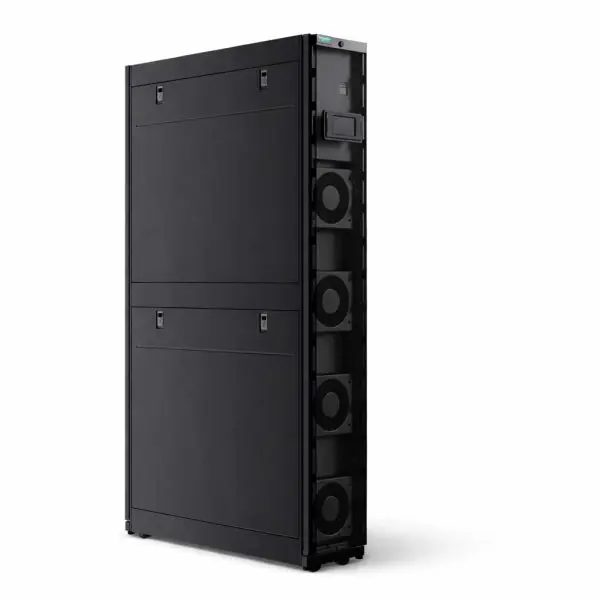

The APC ACRD101P InRow DX 300mm Indoor Unit is a factory-new Schneider Electric Uniflair precision cooling unit for IT environments. Its narrow cabinet installs directly in the rack row, delivering conditioned air close to the equipment. The direct-expansion system pairs with a compatible APC outdoor condenser for heat rejection.
| Technical Specifications | Detail |
|---|---|
| Manufacturer | APC / Schneider Electric |
| Model | ACRD101P |
| Product Type | Uniflair InRow DX 300mm Indoor Unit for rack-row precision cooling |
| Condition | Factory new |
| Cooling Capacity | See the ACRD101P datasheet for nominal capacity by configuration and operating conditions. |
| Power Input | 200–240 V, 50/60 Hz. See the unit nameplate for phase, minimum circuit ampacity (MCA), and maximum overcurrent protection (MOP). |
| Refrigerant | R-410A direct-expansion circuit. See the unit documentation for charge requirements. |
| Airflow | Variable-speed EC fans with front-to-back airflow |
| Controls & Monitoring | Integrated controller with local display, alarms, APC monitoring compatibility, and building management integration options such as Modbus |
| Cabinet | 300 mm wide (approximately 11.8 in.), nominal 42U height. See the mechanical drawing for exact dimensions and weight. |
| Installation Environment | Indoor IT spaces. See the datasheet for operating temperature, humidity, and altitude limits. |
| Accessory | Detail |
|---|---|
| Outdoor Condenser | Select a compatible APC ACCD / ACCU series condenser based on the required capacity and site voltage. |
| Leak Detection | Optional Uniflair leak detection kit for rack or row monitoring with alarm integration. |
| Monitoring Gateway | Supports remote monitoring and connectivity to building or energy management systems as required. |
The InRow DX 300mm Indoor Unit requires a compatible APC outdoor condenser and refrigerant piping. Use the unit nameplate and installation documentation to confirm electrical ratings, piping requirements, and condenser compatibility. Professional installation and commissioning are recommended.
