Manufacturer
OEM Part Number
GPS Part Number
Categories
$14.00
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 277 V | N/A | 15 A | 1.7" | 0.8" | 2.5" | 0.20 lb |
| Voltage | 277 V |
| WPC | N/A |
| Amp/H | 15 A |
| Length | 1.7" |
| Width | 0.8" |
| Height | 2.5" |
| Weight | 0.20 lb |

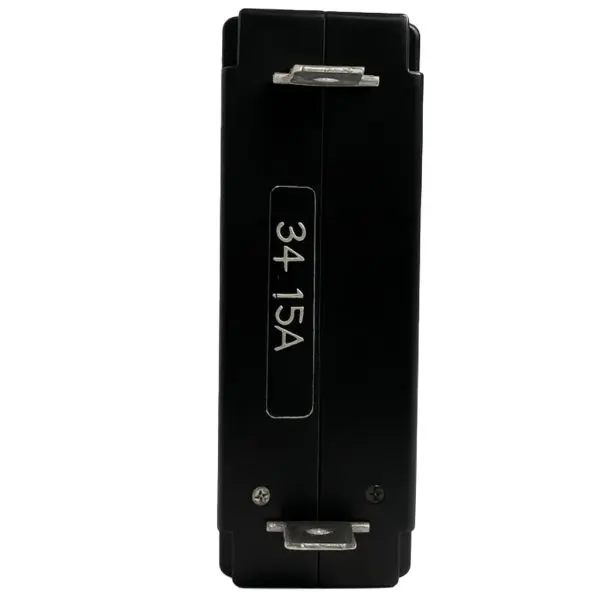

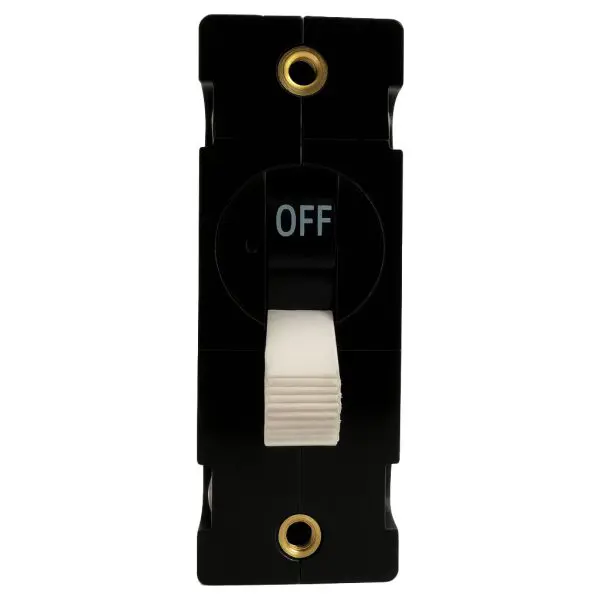

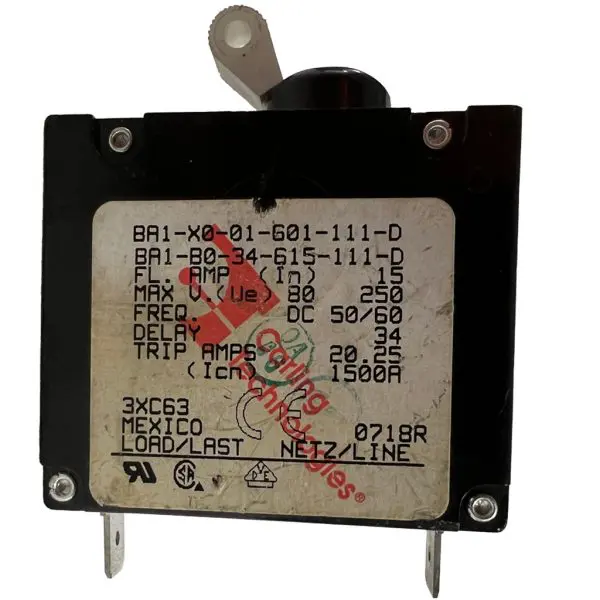

Genuine Carling hydraulic-magnetic circuit breaker. “Delay 34” provides a medium, inverse-time response suitable for high-inrush loads with temperature-stable, trip-free protection.
| Parameter | Detail |
|---|---|
| Manufacturer | Carling Technologies |
| Series / style | C-Series hydraulic-magnetic, panel-mount |
| Poles | 1 pole (single-pole break) |
| Current rating (In) | 15 A |
| Voltage ratings | 277 V AC (50/60 Hz) • 80 V DC |
| Delay curve | Delay 34 — medium inverse-time; holds 100% In and must trip at ≥ 135% In within curve limits |
| Trip technology | Hydraulic-magnetic (temperature-stable; trip-free) |
| Terminations | Screw back-connect (e.g., 10-32) or studs per build code |
| Actuator | Handle / toggle (rocker versions available by code) |
| Mounting | Panel mount; 6-32 threaded inserts (standard C-Series bezel) |
| Dimensions (H × W × D) | 63.5 mm × 19.1 mm × 42.0 mm (2.50 in × 0.8 in × 1.7 in) |
| Weight | 0.20 lb |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL / cUL; IEC/EN 60947-2 or 60934 (per variant; as marked) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, Delay-34 function verified; intact labels; ready to install | 90-Day |
