$77.49
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 415 V | N/A | 17 A | 3" | 2" | 3" | 1 lbs |
| Voltage | 415 V |
| WPC | N/A |
| Amp/H | 17 A |
| Length | 3" |
| Width | 2" |
| Height | 3" |
| Weight | 1 lbs |

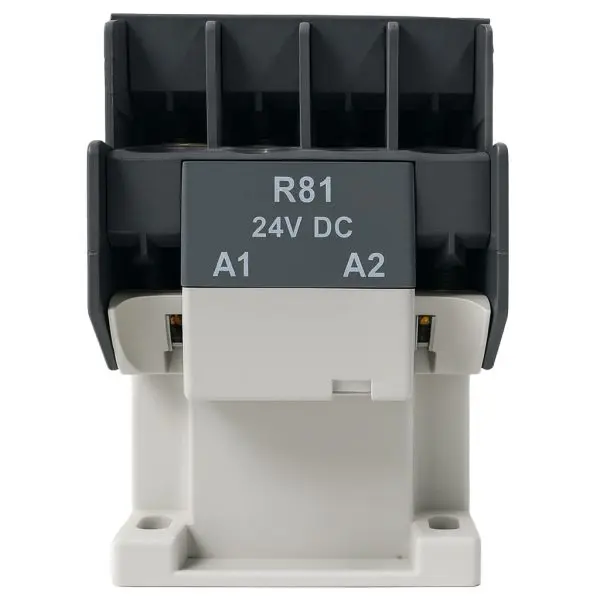

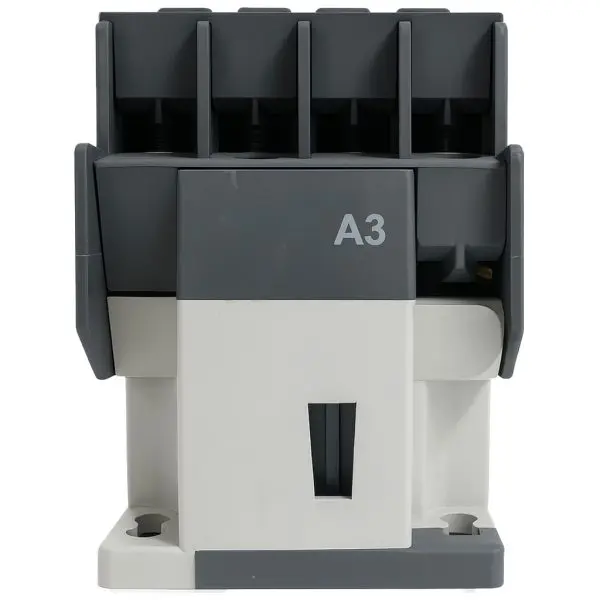

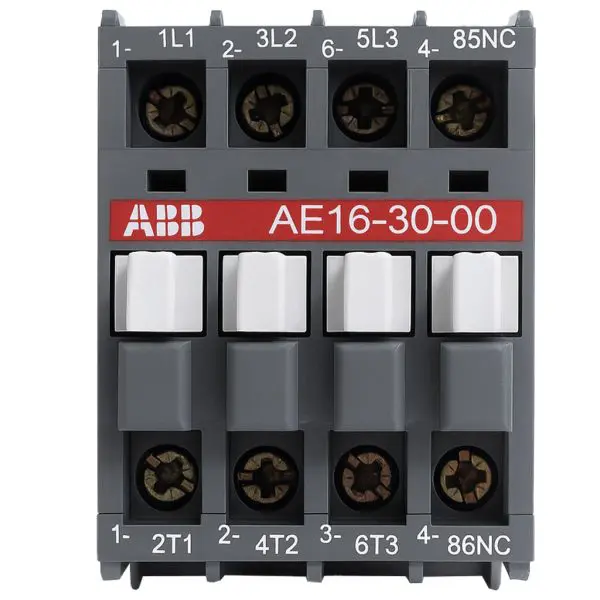

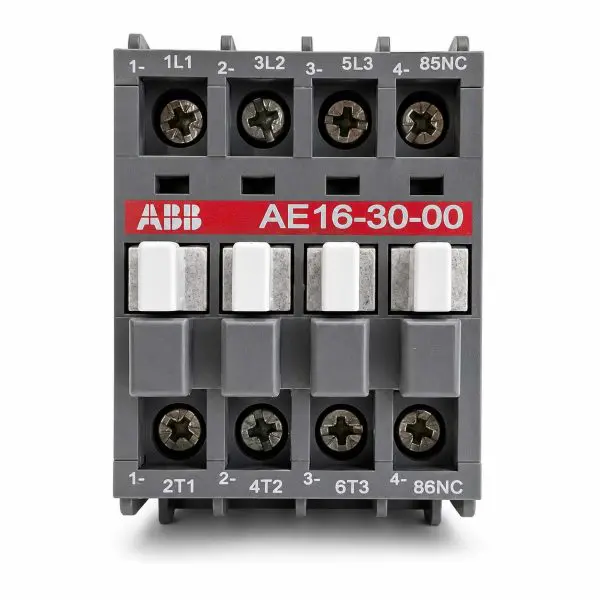

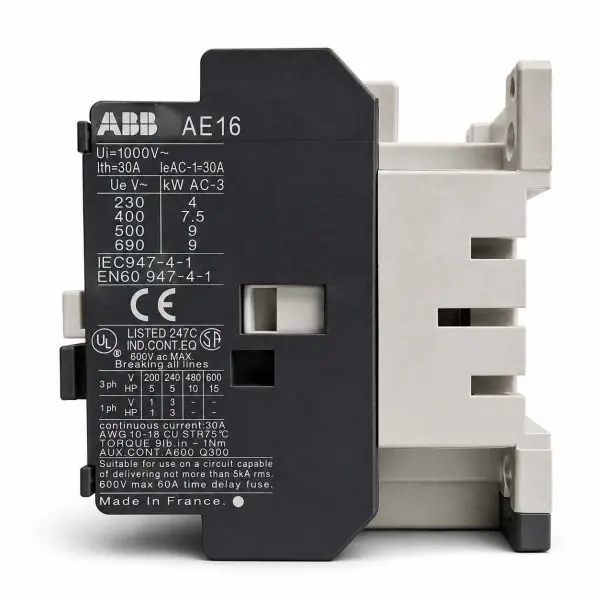

Genuine ABB A-Line contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | AE16-30-00 (“-30” = 3 NO main; “-00” = no aux) |
| Utilization category | AC-3 (motor duty) |
| Rated operational current (Ie) | 17 A (AC-3) @ 400/415 V; AC-1 30 A |
| Rated operational power (Pe) | 7.5 kW @ 400 V; 9 kW @ 415 V (AC-3) |
| Rated operational voltage (Ue) | Up to 690 V AC (Ui 1000 V; Uimp 8 kV) |
| Control circuit (coil) | D.C. operated, double-winding with built-in suppression; common variants: 12 V DC (-80), 24 V DC (-81), 110 V DC (-86), 220 V DC (-88) |
| Poles & auxiliaries | 3 main NO; 0 auxiliary fitted (add-on blocks optional) |
| Terminations | Screw clamp terminals |
| Mounting | 35 mm DIN-rail (EN 50022) or panel mount |
| Dimensions (H × W × D) | 74 mm × 44 mm × 74 mm (2.91 in × 1.73 in × 2.91 in) |
| Weight | 0.34 kg (~0.75 lb) |
| Compliance | IEC 60947-4-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
