$21.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 300 V | 125 A | 3.0" | 1.5" | 3.7" | 0.33 lb |
| Voltage | 300 V |
| Amp/H | 125 A |
| Length | 3.0" |
| Width | 1.5" |
| Height | 3.7" |
| Weight | 0.33 lb |

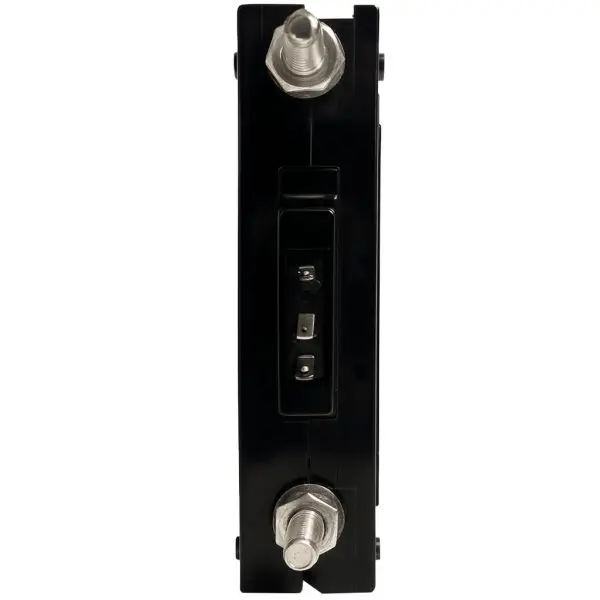

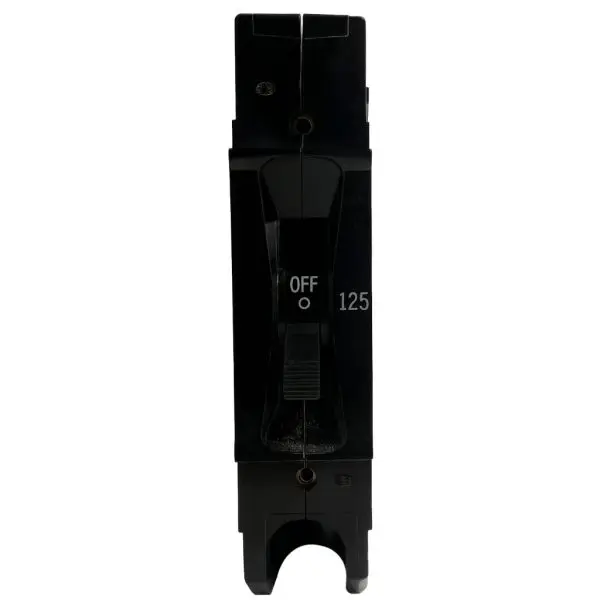

Genuine Carling CX-Series hydraulic-magnetic circuit breaker, cleaned, inspected, and shop-tested. CX is Carling’s high-current platform with magnetic flux-boosting terminals and an enhanced arc-chute for demanding DC service.
| Parameter | Detail |
|---|---|
| Manufacturer | Carling Technologies |
| Series / style | CX-Series hydraulic-magnetic (UL 489 branch circuit) |
| Poles | 1 pole (single-pole break) |
| Current rating (In) | 125 A |
| Rated voltage (UL 489) | 300 V DC (1-pole, 76–125 A category) |
| Interrupting capacity (UL 489) | 3,000 A @ 300 V DC (1-pole, 76–125 A) |
| Trip technology | Hydraulic-magnetic (inverse-time; temperature-stable; trip-free) |
| Actuator | Handle / toggle (CX family) |
| Terminations | Stud terminals (required for >50 A; screw terminals limited to ≤50 A) |
| Mounting | Panel mount; terminal barrier as specified for high-amp builds |
| Dimensions (H × W × D) | 93.27 mm × 38.48 mm × 74.83 mm (3.7 in × 1.5 in × 3.0 in) — stud-terminal body |
| Weight | ≈ 0.33 lb (≈ 150 g) |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL 489 Listed; TÜV IEC/EN 60947-2 (per device markings/configuration) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, stud terminals verified, handle action checked, functional trip confirmed; ready to install | 90-Day |
