$49.50
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Voltage | N/A |
| WPC | N/A |
| Amp/H | N/A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | N/A |
Genuine ABB A-Line contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |

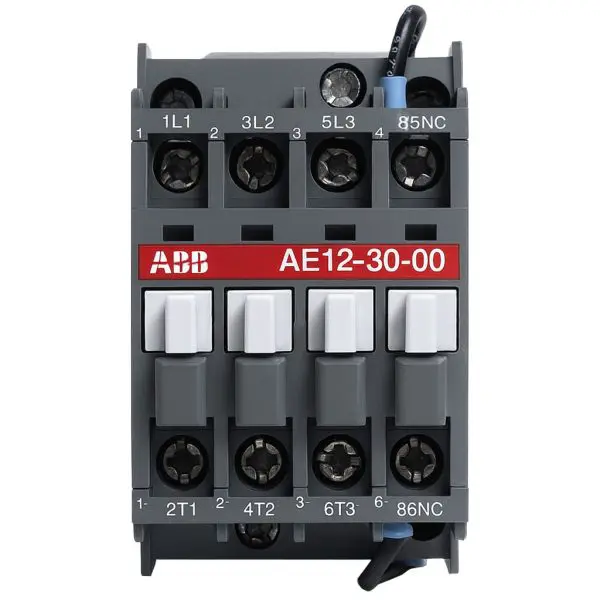

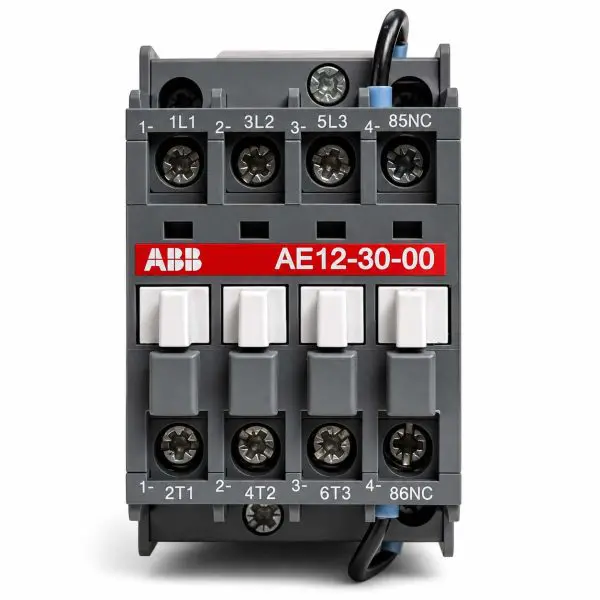

| Part number | AE12-30-00 (“-30” = 3 NO main; “-00” = no aux contacts) |
| Utilization category | AC-3 (motor duty) |
| Rated operational current (Ie) | 12 A (AC-3) @ 400/415 V (AC-1 ~27 A) |
| Rated operational power (Pe) | Up to 5.5 kW @ 400/415 V (AC-3) (typ. up to ~7.5 kW @ 690 V) |
| Rated operational voltage (Ue) | Up to 690 V AC |

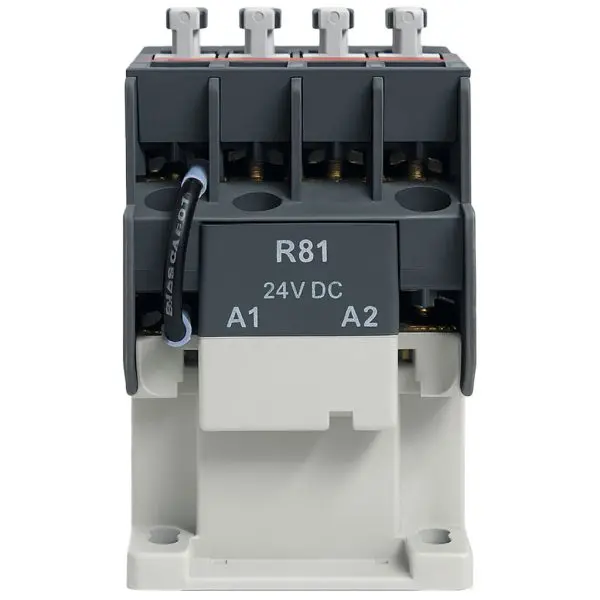

| Control circuit (coil) | DC electronic coil; common variant: 24 V DC (code “-81”). Other voltages available. |
| Poles & auxiliaries | 3 main NO; 0 auxiliary fitted (add-on blocks optional) |
| Terminations | Screw clamp terminals |

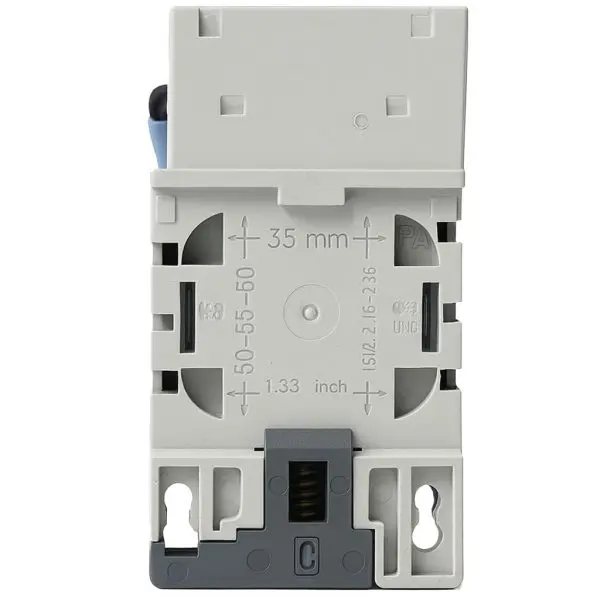

| Mounting | 35 mm DIN-rail (EN 50022) or panel mount |
| Dimensions (H × W × D) | 74 mm × 44 mm × 74 mm (2.91 in × 1.73 in × 2.91 in) |
| Weight | 0.34 kg (~0.75 lb) |
| Compliance | IEC 60947-4-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
