Manufacturer
OEM Part Number
GPS Part Number
Categories
Tags
$48.57
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 690 V | N/A | 16 A | 2.8" | 0.6" | 2.7" | 1 lbs |
| Voltage | 690 V |
| WPC | N/A |
| Amp/H | 16 A |
| Length | 2.8" |
| Width | 0.6" |
| Height | 2.7" |
| Weight | 1 lbs |

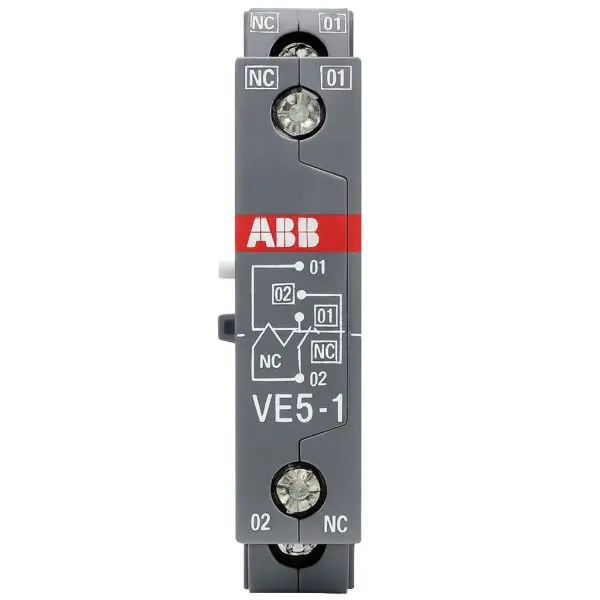

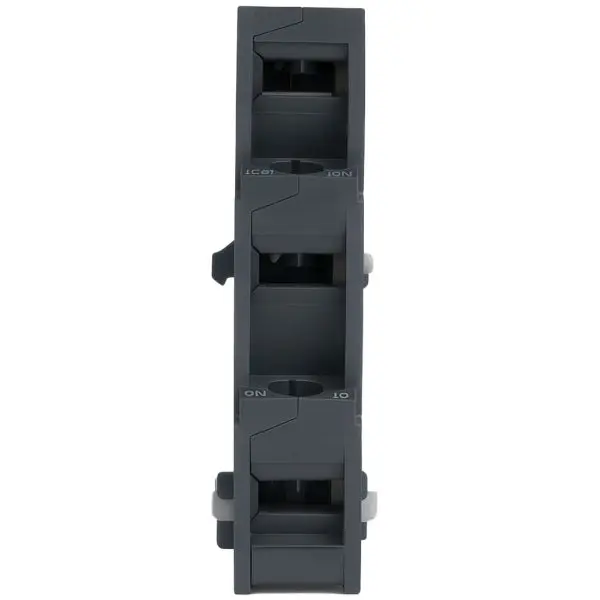

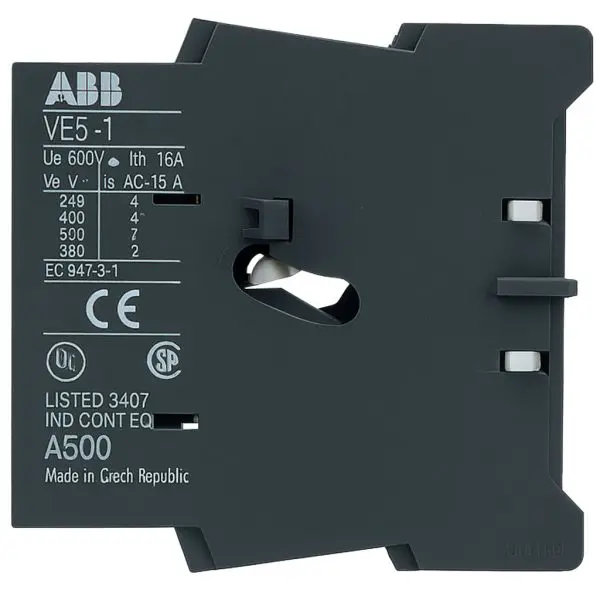

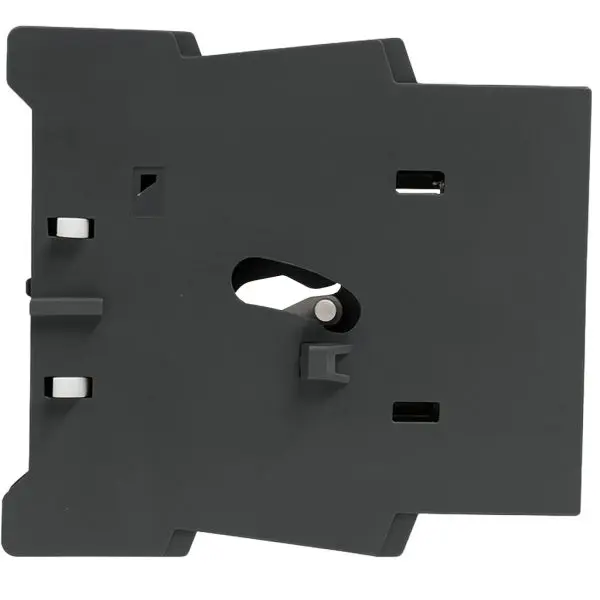

Mechanical and electrical interlock unit for two A-line contactors (reversing, changeover, star-delta starters). Includes 2 built-in N.C. interlocking contacts for coil interlock wiring.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Product ID / EAN | 1SBN030110R1000 • 3471522121370 |
| Function | Mechanical & electrical interlock unit (2 N.C. interlocking contacts) |
| For use with | A9…A40, AL9…AL40, TAL9…TAL40, AX06…AX40 contactors (horizontal pairing) |
| Rated operational voltage (aux circuit) | 690 V (50/60 Hz) |
| Rated insulation voltage (Ui) | 690 V (IEC) • 600 V (UL/CSA) |
| Conventional free-air thermal current (Ith) | 16 A (θ = 40 °C) |
| AC-15 (Ie) | 6 A @ 24/127 V • 4 A @ 220/240 V • 3 A @ 380/400 V • 2 A @ 500 V • 2 A @ 690 V |
| DC-13 (Ie) | 6 A @ 24 V • 2.8 A @ 48 V • 1 A @ 72 V • 0.55 A @ 125 V • 0.3 A @ 250 V |
| Short-circuit protection (aux) | gG fuses 10 A |
| Terminals / IP rating | Screw terminals • IP20 (aux terminals) |
| Mechanical durability | 5 million operations |
| Power loss | 0.1 W per pole (at rated conditions) |
| Mounting | Rail or plate (not supplied); for two horizontally mounted contactors |
| Dimensions (H × W × D) | 68 mm × 15 mm × 70 mm (2.68 in × 0.59 in × 2.76 in) |
| Weight | 0.076 kg (≈ 0.17 lb) |
| Standards / approvals | IEC/EN 60947-5-1 • UL 60947-1 • UL 60947-5-1 • CSA C22.2 (as listed) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
