$647.87
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 380 – 690 V | N/A | 145 A | 7" | 5" | 8" | 8 lbs |
| Voltage | 380 – 690 V |
| WPC | N/A |
| Amp/H | 145 A |
| Length | 7" |
| Width | 5" |
| Height | 8" |
| Weight | 8 lbs |

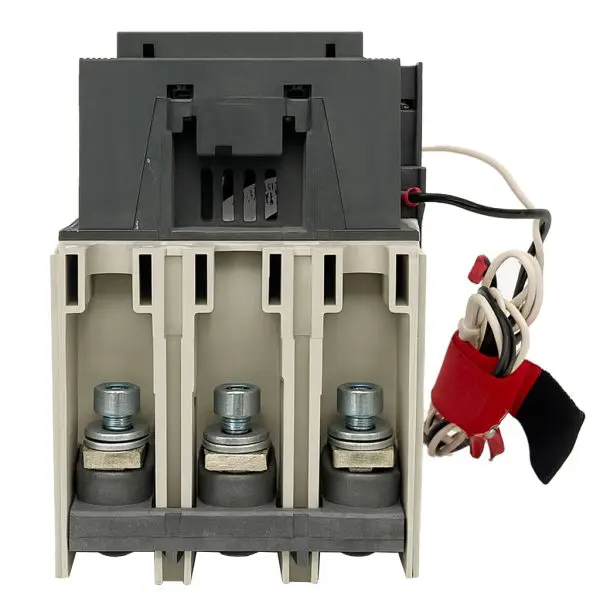

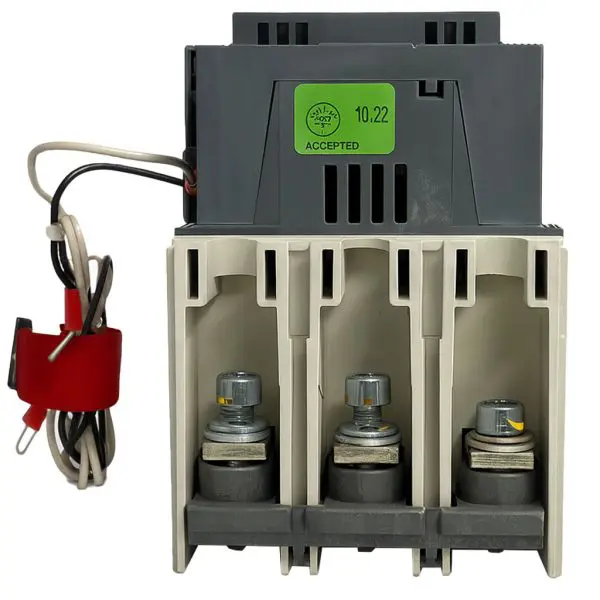

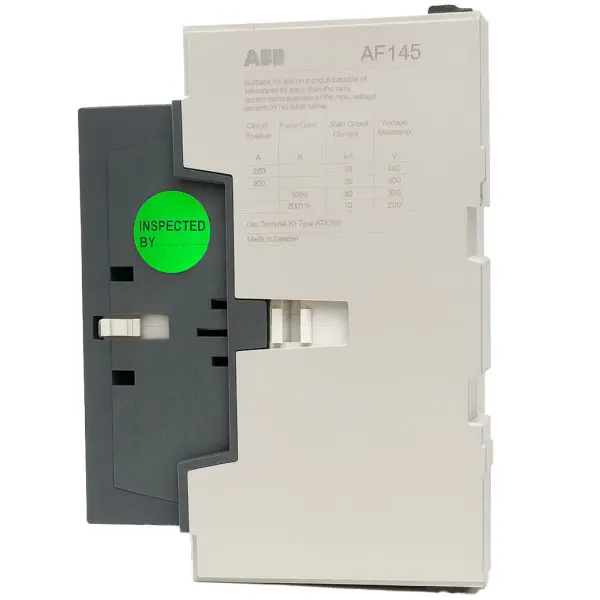

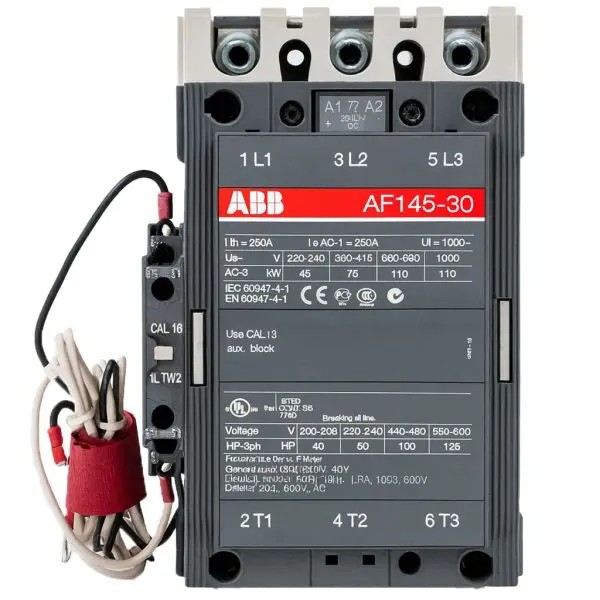

Genuine ABB AF-series contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | AF145-30 (“-30” = 3 NO main; aux by suffix: “-00” none, “-10” 1 NO, “-01” 1 NC, “-11” 1 NO + 1 NC) |
| Utilization category | AC-3 (motor duty) |
| Rated operational current (Ie) | 145 A (AC-3) @ 220–500 V; 120 A (AC-3) @ 690 V |
| Rated operational power (Pe) | AC-3: 45 kW @ 220/230/240 V • 75 kW @ 380/400/415/440 V • 90 kW @ 500 V • 110 kW @ 690 V |
| Rated operational voltage (Ue) | Up to 690 V AC (Ui 1000 V; Uimp 8 kV) |
| Control circuit (coil) | Wide-range electronic coil; common variants: 20–60 V DC (code “-72”), 100–250 V AC/DC (code “-70/-11”) |
| Poles & auxiliaries | 3 main NO; auxiliaries per suffix (see above) |
| Terminations | Main terminals: bars; coil terminals IP20 |
| Mounting | Panel mount (AF145 frame) |
| Dimensions (H × W × D) | 196 mm × 111.5 mm × 160 mm (7.72 in × 4.39 in × 6.30 in) |
| Weight | 3.4 kg (~7.50 lb) |
| Compliance | IEC 60947-4-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
