$123.26
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 600 A | 5.5" | 8.25" | 11" | 22 lbs |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 600 A |
| Length | 5.5" |
| Width | 8.25" |
| Height | 11" |
| Weight | 22 lbs |

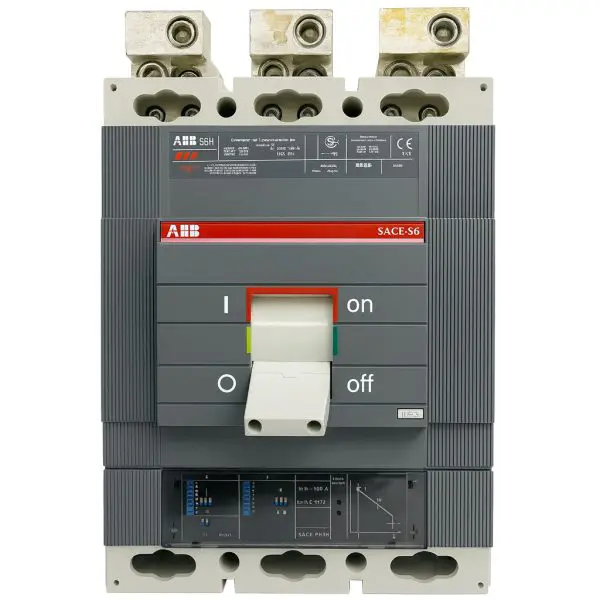

Genuine ABB SACE Isomax S6H breaker professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model / family | SACE Isomax S6H • 3-Pole • Code M-1113 |
| Frame / rated current (In) | 600 A frame • 600 A trip (typical S6H configuration) |
| Rated operational voltage (Ue) | 600 V AC • 500 V DC (per S6 family) |
| Interrupting / breaking capacity | 65 kA @ 480 V AC • 65 kA @ 415 V AC (H-rating) |
| Trip unit type | Thermal-magnetic, non-interchangeable • LI (Long-time & Instantaneous) |
| Poles | 3 Poles |

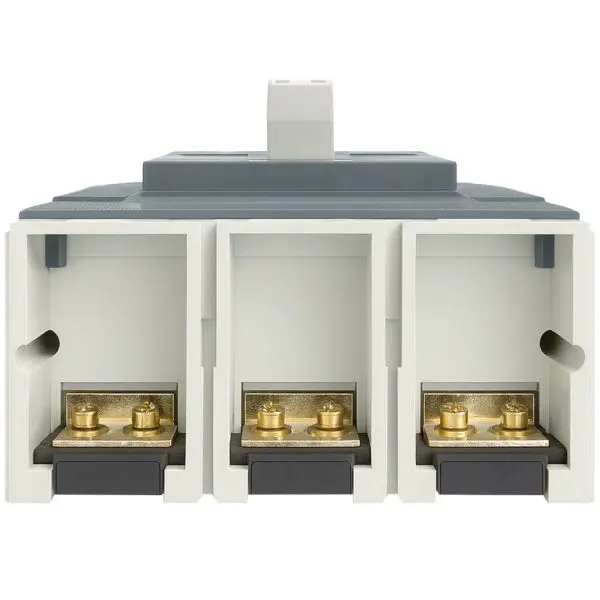

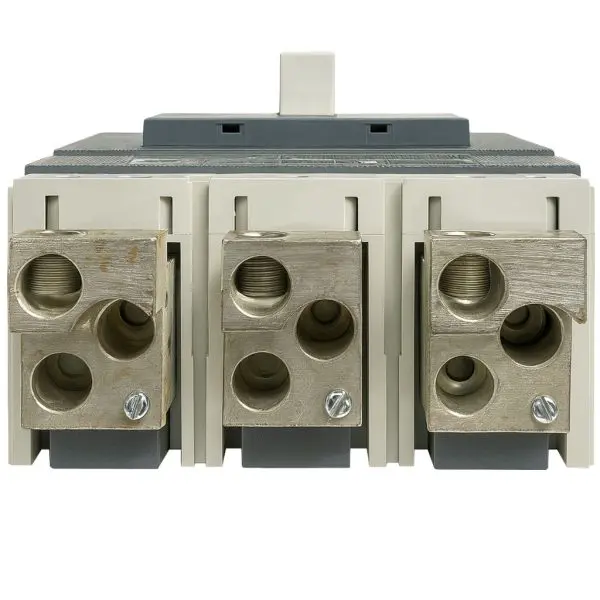

| Terminations | Bolt-On; load-side lug terminals (common) |
| Mounting | Fixed, panel/switchgear; suitable for reverse feed (per listings) |
| Dimensions (H × W × D) | ≈ 279 mm × 210 mm × 140 mm (≈ 11.0 in × 8.25 in × 5.5 in) |
| Weight | ≈ 10 kg (≈ 22 lb) |
| Standards / approvals | IEC 60947-2; UL 489 / CSA C22.2 (as marked, per variant) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
