$348.75
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 415 – 690 V | N/A | 145 A | 6" | 4" | 5" | 4 lbs |
| Voltage | 415 – 690 V |
| WPC | N/A |
| Amp/H | 145 A |
| Length | 6" |
| Width | 4" |
| Height | 5" |
| Weight | 4 lbs |

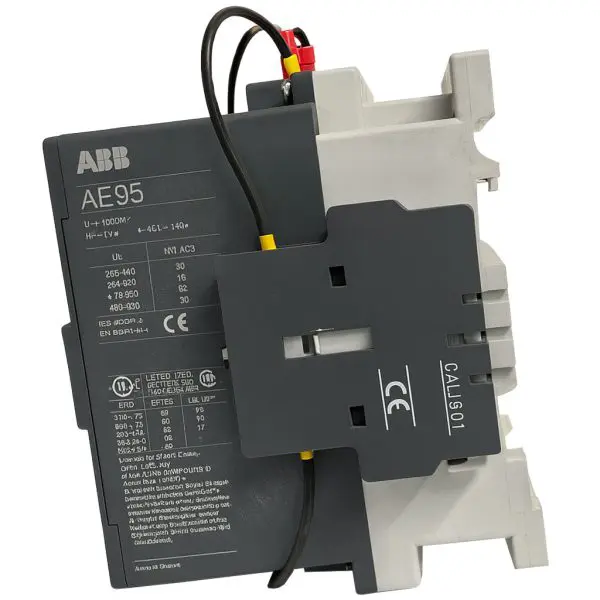

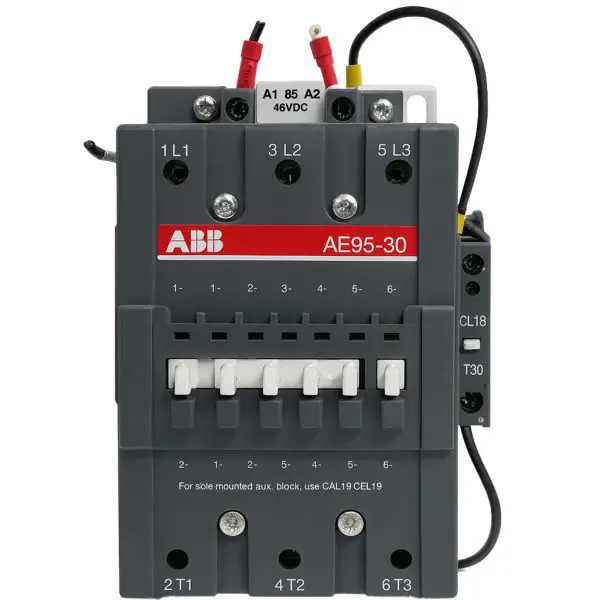

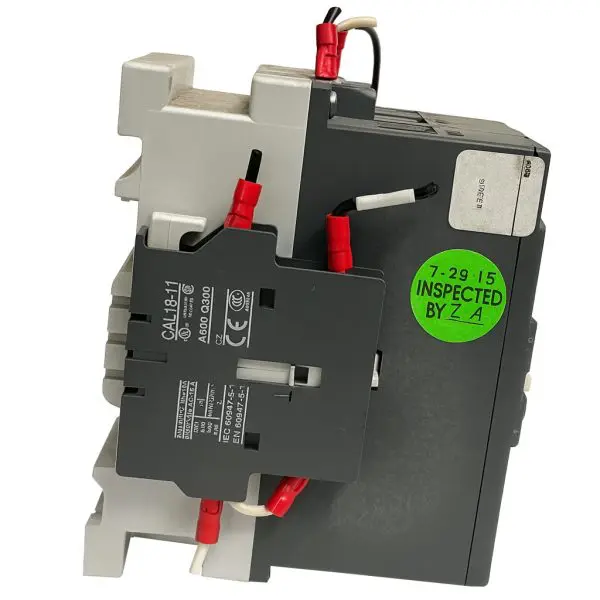

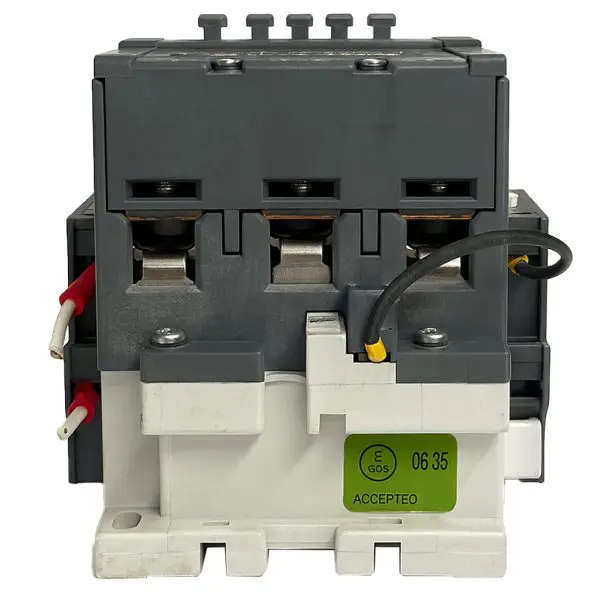

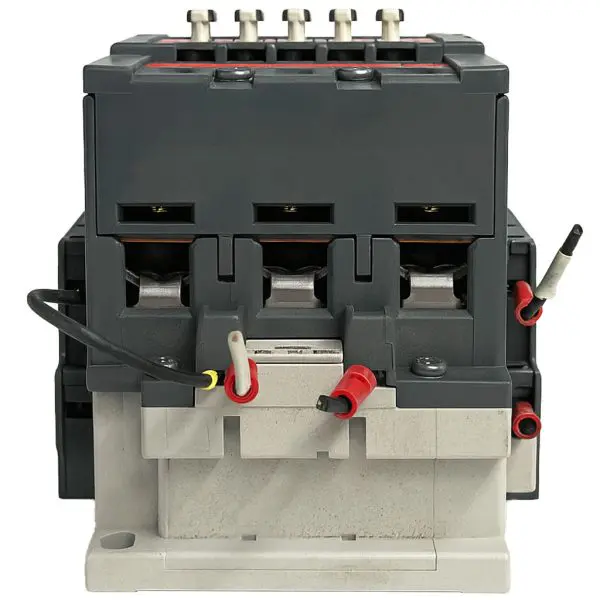

Genuine ABB AE-series contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | AE95-30 (“-30” = 3 NO main; aux by suffix: “-00” none, “-10” 1 NO, “-01” 1 NC, “-11” 1 NO + 1 NC) |
| Utilization category | AC-3 (motor duty) |
| Rated operational current (Ie) | Frame Ith 145 A (40 °C); UL general-use 125 A @ 600 V; AC-3 per power table below |
| Rated operational power (Pe) | AC-3: 25 kW @ 220/230/240 V • 45 kW @ 380/400 V • 55 kW @ 415/440/500/690 V • 40 kW @ 1000 V |
| Rated operational voltage (Ue) | Up to 1000 V AC (Ui 1000 V; Uimp 8 kV) |
| Control circuit (coil) | DC operated, double-winding with built-in suppression; common variants include 24 V DC (-81), 110 V DC (-86), 125 V DC (-87), 220 V DC (-88) |
| Poles & auxiliaries | 3 main NO; auxiliaries per suffix (see above) |
| Terminations | Main terminals M8 hex-socket screw (cable clamp); aux terminals IP20 finger-safe |
| Mounting | Panel mount (A95/AE95 frame) |
| Dimensions (H × W × D) | 148 mm × 102 mm × 123.5 mm (5.83 in × 4.02 in × 4.86 in) |
| Weight | ≈ 1.8 kg (~4.0 lb) |
| Compliance | IEC 60947-4-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
