$396.85
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 170 A | 6.5" | 7" | 8" | 10 lbs |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 170 A |
| Length | 6.5" |
| Width | 7" |
| Height | 8" |
| Weight | 10 lbs |

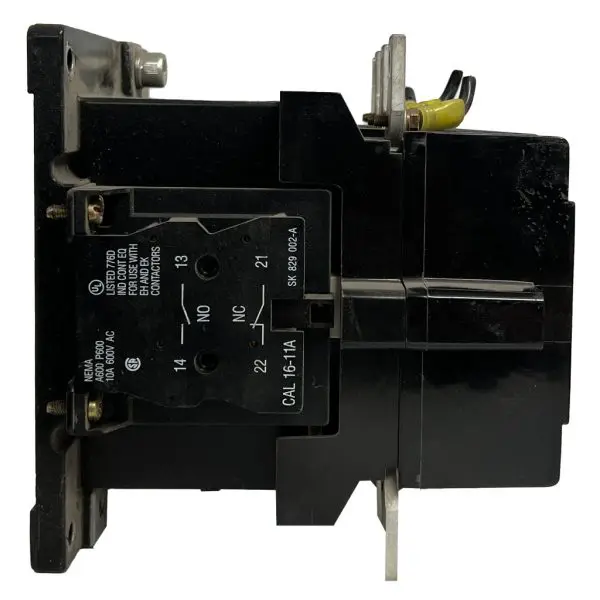

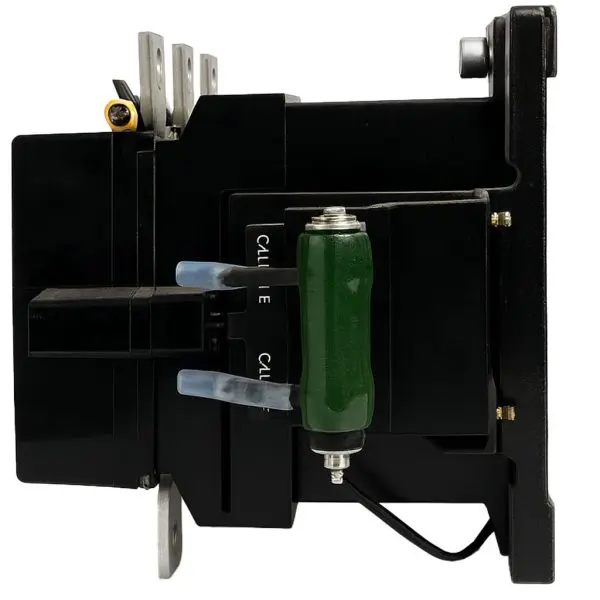

Genuine ABB EK-series 4-pole contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |

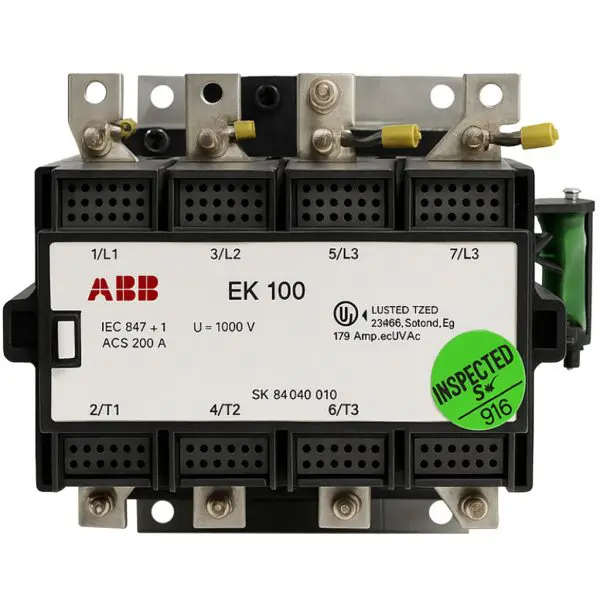

| Part number | EK100 (4-pole, 4 NO main) |
| Utilization category | IEC contactor duty (distribution / general switching) |
| Rated operational current (Ie) | 170 A @ up to 600 V AC |
| Rated operational power (Pe) | N/A — 4-pole distribution (no AC-3 motor kW table) |
| Rated operational voltage (Ue) | Up to 600 V AC; Rated insulation Ui 1000 V |
| Control circuit (coil) | 24 V DC (coil code SK-825-100-DB) |

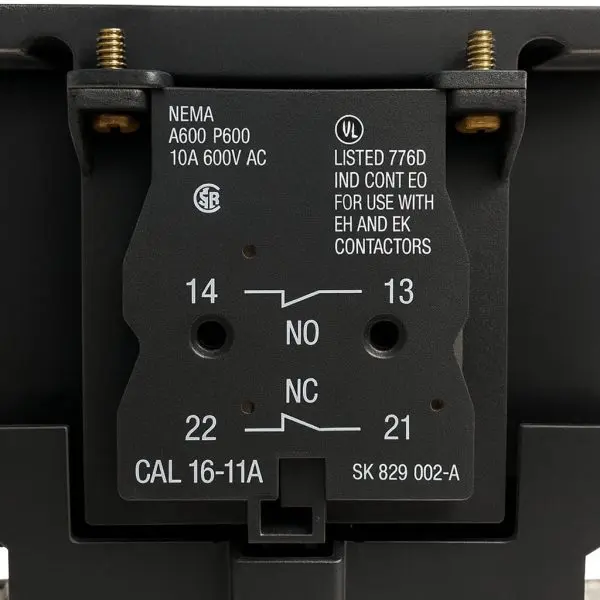

| Poles & auxiliaries | 4 main NO; add-on aux blocks optional |
| Terminations | Screw / lug terminals (per build) |
| Mounting | Panel mount |
| Dimensions (H × W × D) | ≈ 203 mm × 178 mm × 165 mm (≈ 8.0 in × 7.0 in × 6.5 in) |
| Weight | ≈ 4.5 kg (~9.98 lb) |
| Compliance | IEC 60947-4-1 (IEC 947-4-1 on older labels); UL up to 600 V |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
