$1,492.29
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 305 A | 20.4" | 12" | 19.1" | 30 lbs |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 305 A |
| Length | 20.4" |
| Width | 12" |
| Height | 19.1" |
| Weight | 30 lbs |

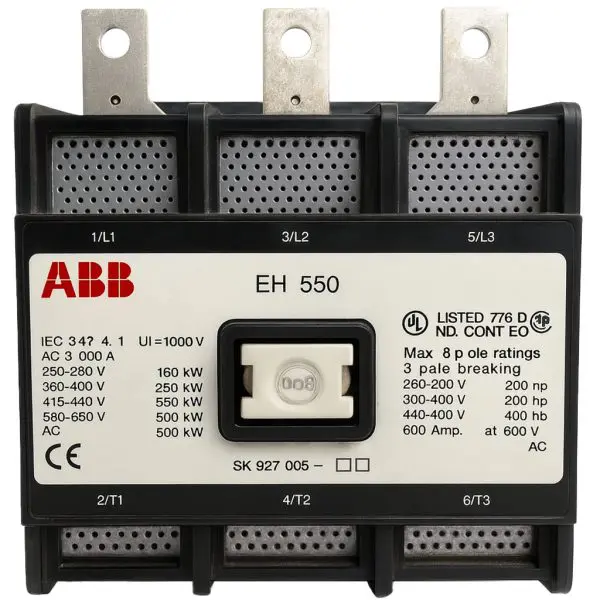

Genuine ABB EH-series contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | EH550 (aux varies by suffix: “-11”=1 NO+1 NC, “-22”=2 NO+2 NC) |
| Utilization category | Motor duty (UL/CSA; IEC) |
| Rated operational current (Ie) | 550 A (3-phase, AC) |
| Rated operational power (Pe) | UL motor HP: 200 HP @ 240 V • 400 HP @ 480 V • 500 HP @ 600 V |
| Rated operational voltage (Ue) | Up to 600 V AC (UL) |
| Control circuit (coil) | Common builds include 120 V AC; DC coils also exist (e.g., SK 827 series) |

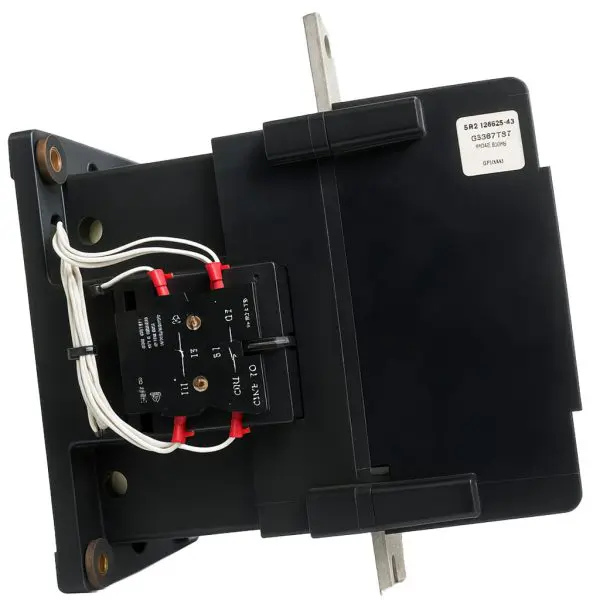

| Poles & auxiliaries | 3 main NO; auxiliaries per suffix (see above) |
| Terminations | Main bar/lug terminals; aux terminals finger-safe |
| Mounting | Panel mount (EH550 frame) |
| Dimensions (H × W × D) | ≈ 486 mm × 295 mm × 519 mm (≈ 19.1 in × 11.6 in × 20.4 in) |
| Weight | ≈ 13.6 kg (~30 lb) |
| Compliance | UL/CSA; IEC 60947-4-1 (series) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
