$171.87
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 690 VAC | N/A | N/A | N/A | N/A | N/A | N/A |
| Voltage | 690 VAC |
| WPC | N/A |
| Amp/H | N/A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | N/A |

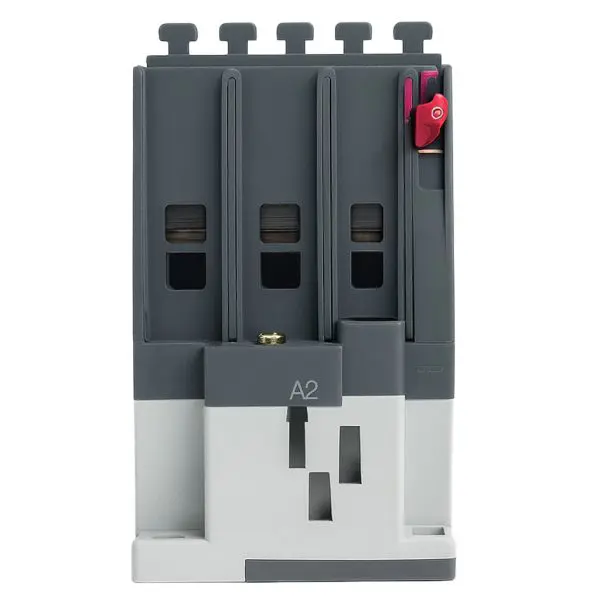

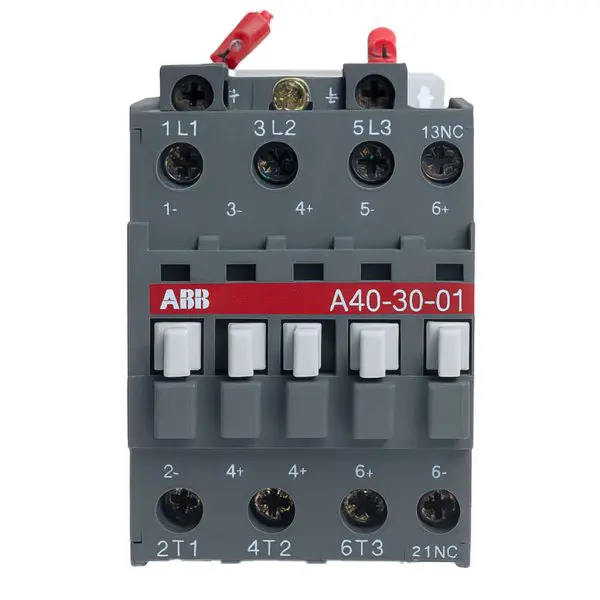

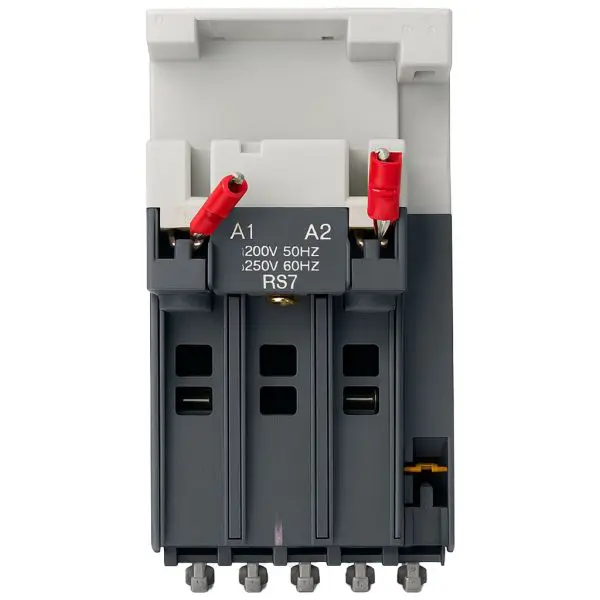

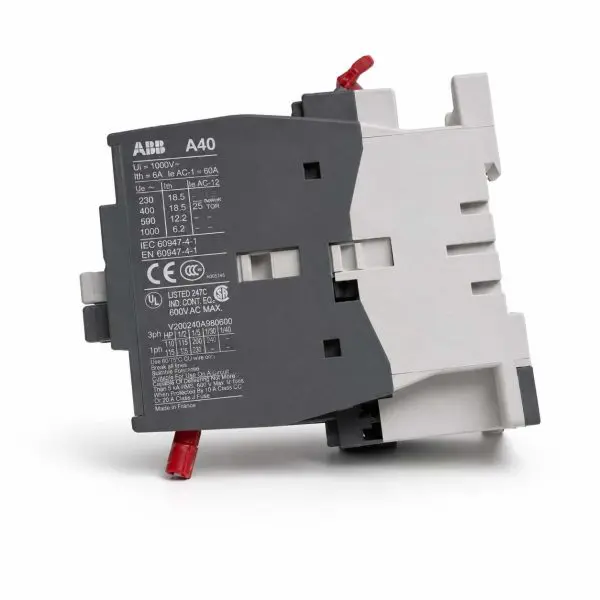

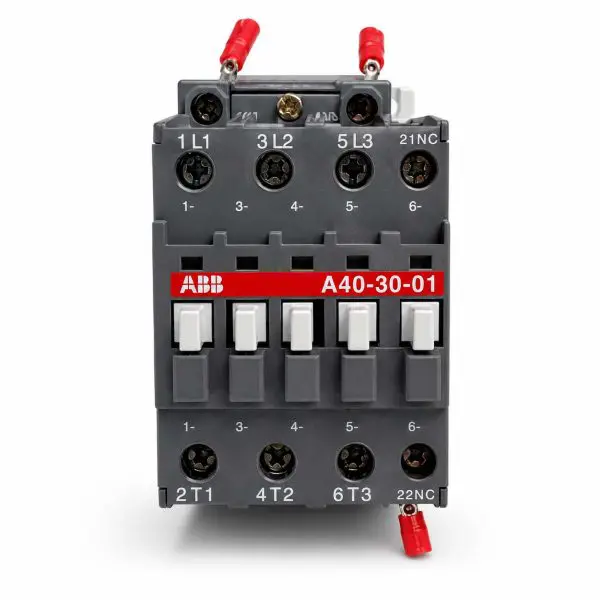

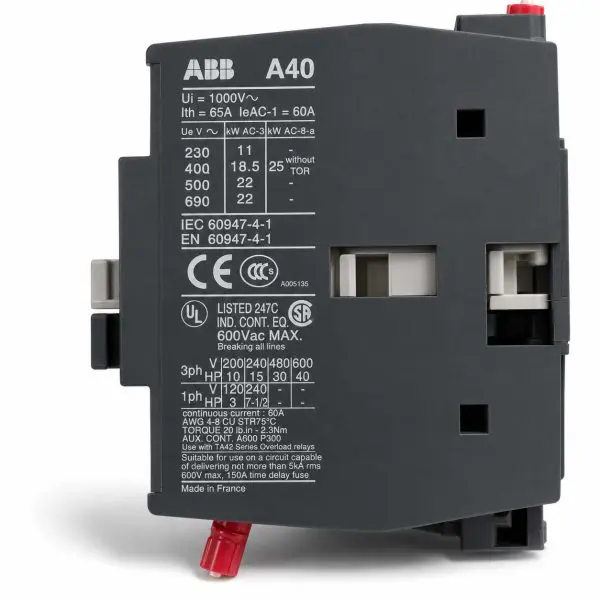

Genuine ABB A40 series IEC contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. Designed for switching motors and high-current industrial loads, it provides a reliable like-for-like replacement for industrial control panels, motor starters, UPS equipment, and other critical power applications where minimizing downtime is essential.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part Number | A40-30-01 (“−01” = 1 NC auxiliary contact) |
| Utilization Category | AC-3 (motor duty) |
| Rated Operational Current (Ie) | 40 A (AC-3) @ 400/415 VAC |
| Rated Operational Power (Pe) | Up to 18.5 kW (25 HP) @ 400/415 VAC (AC-3) |
| Rated Operational Voltage (Ue) | Up to 690 VAC |
| Control Circuit (Coil) | Coil voltage determined by the ABB coil suffix. Verify the coil code on the contactor label before ordering. |
| Poles & Auxiliaries | 3 main NO power poles; 1 NC auxiliary contact |
| Terminations | Screw clamp terminals |
| Mounting | DIN rail or panel mount |
| Dimensions (H × W × D) | Approx. 125 mm × 55 mm × 120 mm (4.92 × 2.17 × 4.72 in) |
| Weight | Approx. 0.9 kg (~2.0 lb) |
| Compliance | IEC 60947-4-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s Included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90-Day |
