Tesla Powerwall 3 – 1807000-20-B – US Expansion Module

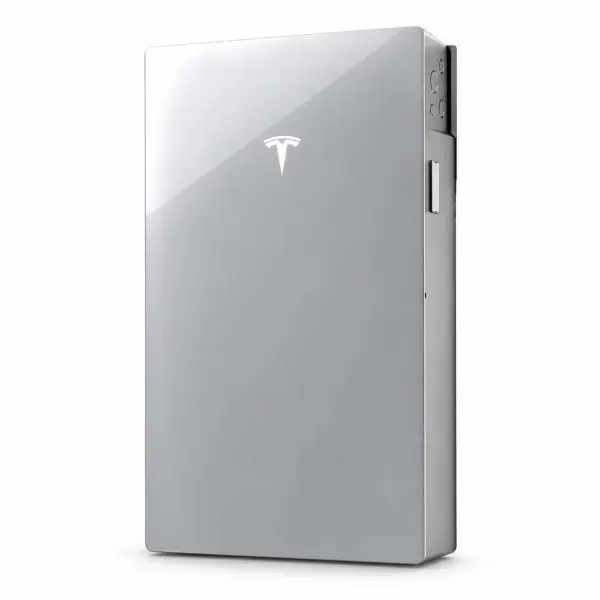

Tesla Powerwall 3 — Expansion Battery Module — USA

Store more energy for overnight use and extended outage protection with the Tesla Powerwall 3 Expansion Battery Module. Part number 1807000-20-B adds 13.5 kWh of nominal battery capacity to a compatible Powerwall 3 system.

The expansion module connects through Tesla’s dedicated Expansion Harness and uses the connected Powerwall 3 inverter. It increases stored energy and potential backup duration without adding a separate inverter or increasing the system’s inverter output rating.

Choose an individual wall-mounted installation or an approved floor-mounted stack behind Powerwall 3. The appropriate mounting kit and Expansion Harness are ordered separately.

Key Features

• 13.5 kWh Added Capacity: Expands the energy available for household use and backup operation.
• Longer Backup Duration: Additional storage helps supported loads run longer during an outage, depending on consumption and available charge.
• Scalable Storage: Supports up to three expansion modules connected to the Leader Powerwall 3.
• Flexible Placement: Wall-mount or floor-stack using the corresponding Tesla installation kit.
• Indoor & Outdoor Rated: NEMA 3R enclosure and IP67 ingress rating.

Typical Applications

• Extending backup duration in compatible Powerwall 3 systems.
• Storing additional solar energy for evening and overnight use.
• Increasing available storage for time-of-use energy management.
• Adding capacity as household energy requirements grow.

Product Details

Installation & Compatibility

This module requires a compatible Powerwall 3 and cannot operate independently or connect directly to Powerwall 2 or Powerwall+. Select the Tesla Wall-Mount Expansion Kit or Stacking Expansion Kit and the correct Expansion Harness for the layout. Installation and commissioning must follow Tesla’s requirements for the equipment revision and site configuration.
