$1,193.78
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 144 Volts | N/A | 6 Ah | 21 | 9.87 | 5.85 | 48 lbs |
| Voltage | 144 Volts |
| WPC | N/A |
| Amp/H | 6 Ah |
| Length | 21 |
| Width | 9.87 |
| Height | 5.85 |
| Weight | 48 lbs |

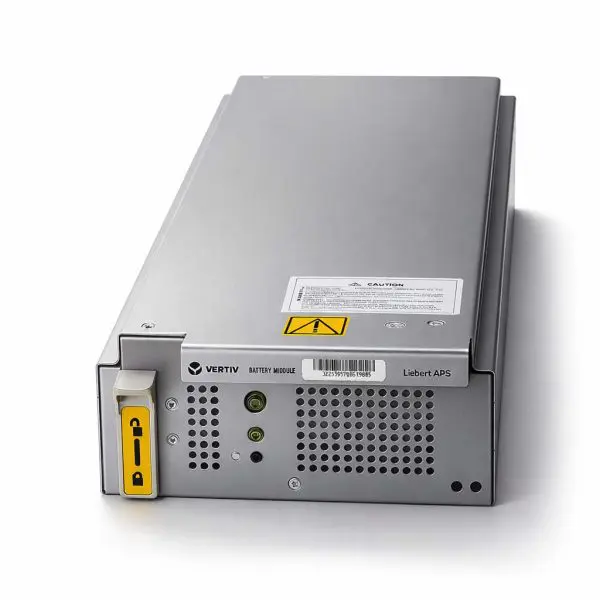

Designed for the modular Liebert APS 5-20 kVA UPS platform, the 554992G1 battery module delivers reliable runtime expansion and fast field serviceability. A pair of modules forms one 144 V DC battery string, sliding directly into the APS frame to add capacity or replace aged strings quickly and efficiently.
This remanufactured battery module case helps keep usable materials out of landfills, making this a planet-friendly purchase that supports repurposing and recycling rather than unnecessary disposal.
Unlike shelf-aged OEM or distributor stock, our battery modules are built to order using fresh, high-quality cells from our high-volume battery pack rebuild operation for strong performance, reliable service life, and maximum value from the moment they arrive.
These modules are improved with larger-capacity batteries, replacing the original 5 Amp-Hour stock cells with upgraded 6 Amp-Hour cells for longer runtime during power outages and improved UPS performance under load.
| Parameter | Specification |
| OEM Part Number | 554992G1 |
| Compatible UPS Frames | Liebert APS AS3, AS4, AS5, and AS6 series, 5-20 kVA |
| Nominal DC Voltage | 144 V DC |
| Upgraded Cell Capacity | 6 Ah sealed lead-acid AGM batteries, replacing original 5 Ah stock cells |
| Capacity Rating | 36 W at 15-minute rate to 1.67 V/cell at 25°C |
| Maximum Charge Current | 1.8 A via power module charger; 10 A with optional charger |
| String Configuration | Two modules in series create one string; strings connect in parallel for additional runtime |
| Hot-Swap Capability | Yes — live insertion and removal while on AC or bypass |
| Typical Module Weight | Approximately 33 lb / 15 kg |
| Shipping Classification | UN2800, wet, non-spillable battery |
This Liebert APS 554992G1 battery module is designed for live modular serviceability, allowing runtime expansion or battery replacement while helping keep protected equipment online.
Backed by a full 1-Year Warranty, our rebuilt Vertiv Liebert APS battery module delivers fresh upgraded battery capacity, dependable runtime, and trusted backup power for professional UPS environments.
