Manufacturer
OEM Part Number
GPS Part Number
Categories
$2,645.00
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| N/A | N/A | N/A | N/A | N/A | N/A | 69 |
| Voltage | N/A |
| WPC | N/A |
| Amp/H | N/A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 69 |

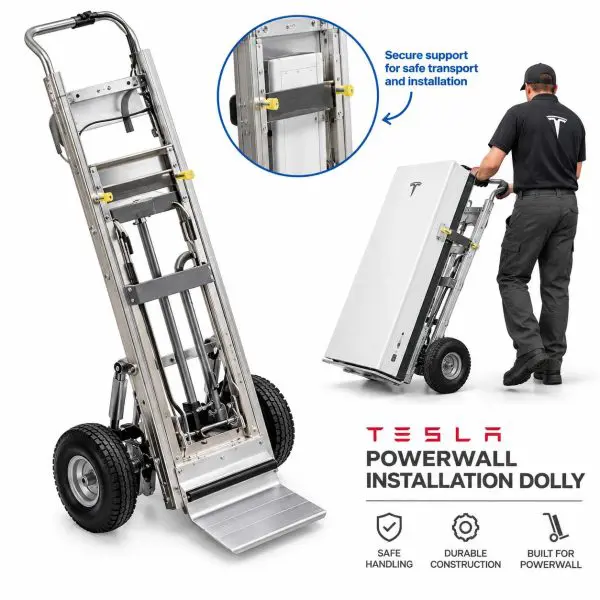

The Tesla Powerwall Lifting Dolly (1856187-00-C) is a purpose-built handling tool designed to lift, transport, and position compatible Tesla Powerwall batteries. It gives professional installers a dedicated way to move equipment to the installation location and align it with the wall-mounting bracket.
A drill-driven lifting screw raises and lowers the support plate, allowing technicians to adjust the battery’s height during mounting. The lifting plate supports Powerwall from underneath, while model-specific attachment hardware secures the unit to the dolly during handling.
Pneumatic tires and hydraulic disc brakes help installers maintain control while moving and positioning the equipment. The dolly combines transportation and height adjustment in one tool, reducing reliance on manual lifting when placing Powerwall onto its mounting bracket.
| Category | Detail |
|---|---|
| Product | Tesla Powerwall Lifting Dolly |
| Tesla Part Number | 1856187-00-C |
| Product Type | Powerwall lifting, transportation, and installation tool |
| Equipment Compatibility | Powerwall 3, Powerwall 2, and Powerwall+ with the correct model-specific attachment hardware |
| Maximum Lift Capacity | 300 lb (136 kg) |
| Maximum Installation Height | 27 inches (686 mm), measured to the base of Powerwall, without the additional dolly platform |
| Lifting Mechanism | Drill-driven lifting screw using a 3/4-inch (19 mm) socket |
| Required Power Tool | 18–20 V battery-powered drill; drill not included. Do not use an impact driver. |
| Brake System | Single-lever-operated dual hydraulic disc brakes |
| Wheel Type | Pneumatic tires |
| Overall Dimensions | 66.5 × 23.3 × 18.1 inches (1690 × 593 × 461 mm) |
| Dolly Weight | 53 lb (24 kg) |
| Intended User | Professional Powerwall installers and trained equipment-handling personnel |
Specifications reflect Tesla’s published ratings for the 1856187 Powerwall Dolly product family. Confirm the supplied accessories and revision-specific operating instructions for P/N 1856187-00-C before ordering or use.
For Powerwall 3, the designated upper and lower handles attach temporarily to the battery and engage with the dolly’s locking plate. For Powerwall 2 and Powerwall+, the specified ratchet strap, protective sleeve, and bumpers provide retention and stabilization. Confirm that the required components are present and suitable for the Powerwall model being handled.
For installations requiring additional elevation, the Tesla Powerwall Dolly Platform can increase the maximum installation height from 27 inches to 39 inches (991 mm), measured to the base of Powerwall. This requires the additional platform and the applicable Tesla operating procedure; the dolly alone does not provide the extended installation height.
Before each use, inspect the dolly frame, tires, brakes, lifting screw, support plate, straps, and attachment hardware. Confirm that the brakes operate correctly and that the lifting mechanism moves smoothly without binding. Follow Tesla’s instructions for drill setup, securing the drill, protective equipment, and controlling the load throughout transportation and mounting.
