Manufacturer
OEM Part Number
GPS Part Number
Categories
$948.25

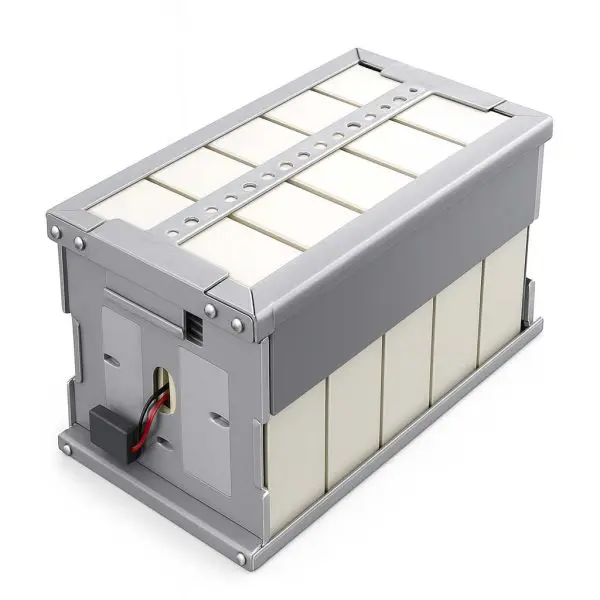

| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 288 Volts | 9 Ah | 19.7" | 5.3" | 8.1" | 72 lbs |
| Voltage | 288 Volts |
| Amp/H | 9 Ah |
| Length | 19.7" |
| Width | 5.3" |
| Height | 8.1" |
| Weight | 72 lbs |
The GXT3-5000RT208 is a true online double-conversion UPS system designed for high‑availability power protection in enterprise‑class applications. With a 5000 VA / 4000 W capacity and 208 V input/output support, it provides scalable runtime, intelligent battery management, and advanced diagnostics—all in a compact 5U rack/tower form factor.
Ideal for server rooms, edge data centers, VoIP systems, network closets, and mission‑critical equipment, this UPS offers zero transfer time during outages, protecting against power interruptions, sags, surges, and frequency fluctuations.
| Category | Detail |
|---|---|
| Power Rating | 5000 VA / 4000 W |
| Topology | Online, Double Conversion |
| Input Voltage | 208 V (L-L), 120/208 V (with transformer) |
| Output Voltage | 208 V (default); Configurable to 120/208 V |
| Form Factor | Rack/Tower Convertible (5U UPS + optional 3U transformer) |
| Battery | Internal hot-swappable battery pack + optional GXT3-240VBATT for extended runtime |
| Runtime (Full Load) | Approx. 4–5 minutes (internal only) |
| Communications | USB, RS-232, SNMP slot, dry contacts |
| Dimensions (UPS Only) | 8.7″ H × 17.2″ W × 26.6″ D |
| Weight | Approx. 107 lbs (UPS only) |
| Battery Pack | Part Number | Description |
|---|---|---|
| GXT3-240VBATT | GXT3-240VBATT | Tall 3U external battery cabinet for extended runtime |
| GXT3-240VBATT2U | GXT3-240VBATT2U | Shorter 2U external battery cabinet, same voltage (240 VDC) |
