$452.13
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 120 Volts | 6 Ah | 15" | 8" | 4.6" | 35 lbs |
| Voltage | 120 Volts |
| Amp/H | 6 Ah |
| Length | 15" |
| Width | 8" |
| Height | 4.6" |
| Weight | 35 lbs |

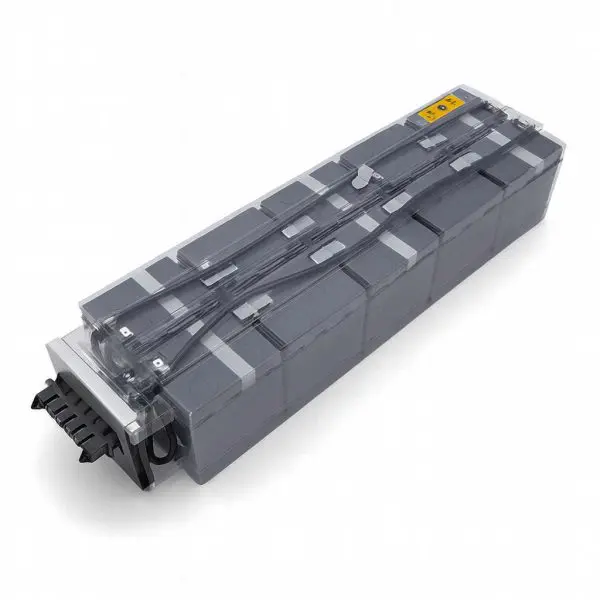

Replacement battery module assembled from (10) 12 V, 6 Ah sealed AGM (VRLA) cells inside a molded hot-swappable enclosure. Designed to restore full runtime in Eaton BladeUPS battery enclosures or internal battery bays.

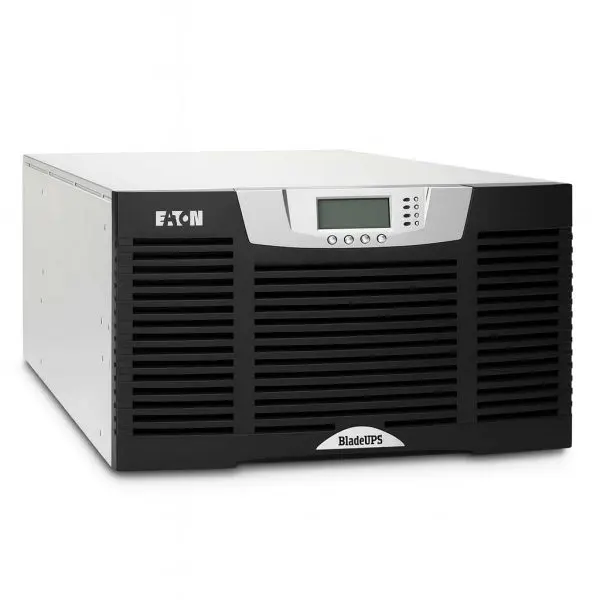

Built for the Eaton BladeUPS system. This module ships pre-wired with fresh 6 Ah cells for immediate drop-in installation and fast replacement in live systems.
These are hot-swappable BladeUPS battery cartridges. They slide directly into UPS or EBM trays and auto-connect to the bus without wiring.
| Parameter | Detail |
| Pack Voltage | 120 VDC per module |
| Capacity (per cell) | 12 V, 6 Ah, AGM (VRLA) |
| Battery Count | 10 cells per module (single 120 V string) |
| Terminal Type | Factory pre-wired internal bus connectors |
| Battery Chemistry | Sealed Lead-Acid (AGM / VRLA); hot-swappable |
| Installation | Toolless slide-in replacement; plug-and-play |
| Battery Module | Compatible Eaton UPS Models (Representative) | Notes |
| 103005977-5591 | BladeUPS 208V Systems BladeUPS Battery Enclosures (internal and external) |
Used in all BladeUPS frames and EBMs. Auto-connects to power bus on insertion. Not compatible with 9PX/9PXM series. |
