$22.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 24 V | N/A | 3.15" | 0.98" | 3.15" | 0.07 lbs |
| Voltage | 24 V |
| Amp/H | N/A |
| Length | 3.15" |
| Width | 0.98" |
| Height | 3.15" |
| Weight | 0.07 lbs |

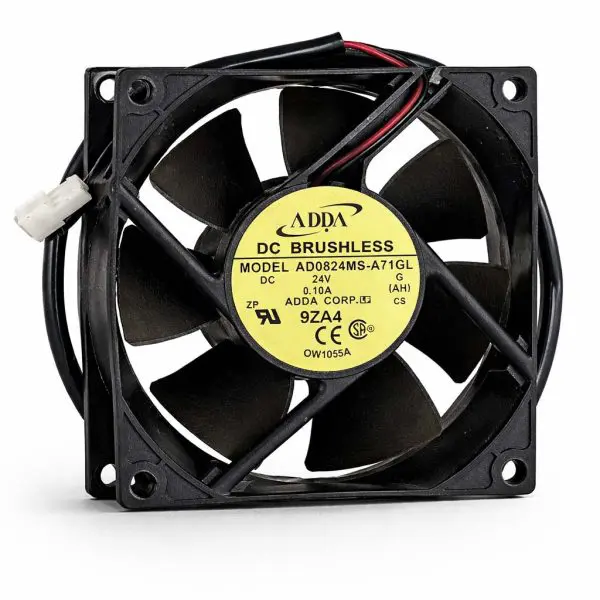

OEM-style axial fan from ADDA, model AD0824MS-A71GL, commonly used in UPS, inverter, and industrial electronics for localized chassis cooling. Direct-fit drop-in replacement where this 80 mm 24 V DC fan is specified.
This 80 × 80 × 25 mm medium-speed DC fan is designed for continuous duty, providing dependable airflow and static pressure to keep power components within their optimal operating temperature range.
Suitable for UPS, inverter, and power-conversion assemblies specifying ADDA AD0824MS-A71GL or equivalent 80 mm 24 V DC fans. Two-wire lead configuration and standard square frame simplify field replacement.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine ADDA AD0824MS-A71GL fan — factory-fresh stock; covered by the full manufacturer or Gruber-backed replacement warranty. |
1-Year
|
| Tested | Operationally verified pull from a functioning system; rotation and noise checked, current draw monitored; fan cleaned and leads inspected. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |
| AD0824MS-A71GL | 80 × 80 × 25 mm (≈ 3.15 × 3.15 × 0.98 in) | 24 V DC | ≈ 31.4 CFM (typical, medium-speed) | 2-wire lead (red/black) | UPS / inverter / electronics cooling |
| Part # | Compatible Models | Notes |
| AD0824MS-A71GL | UPS, inverter, and industrial electronics that specify ADDA AD0824MS-A71GL or an 80 × 80 × 25 mm 24 V DC axial fan | Verify by exact P/N, frame size, 24 V rating, current, connector style, and mounting pattern before substituting into an OEM assembly. |
