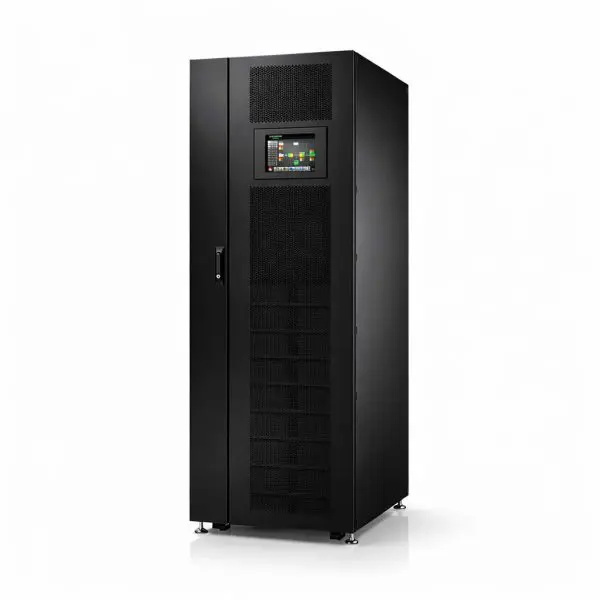

Xtreme – X90-2S – 70000 – 70 kVA – Three Phase Online UPS

Xtreme Power UPS — Modular 480 V Three‑Phase, 70 kW Scalable Online Double‑Conversion

The Xtreme Power X90‑2S is a scalable, modular 480 V online double‑conversion UPS engineered for
critical infrastructure and high‑availability environments. Built around 50 kW or 70 kW hot‑swappable power modules,
the X90‑2S scales from 50 kW up to 140 kW while simplifying maintenance and maximizing uptime.

This integrated system combines internal batteries and a front maintenance bypass in a single compact cabinet.
With full front access and top cable entry standard, installation and service are streamlined — ideal for
data centers, industrial control systems, medical imaging, and modular/edge IT where performance and serviceability matter.

Key Features & Benefits

• Scalable modular architecture — expandable configurations from 50 kW to 140 kW.
• Highest availability — redundant power and battery module design supports continuous operation.
• Hot‑swappable modules — replace power and battery modules without system downtime.
• Integrated batteries — internal battery system provides up to ~6 minutes at 100 kW load (typical).
• High efficiency — up to 96.5% online mode / 99% ECO mode to reduce operating cost.
• Full front access — service and maintenance from the front; no rear clearance required.
• Maintenance bypass built‑in — integral front bypass switch enables uninterrupted servicing.
• Flexible input configuration — dual (rectifier + bypass) or single utility input.
• Simplified cabling — top cable access standard; optional 6″ sidecar kit allows bottom entry.
• 10″ color touchscreen LCD — graphical real‑time status, alarms, and system overview.
• Industrial fault withstand — 65 kAIC rating for robust protection.

Technical Specifications — X90‑2S

Ideal Applications

• Data centers — compact, modular UPS with integrated batteries and bypass for mission‑critical uptime.
• Industrial automation & control — protects PLCs, drives, robotics, and control cabinets from disturbances.
• Medical imaging — clean, stable power for MRI/CT/diagnostic equipment support systems.
• Modular & edge infrastructure — scalable 480 V platform for distributed IT deployments.

Why the X90‑2S?

The X90‑2S combines scalable modular power, redundant design, and integrated batteries in a compact 480 V UPS with
full front access. With hot‑swappable modules, built‑in maintenance bypass, and top‑entry cabling,
it simplifies installation and service while maximizing uptime for critical operations.

Note: Battery runtime varies by load, configuration, temperature, and battery condition. Figures shown are typical reference values.
