| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 208VAC | N/A | 20 Kva | 19" | 16.9" | 5.1" | 51Â lb |
| Voltage | 208VAC |
| WPC | N/A |
| Amp/H | 20 Kva |
| Length | 19" |
| Width | 16.9" |
| Height | 5.1" |
| Weight | 51Â lb |

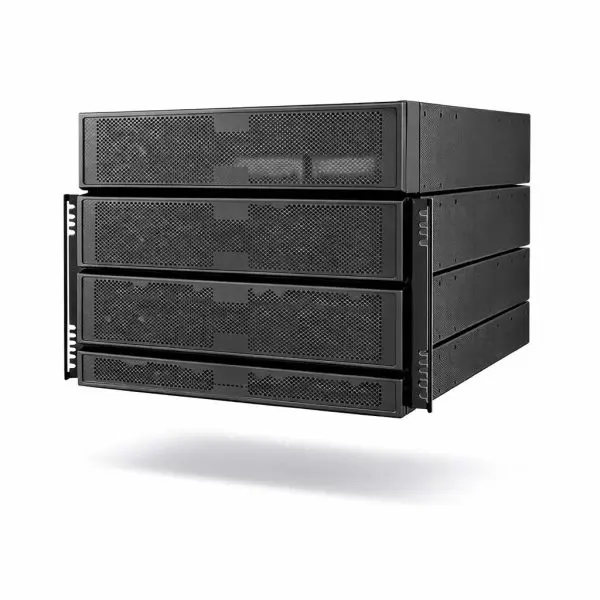

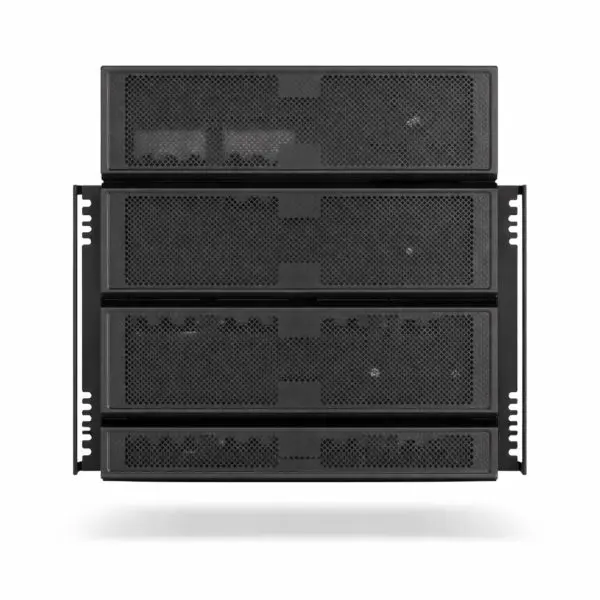

Keep critical equipment powered during planned UPS service with the Vertiv Liebert ITA2 MBC Maintenance Bypass Cabinet (MBC). Designed for compatible Liebert ITA2 15–40 kVA UPS systems, the cabinet provides a power path around the UPS for maintenance or replacement. A maintenance bypass interlock helps support the correct switching sequence during service.
Choose a compact 4U cabinet for a single UPS or a specialized 9U or 12U paralleling cabinet for supported multi-UPS configurations. Selection depends on your system voltage, UPS rating, number of units, and capacity or redundancy requirements. These MBC configurations are backed by a 2-year warranty.
| Category | Details |
|---|---|
| Manufacturer | Vertiv / Liebert |
| Product Type | ITA2 MBC Maintenance Bypass Cabinet (MBC) |
| Compatible UPS Family | Liebert ITA2 15–40 kVA; exact compatibility depends on cabinet model, voltage, and system configuration. |
| Primary Function | External maintenance bypass with interlock; specialized cabinet options support parallel UPS configurations. |
| Cabinet Sizes | 4U single-UPS • 9U two-UPS • 12U three-UPS |
| Single-UPS Configurations | 15/20 kVA at 208V or 30/40 kVA at 400V, using the appropriate 4U cabinet model. |
| Referenced Model | ITA2-40KMBC42 — 2+1 paralleling MBC. Confirm the exact application before ordering. |
| Warranty | 2 years |
Select the MBC for your complete UPS configuration. Rack height alone does not establish electrical compatibility.
| Cabinet | UPS Configuration | Application |
|---|---|---|
| 4U Single-UPS MBC | One UPS | Maintenance bypass for compatible 15/20 kVA, 208V or 30/40 kVA, 400V ITA2 systems. |
| 9U Paralleling MBC | Two UPS units 1+1 or 2+0 |
Supports a redundant two-UPS arrangement or combined capacity, depending on connected load and system design. |
| 12U Paralleling MBC | Three UPS units 2+1 |
Supports a configuration with two units providing required capacity and one additional unit for redundancy, within system ratings. |
Put Gruber’s four decades of critical power experience to work for your installation. We help match the correct maintenance bypass cabinet to your ITA2 system, voltage, service-access requirements, and capacity or redundancy goals.
Contact Gruber Power Services for availability, pricing, and assistance selecting the right ITA2 maintenance bypass cabinet.
