$17,485.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 20 kVA / 18 kW | 208/120 VAC | 34" | 17" | 38" | 900–920 lb |
| Voltage | 20 kVA / 18 kW |
| Amp/H | 208/120 VAC |
| Length | 34" |
| Width | 17" |
| Height | 38" |
| Weight | 900–920 lb |

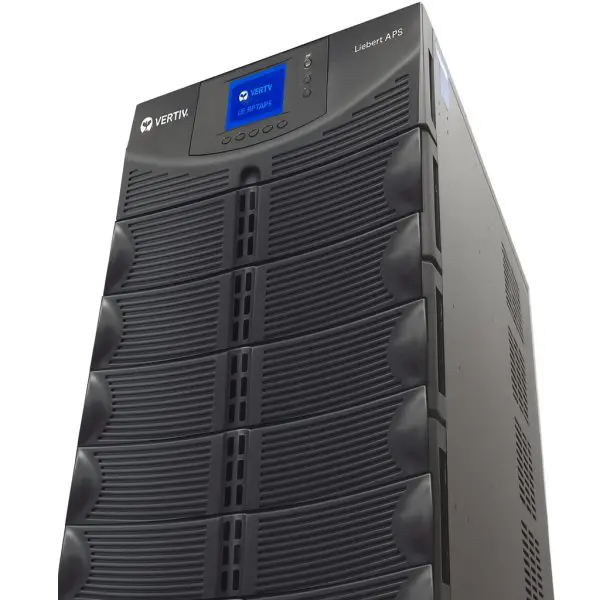

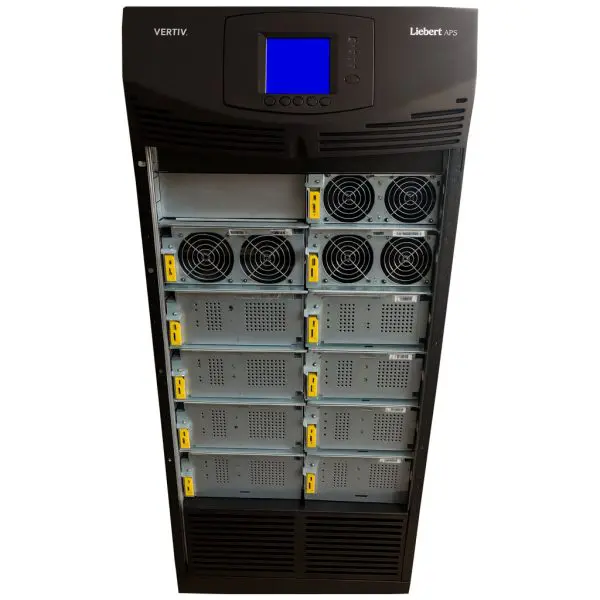

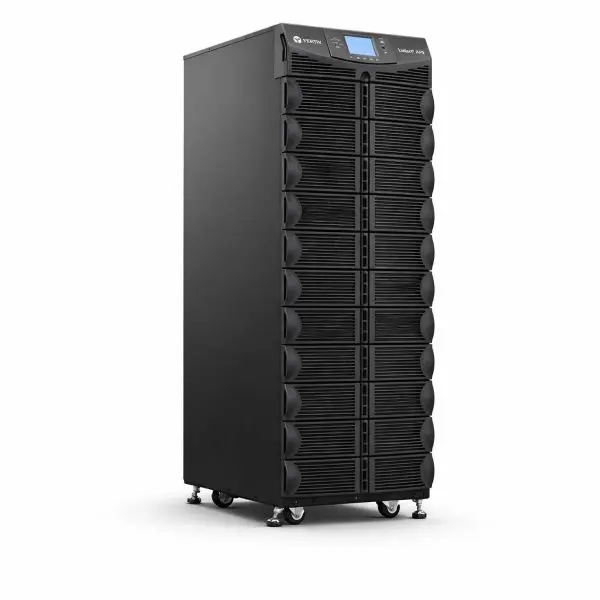

The Vertiv Liebert APS AS4D0NCXGNNXLKB is a scalable, modular UPS that delivers online double-conversion protection.
Units are fully refurbished, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 20 kVA / 18 kW; online double-conversion; modular, scalable; supports N+1 redundancy |
| Input | Hard-wired input; nominal 208 VAC; frequency 50/60 Hz; power-factor-corrected rectifier |
| Output | 208/120 VAC; regulation ≤ ±1% (steady-state); frequency synchronized to input within window |
| Bypass | Integrated static bypass; external maintenance bypass available |
| Battery System & Runtime | Sealed VRLA battery modules; internal battery standard; extended runtime via additional battery modules; typical full-load runtime ≈10 min (configuration-dependent) |
| Controls & Communications | Local HMI; network management (SNMP); Modbus; serial; summary alarms; EPO |
| Physical | Approx. 38″ H × 17″ W × 34″ D (965 × 432 × 864 mm); weight ≈900–920 lb |
| Environment | Operating 0–40 °C; 0–95% RH non-condensing; install below 1500 m (5000 ft) for full rating |
| Efficiency & Overload | High-efficiency operation; short-term overload capability up to 200% (model-dependent) |
| Accessory | Model / Type | Notes |
|---|---|---|
| Additional Battery Modules | External battery module (EBM) | Extends runtime; hot-swappable modules |
| Maintenance Bypass | External wrap-around MBC | Enables service without load interruption |
| Communication Cards | SNMP / Modbus / serial | Remote monitoring and integration |
