$23,900.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 36Â kVA / 36Â kW | 208Y/120Â VAC | 42" | 24" | 81" | 1,315Â lb |
| Voltage | 36Â kVA / 36Â kW |
| Amp/H | 208Y/120Â VAC |
| Length | 42" |
| Width | 24" |
| Height | 81" |
| Weight | 1,315Â lb |

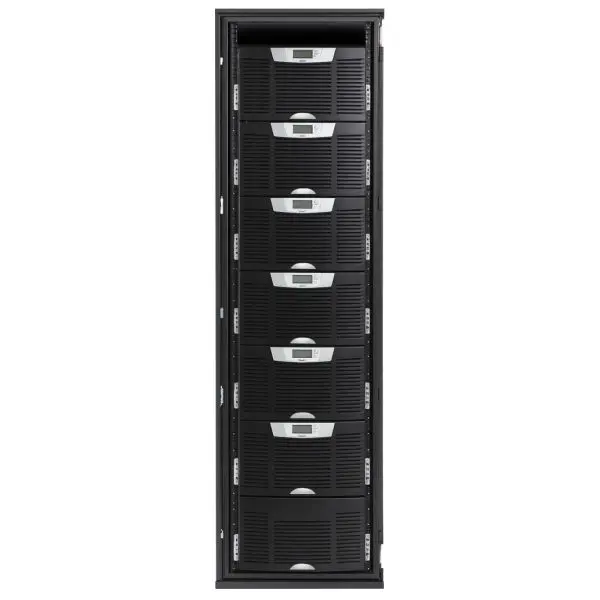

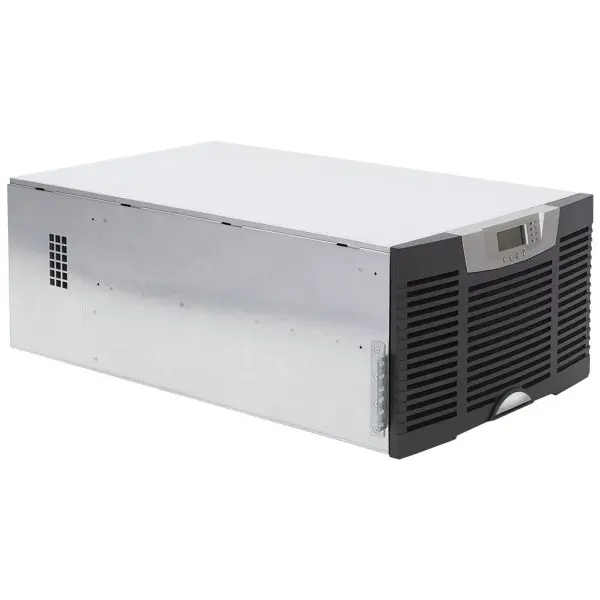

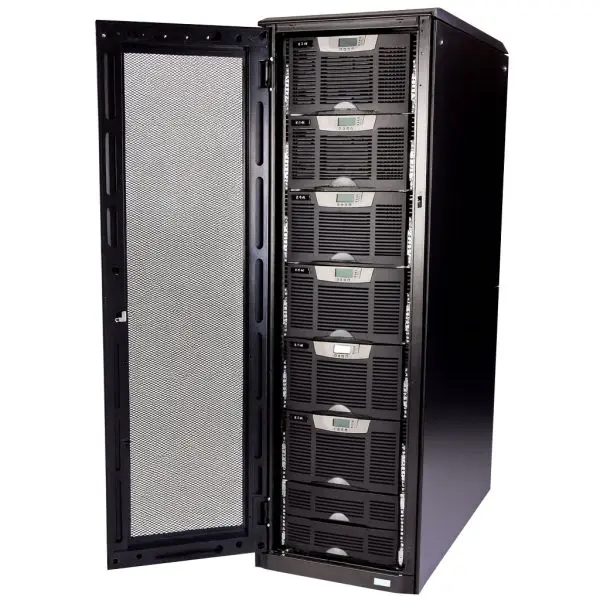

The Eaton BladeUPS 36Â kVA / 36Â kW is a high-density modular UPS for mission-critical IT environments.
Units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 36Â kVA / 36Â kW; true double-conversion on-line; modular/scalable architecture |
| Input | 208Y/120 VAC, 3-phase, 4-wire + G; 60 Hz nominal; Power factor typically ≥0.99 with IT loads; low input THDi with PFC front-end. |
| Output | 208Y/120 VAC, 3-phase; regulation ≤ ±1% (steady-state); Nominal output current ≈108 A at 208Y/120 V; frequency synchronized to input while within window. |
| Bypass | Integrated static bypass; maintenance bypass available as an external module |
| Battery System | Sealed VRLA; internal battery string standard; external battery cabinets (EBM) for extended runtime; Typical runtime ≈4 min at full load, ≈14 min at 50% load (configuration-dependent) |
| Controls & Communications | Local HMI; network management (Web/SNMP); Modbus; serial; summary alarm contacts; EPO |
| Physical | 81″ H Ă— 24″ W Ă— 42″ D (2057 Ă— 610 Ă— 1067 mm); installed weight ≈1315 lb (596 kg) |
| Environment | Operating 0–40 °C; storage per battery manufacturer; 5–95% RH non-condensing; Install below 1500 m (5000 ft) for full rating; typical acoustic <70 dBA @ 1 m |
| Accessory | Model | Notes |
|---|---|---|
| Maintenance Bypass Module | Site-specific | Wrap-around service bypass for maintenance/testing |
| Extended Battery Module | EBM series | Adds runtime beyond internal batteries |
| Network/Comm Cards | Web/SNMP • Modbus • Serial • Dry-contact | Remote monitoring and system integration |
