$11,338.56
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 12Â kVA / 12Â kW | N/A | 120/208Â V | 26.0" | 17.4" | 10.3" | 135Â lb – 311Â lb |
| Voltage | 12Â kVA / 12Â kW |
| WPC | N/A |
| Amp/H | 120/208Â V |
| Length | 26.0" |
| Width | 17.4" |
| Height | 10.3" |
| Weight | 135Â lb – 311Â lb |

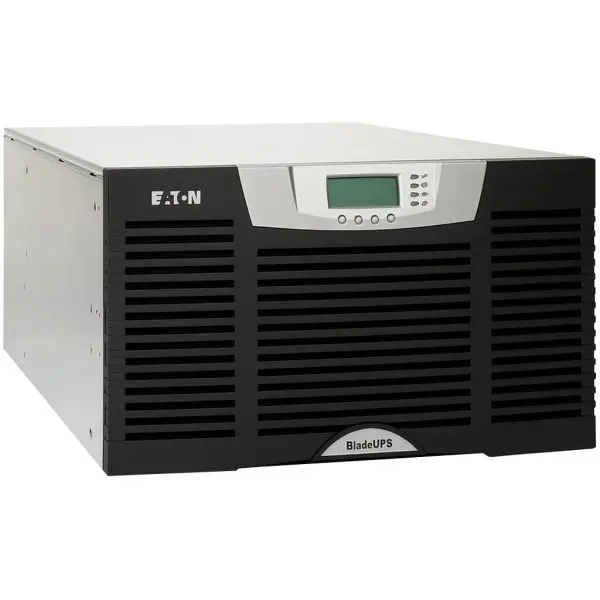

The Eaton/Powerware BladeUPS 12Â kVA delivers 12Â kW of on-line protection in just 6U, with hot-swappable power, battery, and electronics subassemblies. Modules can be paralleled to 60 kW (N+1) using the BladeUPS Bar. Our refurbished units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 12Â kVA / 12Â kW (PFÂ 1.0); true double-conversion (VFI) with PFC rectifier & PWM inverter; internal static bypass; scalable 12Â kW building blocks to 60Â kW (N+1) via BladeUPS Bar. |
| Input | Nominal 120/208 V, 3-phase, 4-wire + G; frequency 45–65 Hz (auto-detect). Rated input current 36 A. Connection: IEC 309-60A cord (UL). Input PF >0.99 (Std mode); THDi ≤ 5% (Std mode), load-dependent in HE mode. |
| Output | Nominal 120/208 V, 3-phase; variation 104–132 V (L-N) / 180–229 V (L-L). Nominal frequency 50/60 Hz (Normal); 50/60 Hz on battery. Voltage THD <2% (linear), <5% (non-linear). |
| Bypass | Continuous-duty static bypass module integrated; automatic transfer per overload/fault thresholds. |
| Short-Circuit / AIC | Battery mode: 84Â A (<300Â ms). Normal mode limited by 50Â A input breaker. Coordinate upstream OCPD to site one-line. |
| Battery System | Internal: (40) × 12 V, 5 Ah VRLA trays (standard). Extended Battery Modules (EBM): up to 4 EBMs (each uses 12 V, 9 Ah blocks). Typical full/half-load runtimes (internal only): 4.7/13.6 min; with +1/+2/+3/+4 EBM: 9.5/27, 17/42, 27/60, 34/76 min. Recharge to ~80%: 8–10× discharge time. |
| Controls & Comm | Front panel LCD; dual X-Slot bays; DB-9 serial; REPO (NO/NC). Hot-swap electronics module; firmware upgradable. |
| Physical | 6U module —10.3″ H × 17.4″ W × 26.0″ D . Weight (with internal batteries): 311 lb (141 kg); without internal batteries: 135 lb (61 kg). Heat: 1432 BTU/h (HE mode) / 4094 BTU/h (Std mode). Acoustic: <58 dBA at 1 m (Normal). |
| Environment | Operating 0–40 °C (battery optimal 5–25 °C); RH 5–95% non-condensing; altitude up to 1000 m (to 2000 m with 1%/100 m derate). Transit −25–55 °C. |
| Accessory | Model | Notes |
|---|---|---|
| Extended Battery Module | BladeUPS EBM | Up to 4Â EBMs per UPS; 9Â Ah VRLA strings; tool-less cabling to UPS or BladeUPS Bar. |

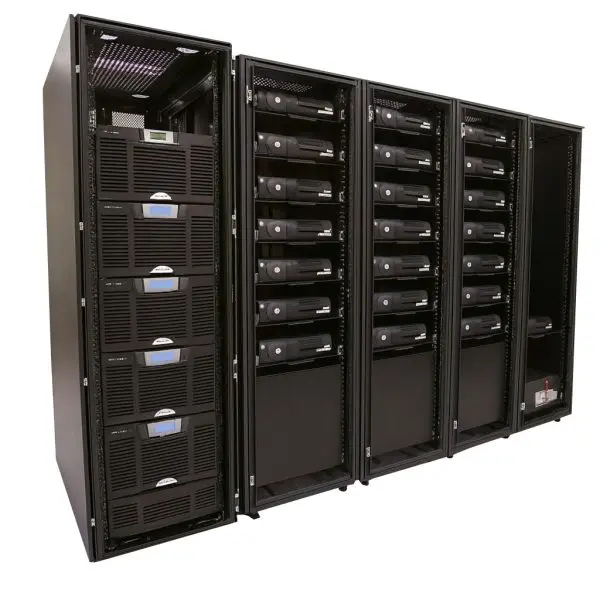

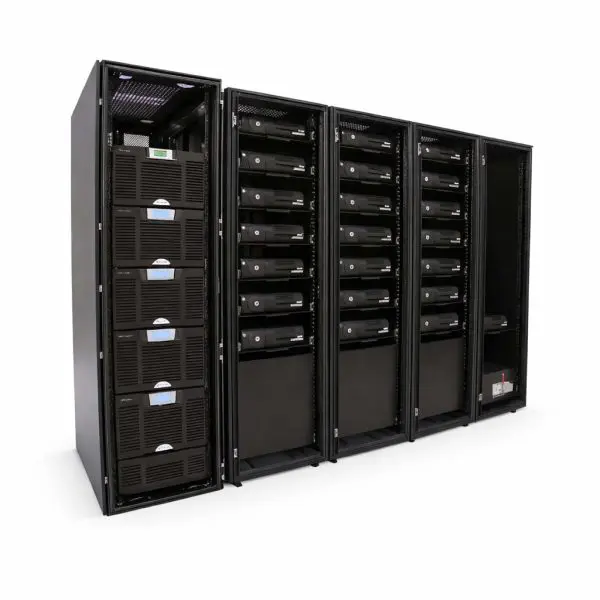

| BladeUPS Bar | 4-High / 6-High | Parallel & distribution bus for 2–6 modules (to 60 kW N+1); Anderson input/output cords. |
| Environmental Probe | EMP | Temperature/humidity monitoring; integrates via X-Slot network card. |
