$19,585.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 825 kVA / 825 kW | 480/400 V | 34.4″ | 141″ | 74″ | 5236 lb – |
| Voltage | 825 kVA / 825 kW |
| Amp/H | 480/400 V |
| Length | 34.4″ |
| Width | 141″ |
| Height | 74″ |
| Weight | 5236 lb – |

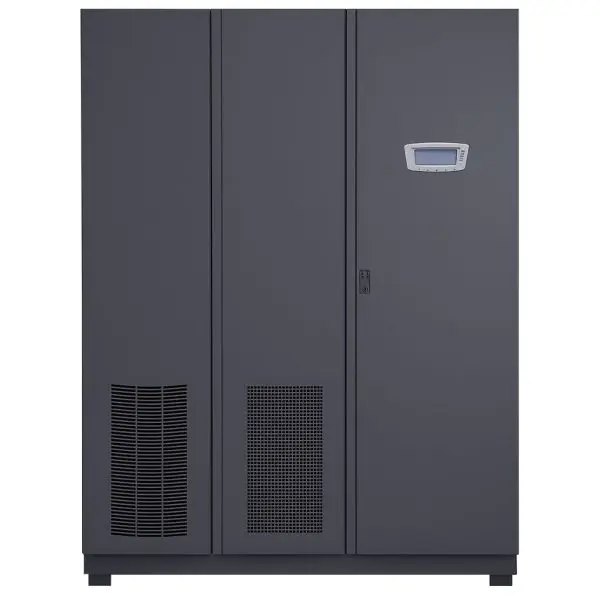

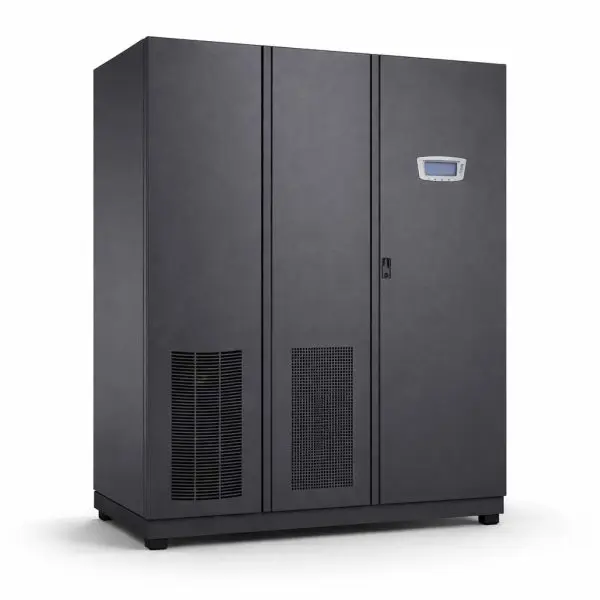

Exact OEM specifications for the Eaton Power Xpert 9395 825 kVA, formatted in our standard template. Units are fully
reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 825 kVA / 825 kW (High-Performance platform); transformer-free true double-conversion (VFI) with IGBT rectifier & PWM inverter; Hot Sync™ parallel-capable; double-conversion efficiency up to ~97% (480 V) and ESS mode up to 99%. |
| Input | Nominal 480/400 V, 3-phase; operating window +10% / −15% (e.g., 480 V → 408–528 V); frequency 45–65 Hz. Power factor ≥0.99 (full load); input current distortion ≤5% THDi (full load). Rectifier full-load + recharge current: 1132 A @ 480 V; 1358 A @ 400 V. |
| Output | Regulation (10–100% load) ±1%; nominal adjust (±3%): 480 V → 466–494 V, 400 V → 388–412 V. Voltage THD ≤1.5% (linear), ≤5% (non-linear); transient ±5% for 100% step/removal. Frequency ±0.1 Hz free-running; sync-to-bypass selectable band (typ. ±3%); slew ≤1 Hz/s. Full-load output current: 992 A @ 480 V; 1191 A @ 400 V. |
| Bypass | Integrated static bypass; synchronous operation within selected band; full-load bypass current: 992 A @ 480 V; 1191 A @ 400 V. |
| Overload / AIC | Overload capability: 110% for 10 min, 125% for 30 s (inverter). Coordinate breaker/withstand ratings per site one-line and configured lineup. |
| Battery System | External battery plant; nominal DC link 480 Vdc. DC current @ 2.0 V/cell (per UPM): 551 A dc (three-UPM 825 kVA platform); common-battery total up to ~1600 A dc (configuration-dependent). |
| Controls & Comm | Color LCD/HMI with metering and event logs; network/web (SNMP), Modbus/RS-485, and relay I/O options; ESS/EAA energy-saver modes available. |
| Physical | 74″ H × 141″ W × 34.4″ D (1880 × 3581 × 874 mm); weight ~5236 lb (2375 kg). |
| Environment | Operating 0–40 °C (25 °C recommended); altitude up to 2000 m without derating; audible noise ≤76 dBA @ 1 m. |
| Accessory | Model | Notes |
|---|---|---|
| Integrated Battery Cabinets | IBC-S / IBC-L | External runtime cabinets (480 Vdc bus); size/count per runtime requirement. |
| Maintenance Bypass Module | MBM / IOM | Wrap-around service bypass; tie options for multi-module systems. |
