$13,444.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208/120 | 80 KVA | 34″ | 32″ | 76″ | 2,100 lb |
| Voltage | 208/120 |
| Amp/H | 80 KVA |
| Length | 34″ |
| Width | 32″ |
| Height | 76″ |
| Weight | 2,100 lb |

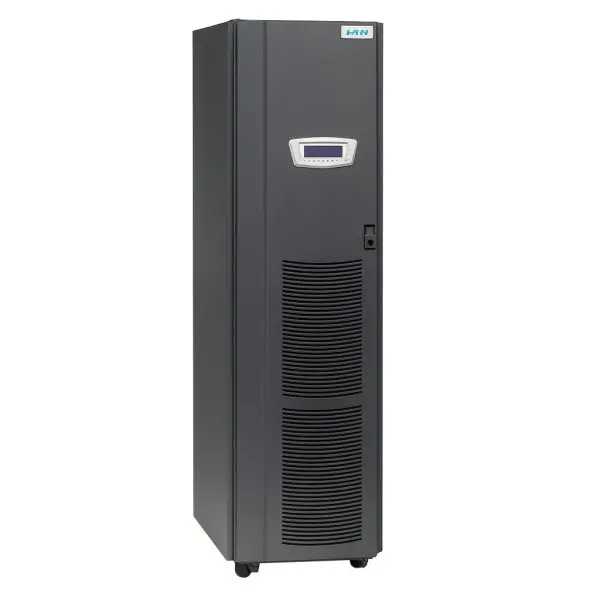

The Eaton PowerWare 9390 80kVA UPS is designed for mission-critical applications in data centers, healthcare, and industrial facilities. Offering high efficiency, scalability, and robust three-phase protection, this model ensures continuous uptime. Our refurbished units are fully reconditioned to OEM standards, cosmetically refreshed, and tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 80kVA / 80kW; double-conversion online; pure sine-wave output |
| Input | 480V 3-phase; 45–65Hz; PF>0.99; THDi <5%; input voltage window adjustable |
| Output | 480V 3-phase; 50/60Hz; voltage regulation ±1%; THD <2% linear, <3% non-linear; overload 10min @125%, 60s @150% |
| Bypass | Integrated static bypass; programmable transfer thresholds |
| Short-Circuit / AIC | 65kA rating |
| Battery System | External battery cabinets; compatible with Eaton 9390 extended battery solutions |
| Controls & Comm | LCD touch display; multiple communication slots; network and building management integration |
| Physical | 1930H × 813W × 864Dmm (76″ × 32″ × 34″); ~953kg (2,100lb); front access for service |
| Environment | Operating 0–40°C; 0–95% RH (non-condensing) |
| Accessory | Model | Notes |
|---|---|---|

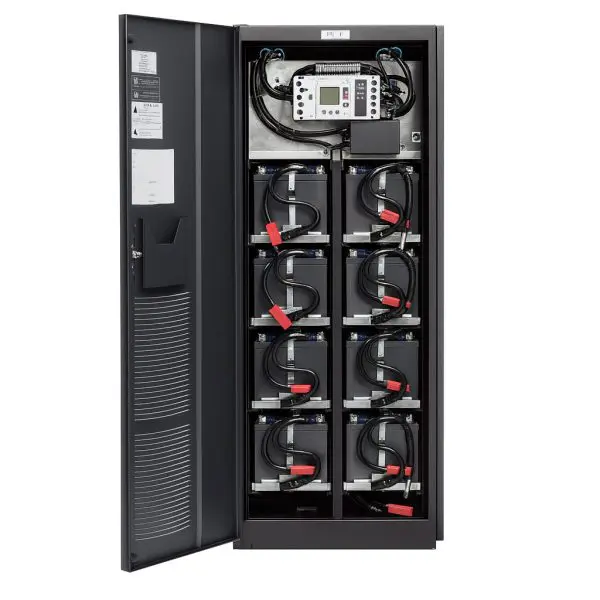

| Standard Battery Cabinet | 9390-BATCAB | Holds Eaton VRLA strings; scalable runtime |
| Extended Battery Solution | 9390-EBM | External cabinet for additional runtime; hot-swappable strings |
