$13,098.87
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 384/432/480 V | N/A | 208 V | 34.8″ | 26.9″ | 73.7″ | 530 lb |
| Voltage | 384/432/480 V |
| WPC | N/A |
| Amp/H | 208 V |
| Length | 34.8″ |
| Width | 26.9″ |
| Height | 73.7″ |
| Weight | 530 lb |

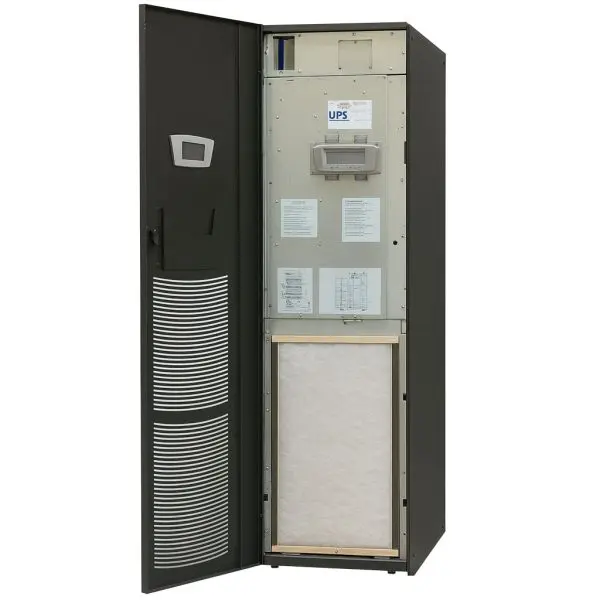

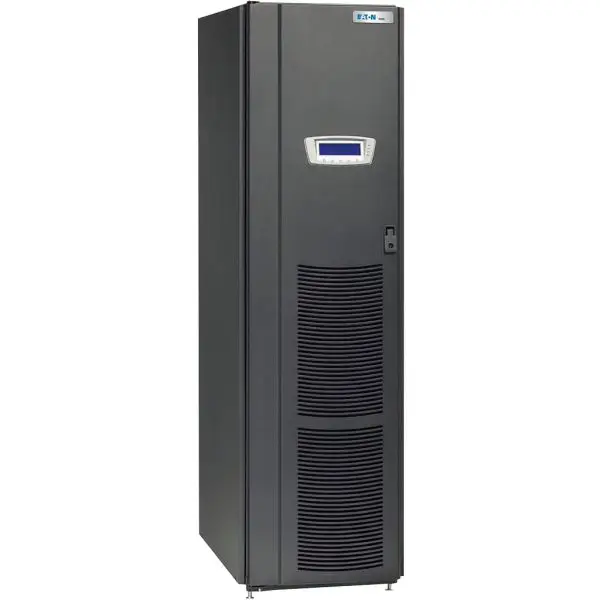

Exact OEM specifications for the Powerware 9390 40 kVA, formatted in our standard template. Units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | variable DC bus 384/432/480 V (192–240 cells). |
| Input | Operating windows (nominal +10%/−15%): 208 V: 177–229 V • 220 V: 187–242 V • 480 V: 408–528 V; frequency range ±5 Hz. Rectifier input current (full load + recharge): 125 A @ 208/220 V • 55 A @ 480 V. Input PF ≥0.99 (full load); input current distortion ≤5% THDi (full load). |
| Output | Voltage regulation ±1% (10–100% load); adjustable nominal (±3%): 208 V→202–214 V, 220 V→214–226 V, 480 V→466–494 V. Distortion ≤1.5% THD (linear) / ≤5% THD (non-linear). Transient ±5% for 100% step/removal. Frequency ±0.01 Hz free-running; sync to bypass within ±0.5 Hz; slew ≤1 Hz/s. Full-load output current: 111/105 A @ 208/220 V • 48 A @ 480 V. Overload: 110%/10 min, 125%/30 s, 150%/10 s. |
| Bypass | Integrated static bypass; permissible window +5%/−8% of output setting; sync bandwidth ±0.5 Hz. Bypass full-load current: 111/105 A @ 208/220 V • 48 A @ 480 V. |
| Short-Circuit / AIC | Coordinate breaker/withstand ratings per site one-line and configured lineup. |
| Battery System | Variable DC bus: 384 Vdc (208/220-V units), 432 Vdc, 480 Vdc. DC current @ 2.0 V/cell: 101 A dc (40 kVA). Positive/negative DC inputs to UPS. |
| Controls & Comm | Front LCD/HMI; dual X-Slot bays (web/SNMP, Modbus/RS-485, serial); remote alarm I/O; REPO. |
| Physical | 73.7″ H × 26.9″ W × 34.8″ D (1872 mm × 683 mm × 884 mm). Shipping weight ≈580 lb (263 kg); installed weight ≈530 lb (241 kg); point loading: 4 points @ ~133 lb each. |
| Environment | Operating 0–40 °C (25 °C recommended); altitude ≤1500 m @ 40 °C without derating; RH 5–95% non-condensing; acoustics ~65 dB @ 1 m. |
| Accessory | Model | Notes |
|---|---|---|
| Integrated Battery Cabinet | IBC-S / IBC-L | Line-up battery cabinets; variable 384–480 Vdc bus supported. |
| Integrated Accessory Cabinet | IAC-B / IAC-T / IAC-D | Wrap-around maintenance bypass / tie options (matching sidecar). |
| Integrated Distribution Cabinet | IDC | Panelboard / subfeed distribution for 9390 line-ups. |
