$27,374.62
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 500 kVA | N/A | 480 VAC | 31.5″ | 74″ | 73.5″ | 6,100 lb |
| Voltage | 500 kVA |
| WPC | N/A |
| Amp/H | 480Â VAC |
| Length | 31.5″ |
| Width | 74″ |
| Height | 73.5″ |
| Weight | 6,100 lb |

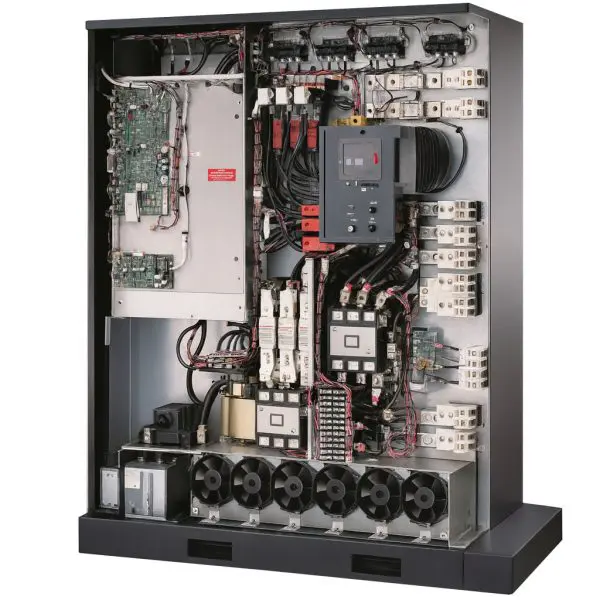

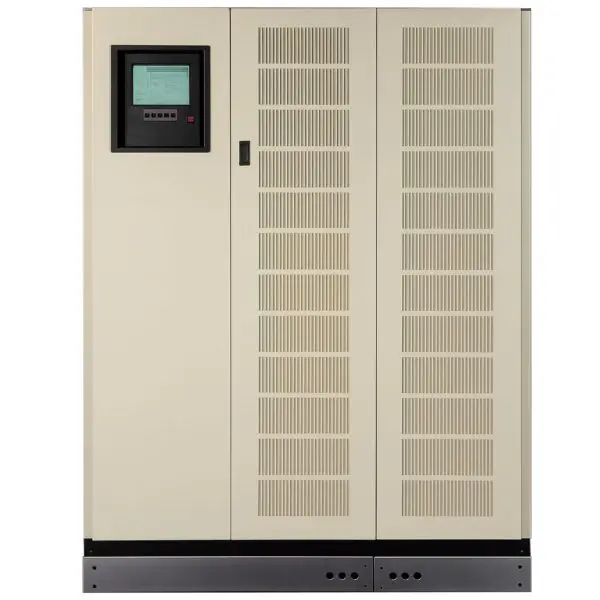

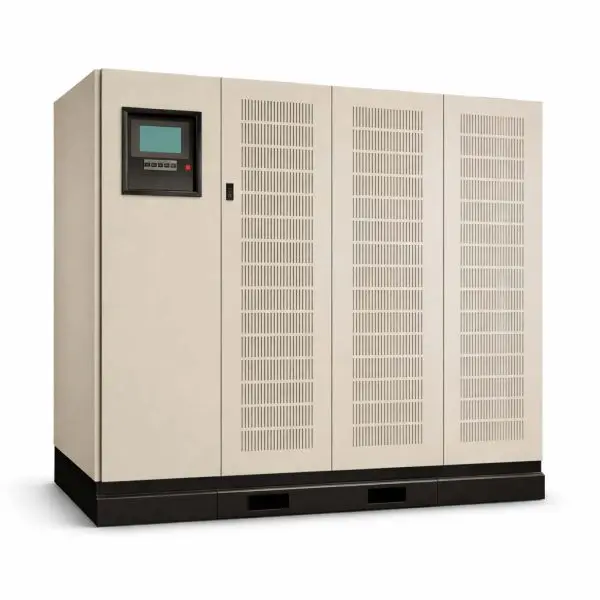

The Powerware 9315-500 is a high-power on-line UPS for mission-critical facilities. Units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 500 kVA; 400 kW (0.8 PF) or 450 kW (0.9 PF); true double-conversion on-line; Hot Syncâ„¢ parallel-ready |
| Input | 480 VAC 3-phase (3-wire + G); 57–63 Hz; voltage range 408–528 VAC. With input filter — nominal/max current: 528/640 A (0.8 PF) • 605/720 A (0.9 PF). Without input filter — nominal/max current: 648/800 A (0.8 PF) • 729/850 A (0.9 PF). Typical input PF ≈0.96 with filter; input THDi <7% with filter. |
| Output | 480 VAC 3-phase; voltage regulation ≤±1%; transient <5% at 100% step, recovery ≤2.5 ms; VTHD <3% (linear) / <5% (100% non-linear). Nominal output current 601 A; 10-minute max 750 A. Frequency ±0.005 Hz free-running; sync range ±0.5 Hz; slew ≤1 Hz/s. |
| Bypass | Integrated static bypass; bypass nominal current 601 A (480 V) |
| Short-Circuit / AIC | Coordinate per site one-line and protective device study (installation-dependent) |
| Battery System | External VRLA plant; DC link 480 Vdc nominal / 540 Vdc float / 401 Vdc end-of-discharge (≈1.67 V/cell). Max battery end-of-discharge current: 1000 A dc (0.8 PF) • 1120 A dc (0.9 PF). Recharge to ≈95% in 10–12× the discharge time. |
| Controls & Comm | Local monitor/HMI; X-Slot cards: ConnectUPS-X web/SNMP, Modbus, serial; summary alarm contacts; EPO/REPO |
| Physical | 73.5″ H × 74″ W × 31.5″ D (1867 × 1880 × 800 mm); installed UPS weight ≈6100 lb (2767 kg). Optional removable wireway reduces installed width by 9″ for ingress. |
| Environment | Operating 0–40 °C; storage −20–70 °C; 5–95% RH non-condensing; altitude ≤1500 m (5000 ft) at 40 °C without derating; acoustic <72 dBA @ 1 m |
| Accessory | Model | Notes |
|---|---|---|
| Maintenance Bypass Cabinet | MBB (site-specific) | Wrap-around service bypass for maintenance/testing |
| Input/Output Transformer Cabinet | Factory options | Voltage adaptation/isolation (e.g., 480↔208 V) |
| Power Distribution Module | PDM sidecar | 42-pole panelboard distribution (208 V) |
| Battery Plant | Line-up-and-match | External VRLA cabinets sized to runtime; RBB/DC disconnects |
