$16,447.56
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 130 kVA / 104 kW | N/A | 208 or 480 VAC | 32.5″ | 49.2″ | 71″ | 2,300–2,700 lb |
| Voltage | 130Â kVA / 104Â kW |
| WPC | N/A |
| Amp/H | 208 or 480Â VAC |
| Length | 32.5″ |
| Width | 49.2″ |
| Height | 71″ |
| Weight | 2,300–2,700 lb |

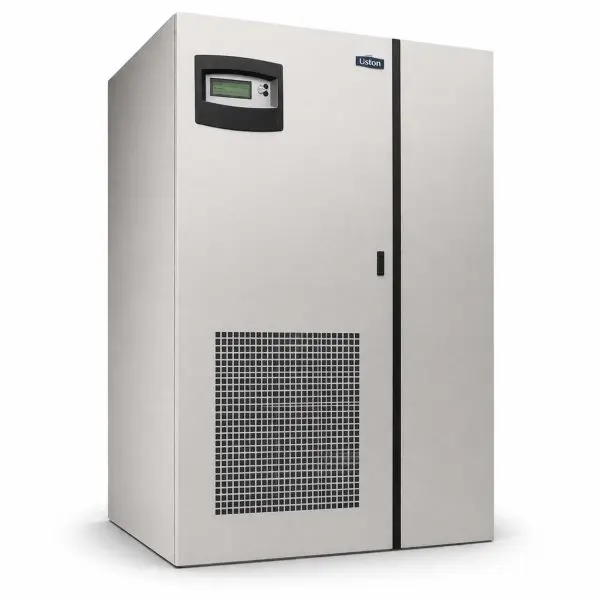

The Liebert Npower 130 kVA is a rugged three-phase on-line UPS with excellent dynamic response and low output distortion. Our refurbished units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 130Â kVA / 104Â kW; true double-conversion on-line; sine-wave output; fast transient response |
| Input | 208 or 480 VAC, 60 Hz; 3-phase, 3- or 4-wire + G • Voltage range +10%/−15% (no battery discharge at −20%) • Frequency range ±5% • Reflected input THDi ≤10% with optional input filter (≈30% without) • Current walk-in ≈20 s to full load • Minimum PF ≥0.80 (up to ≈0.96 with input filter) |
| Output | 208 or 480 VAC, 3-phase, 4-wire + G • Regulation ±0.5% (balanced), ±1% (100% unbalanced) • Dynamic regulation ±5% for 100% step, recovers to ±1% within 1 cycle • VTHD ≈1% (linear), <2.5% at 100% non-linear • Frequency regulation ±0.1% • Load PF 1.0 to 0.7 lagging without derating • Overload 125% for 10 min / 150% for 1 min |
| Bypass | Static bypass; external wrap-around Maintenance Bypass Cabinet (MBB) available |
| Short-Circuit / AIC | Coordinate per site one-line and protective device study (rating varies by installation) |
| Battery System | External VRLA battery cabinets; nominal ~480Â Vdc bus; runtime scales with cabinet count and AH; remote battery breaker (RBB) options available |
| Controls & Comm | Menu-driven LCD HMI; optional NIC (SNMP/web), RS-232/Modem, RS-485/Modbus, programmable relay I/O; remote alarm panel (as equipped) |
| Physical | Approx. 49.2″ W × 32.5″ D × 71″ H (1250 × 826 × 1803 mm); unpacked weight ≈2,700 lb (configuration dependent) |
| Environment | Operating 32–104 °F (0–40 °C); ≤95% RH non-condensing; altitude to 2000 m without derating; acoustics <65 dBA @1 m |
| Accessory | Model | Notes |
|---|---|---|
| Maintenance Bypass Cabinet | MBB (site-specific) | Wrap-around service bypass for maintenance |
| Slim-Line Distribution Cabinet | SLDC | Compact downstream distribution cabinet |
| Remote Battery Breaker | RBB / variants | Remote battery isolation; multi-cabinet support |
| Battery Plant | Site-engineered | VRLA cabinets sized to required runtime (~480Â Vdc bus) |
