$17,657.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208/120 | 40 kVA | 39.0″ | 97.2″ | 78.0″ | 9575 lb |
| Voltage | 208/120 |
| Amp/H | 40 kVA |
| Length | 39.0″ |
| Width | 97.2″ |
| Height | 78.0″ |
| Weight | 9575 lb |

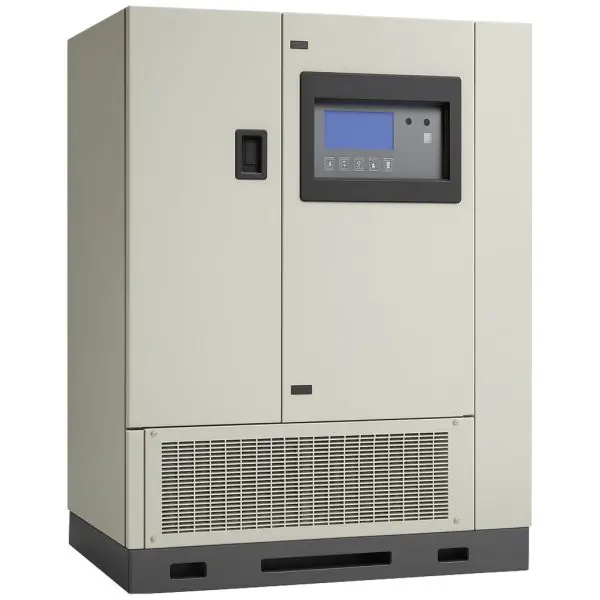

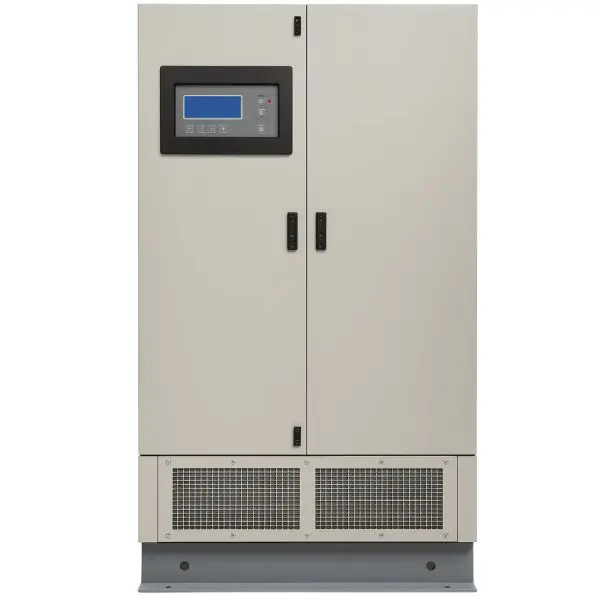

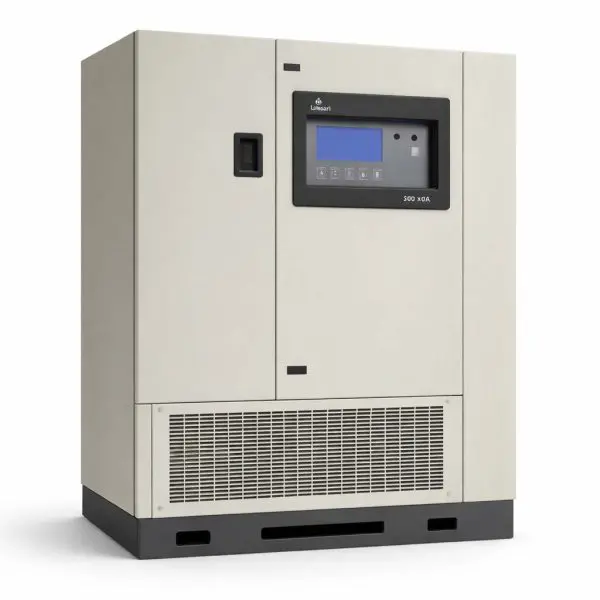

The Liebert 610T 500 kVA is a proven high-power on-line UPS for critical facilities. Our refurbished units are fully
reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 500 kVA / 400 kW; true double-conversion on-line; sine-wave output |
| Input | 480 VAC, 3-phase (wye); 60 Hz (typ. 57–63 Hz window); rectifier walk-in (soft start); 600 V variant available |
| Output | 480 VAC, 3-phase; 50/60 Hz; nominal full-load output current ≈601 A (at 480 V); tight static regulation with fast dynamic response |
| Bypass | Integrated static bypass; external wrap-around maintenance bypass (MBB) available |
| Short-Circuit / AIC | Coordinate per site one-line and protective device study (varies by installation) |
| Battery System | External VRLA battery plant; nominal ~480 V dc bus; max battery end-of-discharge current (500 kVA) ≈1128 A dc; module/remote battery disconnect cabinets available (600 V dc breakers) |
| Controls & Comm | System Control/Operator panel (SCC/SCC-T); options for SNMP/web, RS-485/Modbus, dry-contact I/O; REPO input |
| Physical | 97.2″ W × 39.0″ D × 78.0″ H (2469 × 990 × 1981 mm); unpacked weight ≈9575 lb (≈4343 kg) |
| Environment | Recommended 77 °F (25 °C); operating to 104 °F (40 °C) without derating; ≤95% RH non-condensing; altitude above ~4000 ft may require derating |
| Accessory | Model | Notes |
|---|---|---|
| Maintenance Bypass Cabinet | MBB (site-specific) | Wrap-around service bypass for maintenance |
| System Control Cabinet | SCC / SCC-T | Operator/mimic interface; static-switch section in SCC-T variants |
| Battery Plant | Site-engineered | VRLA cabinets sized to runtime; DC disconnect cabinets 600 V dc |
