$16,233.66
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 208/120 | N/A | 40 kVA | 33″ | 56″ | 78″ | 3,605–4,805 lb |
| Voltage | 208/120 |
| WPC | N/A |
| Amp/H | 40 kVA |
| Length | 33″ |
| Width | 56″ |
| Height | 78″ |
| Weight | 3,605–4,805 lb |

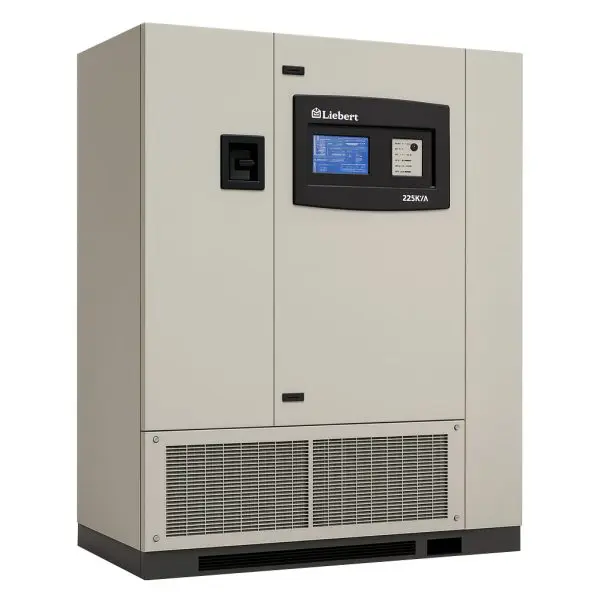

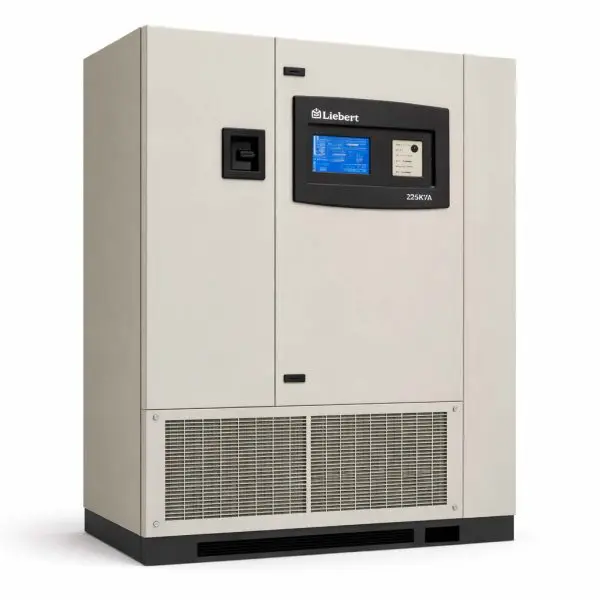

The Liebert 610T 225 kVA is an industrial-grade on-line UPS for data centers and critical facilities. Units are fully reconditioned, cosmetically refreshed to factory finish, and tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 225 kVA (≈180 kW) true double-conversion on-line; sine-wave output |
| Input | 480 VAC 3-phase (208 V & 600 V variants available); 60 Hz (typ. 57–63 Hz window); Rectifier AC input current (nominal / max) @480 V: ≈253 A / 316 A (configuration-dependent); soft-start (walk-in) supported. |
| Output | 3-phase, regulated 50/60 Hz; common configurations: • 208 V: nominal output current ≈625 A (225 kVA) • 480 V: nominal output current ≈271 A (225 kVA) Voltage regulation tight (static), fast dynamic response (per OEM site-planning tables). |
| Bypass | Integrated static bypass; external wrap-around Maintenance Bypass Cabinet available |
| Short-Circuit / AIC | Coordinate per site one-line & protective device study (rating depends on installation) |
| Battery System | External battery plant; required battery disconnect rating 450 A; max battery current at end-of-discharge ≈488 A (225 kVA rows). |
| Controls & Comm | System Control Cabinet (SCC) with operator/mimic panel; optional SNMP/web, RS-485/Modbus, and dry-contact I/O |
| Physical | 78″ H × 56″ W × 33″ D (1981 × 1422 × 838 mm); floor-standing cabinet.; typical unpacked weight range ≈3,605–4,805 lb (by options); see site-planning tables for exact width/depth/height per build. |
| Environment | Indoor, controlled environment; recommended 77 °F (25 °C); max 104 °F (40 °C) without derating; humidity ≤95% non-condensing; altitude above ~4000 ft may require derating (per OEM guidance). |
| Accessory | Model | Notes |
|---|---|---|
| Maintenance Bypass Cabinet | MBB (site-specific) | Wrap-around service bypass for maintenance |
| System Control Cabinet | SCC-610 | Operator/mimic interface and system controls |
| Battery Plant | Site-engineered | VRLA cabinets sized to required runtime; remote battery disconnect per code |
