$11,445.23
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 8 kVA / 6.4 kW | N/A | 208/240 V | 28.6″ | 19.0″ | 59.7″ | 1042 lb |
| Voltage | 8Â kVA / 6.4Â kW |
| WPC | N/A |
| Amp/H | 208/240Â V |
| Length | 28.6″ |
| Width | 19.0″ |
| Height | 59.7″ |
| Weight | 1042Â lb |

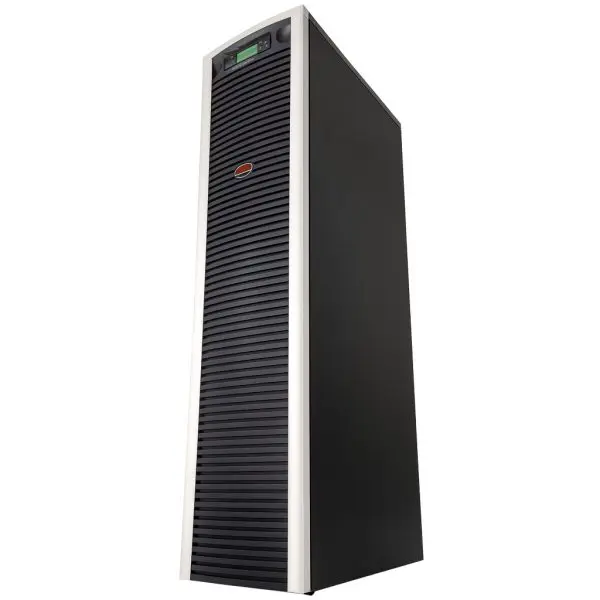

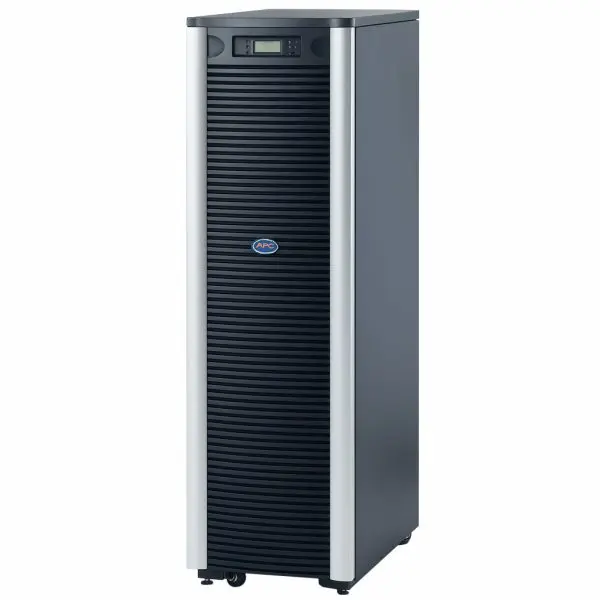

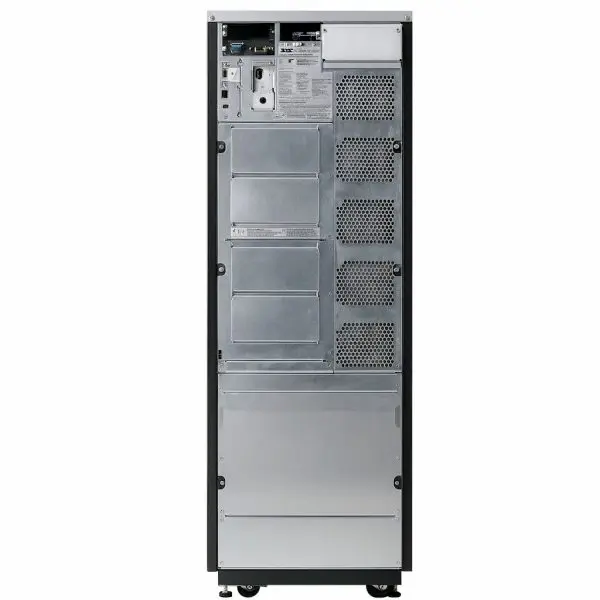

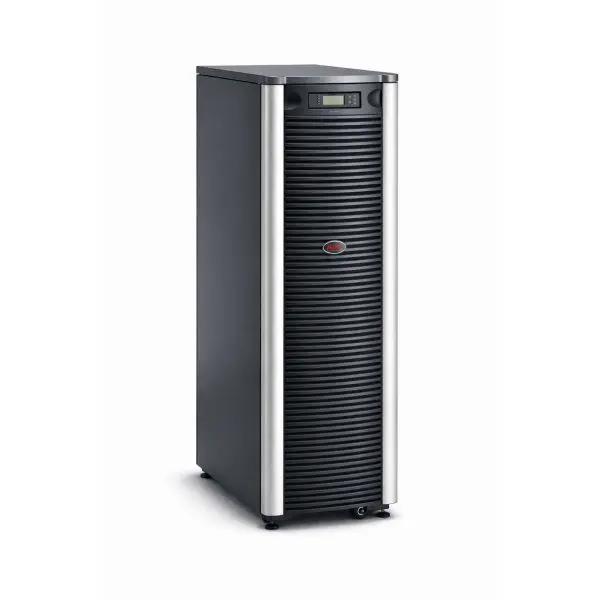

Symmetra LX delivers modular, scalable on-line protection. The SYA8K16PXR is an extended-run tower (XR) configured at 8 kVA / 6.4 kW and field-scalable to 16 kVA N+1. Units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 8Â kVA / 6.4Â kW; true double-conversion on-line; modular N+1 architecture; scalable to 16Â kVA. |
| Input | Hard-wire 4-wire (L1-L2-N-G); 208/240 VAC 3-wire + N; 45–65 Hz auto-sensing; Voltage window @208 V: 96–138 V L-N, 166–244 V L-L • @240 V: 83–138 V L-N, 166–276 V L-L; Input PF ≈0.90 (120/208) or ≈0.98 (120/240); input ITHD <7% (full load). |
| Output | User-selectable 208/240 V L-L (120 V L-N); static regulation ±3%; dynamic ±5% with ~60 ms recovery; VTHD <5% (computer load), <2% (resistive); crest factor up to 5:1; nominal full-load current 37 A (8 kVA). |
| Bypass | Internal static bypass; bypass frequency window 45–65 Hz (optional 57–63 / 47–53 Hz limits). |
| Short-Circuit / AIC | Site-specific; coordinate with upstream/downstream protection and the project one-line. |
| Battery System | Hot-swappable SYBT5 VRLA modules (9 Ah, 120 Vdc nominal/module); XR (extended-run) tower frame; external XR frames supported; intelligent battery management; typical life 3–6 years. |
| Controls & Comm | PowerView local LCD; NMC2 pre-installed (remote monitoring); REPO input; optional Modbus/relay cards. |
| Physical | Approx. 59.7″ H × 19.0″ W × 28.6″ D (1516 × 483 × 726 mm); weight ≈ 1042 lb (473.6 kg). |
| Environment | Operating 0–40 °C; 0–95% RH (non-condensing); altitude 0–3000 m; acoustics ≈62 dBA; online heat dissipation ≈4995 BTU/h. |
| Accessory | Model | Notes |
|---|---|---|
| Battery Module | SYBT5 / SYBT5FR | Hot-swappable VRLA (FR = flame-retardant case) |
| XR Battery Frame — 9 modules | SYAXR9B9 / SYBFXR9 | Tower XR cabinet; expands runtime with 9× SYBT5 |
| Power Module (4Â kVA) | SYPM4KP | Add modules to scale capacity and/or N+1 |
| External Maintenance Bypass | SBP16K* (100Â A MBB) | Wrap-around service bypass options for 200/208/240Â V |
