$39,847.26
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 100 kW / 100 kVA | N/A | 177–239 V | 42.1″ | 47.2″ | 79.1″ | 4054 lb |
| Voltage | 100Â kW / 100Â kVA |
| WPC | N/A |
| Amp/H | 177–239 V |
| Length | 42.1″ |
| Width | 47.2″ |
| Height | 79.1″ |
| Weight | 4054Â lb |

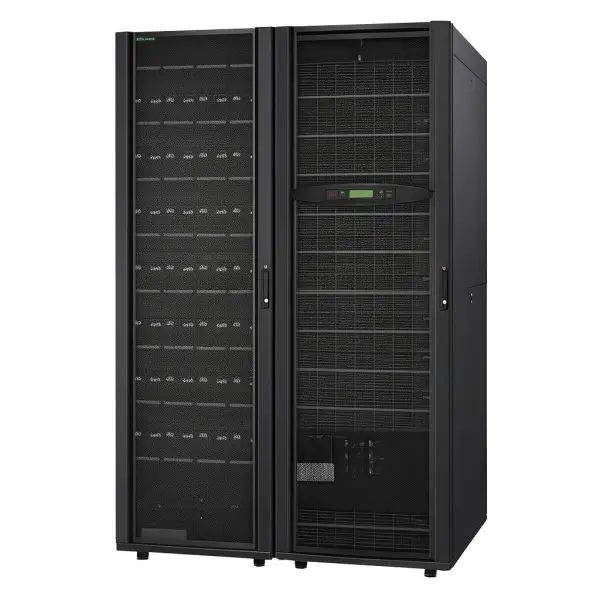

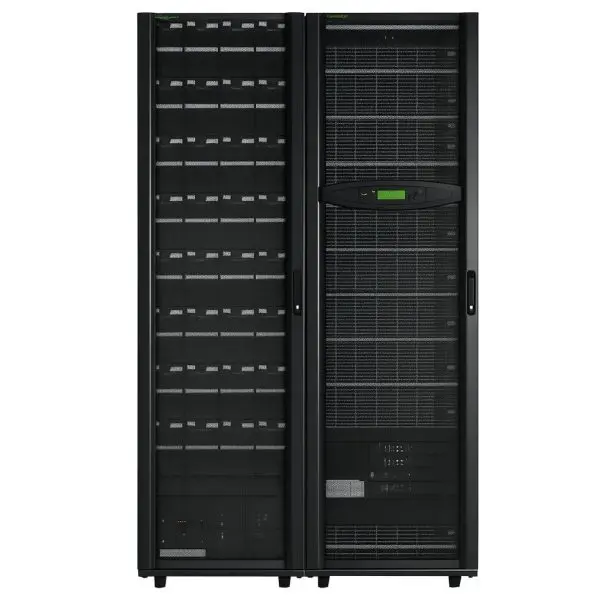

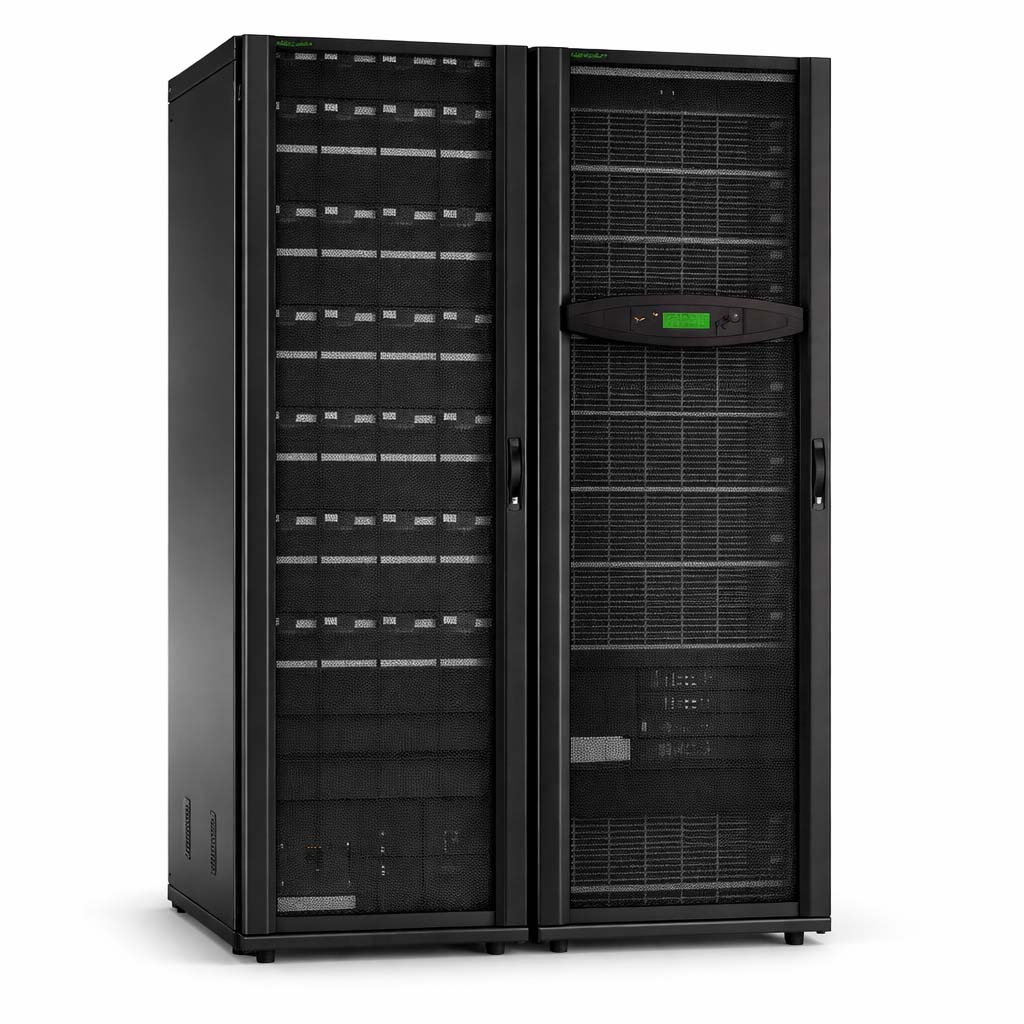

The Symmetra PX 100 kW delivers modular, three-phase protection with swappable 10 kW power modules, embedded network management, and a static bypass switch. Our refurbished units are fully reconditioned, cosmetically refreshed, and tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 100Â kW / 100Â kVA; true double-conversion on-line; unity PF (1.0); efficiency up to ~95% (normal mode) |
| Input | 3-phase + Neutral + Ground; voltage window (full load) 177–239 V; frequency 40–70 Hz; input PF >0.98 (@ >25% load); ITHD <5% (full load); nominal input current 297 A; max input current 327 A (nominal Vin, 10% charging); input current limit 360 A |
| Output | 208 V L-L (3-phase + N + G); nominal output current 278 A; frequency 50/60 Hz (bypass-sync) or ±0.1% free-running; VTHD <2% (100% resistive), <6.5% (100% SMPS); overload 150% for 30 s; load PF from 0.5 leading to 0.5 lagging without derating |
| Bypass | 3-phase + Neutral + Ground; nominal 208 V; voltage range ±10%; selectable sync bandwidth (±0.1/±3/±10 Hz); bypass nominal current 278 A, max overload input current 347 A |
| Short-Circuit / AIC | Coordinate per site one-line and facility planning (rating varies with UPS-only vs. MBC/PDU configurations) |
| Battery System | External XR battery frames; up to four frames supported; swappable high-performance battery modules (each module = one row); runtime scales with cabinet count and load |
| Controls & Comm | Embedded network management; two SmartSlot positions; PowerView LCD; remote protocols (HTTP/HTTPS, Telnet, SSH, SNMP) |
| Physical | Max dimensions (H×W×D) 79.1″ × 47.2″ × 42.1″ (2011 × 1200 × 1070 mm); max weight ~4054 lb (1808 kg); shipping ~4434 lb (2021 kg) |
| Environment | Indoor, temperature-controlled location; install per OEM site planning (clearances, ventilation, altitude derating) |
| Accessory | Model | Notes |
|---|---|---|
| XR Battery Frame — 9 modules | SYCFXR9 | External runtime cabinet for 208 V PX 100 kW; up to four frames supported |
| High-Performance Battery Module | SYBT9-B4 | Hot-swappable module used in XR frames |
| 100Â kVA Modular PDU | (various) | 600/480/208Â V input, 208Â V output; MBP + distribution in a 600Â mm rack |
| External Maintenance Bypass | MBB (site-specific) | Wrap-around service bypass panel (300Â mm) |
