$14,991.23
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 208/120 | N/A | 200/208/220 VAC | 33.3″ | 21.7" | 77.6″ | 1,500 lb |
| Voltage | 208/120 |
| WPC | N/A |
| Amp/H | 200/208/220 VAC |
| Length | 33.3″ |
| Width | 21.7" |
| Height | 77.6″ |
| Weight | 1,500 lb |

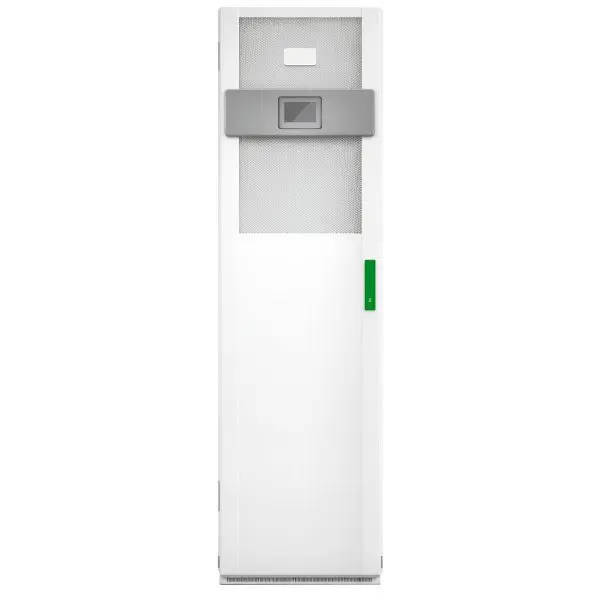

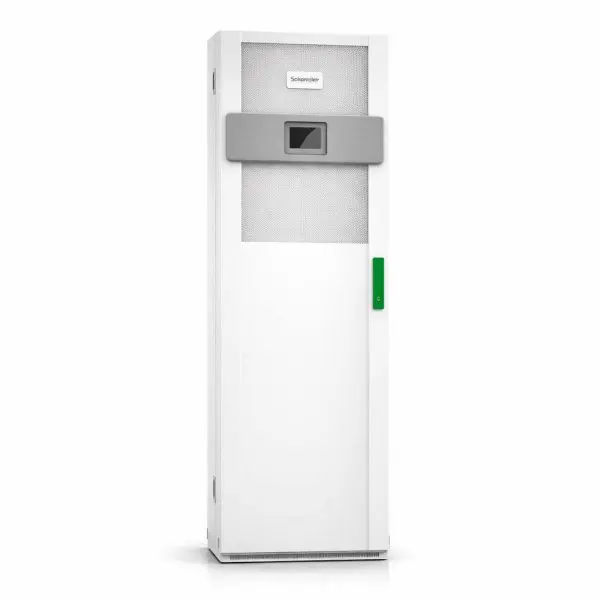

Galaxy VS 50 kW (208 V) delivers high-efficiency, modular protection in a compact footprint with
smart, hot-swappable battery strings. This refurbished unit is fully reconditioned, cosmetically
refreshed, and tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 50 kW / 50 kVA; transformer-free true double-conversion (VFI); unity output power factor (1.0); THDU <1% (linear), <5% (non-linear); programmable slew 0.25–6 Hz/s. |
| Input | 200/208/220 VAC 3-phase WYE, 4-wire (L1-L2-L3-N-G single-mains; L1-L2-L3-G dual-mains); voltage window @208 V: 177–239 VAC; frequency 40–70 Hz; input PF ≈0.99 (>50% load); input THDi <3% (linear); ramp-in 1–40 s. |
| Output | 200/208/220 VAC 3-phase WYE, 4-wire; regulation ±1% (sym), ±3% (asym); dynamic load response ±5% @2 ms, ±1% @50 ms; overload 150% for 1 min / 125% for 10 min; frequency 50/60 Hz bypass-sync or ±0.1% free-running; nominal output current (A) @200/208/220 V: 144/139/131. |
| Bypass | Static bypass (WYE 4-wire). Bypass window @208 V: 187–229 VAC; sync bandwidth selectable (±1/±3/±10 Hz). Built-in backfeed protection. |
| Short-Circuit / AIC | Maximum short-circuit rating: 65Â kAÂ RMS. |

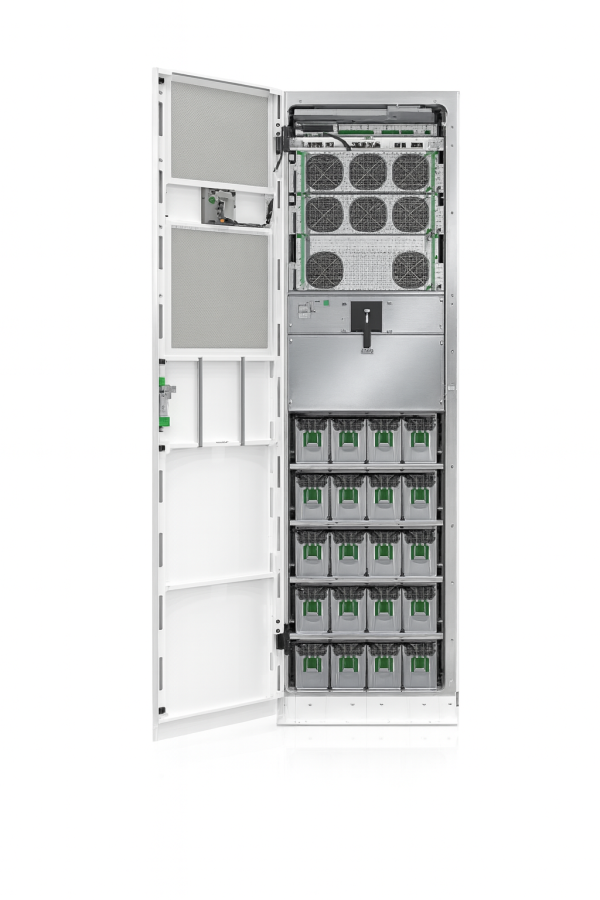

| Battery System | 3 internal smart modular 9 Ah battery strings (pre-installed), expandable to 5; nominal DC 480 V (float ≈545 V, boost ≈572 V); hot-swappable battery modules; runtime scales with string count. |
| Controls & Comm | LCD/HMI; remote alarm panel option; optional network management (SNMP/web), Modbus/RS-485, and dry-contact/relay I/O. |
| Physical | Approx. 1970 H × 550 W × 847 D mm (77.6″ × 21.7″ × 33.3″); weight ≈ 680 kg (1,500 lb) with 3 internal strings. |
| Environment | Operating 0–40 °C; 5–95% RH (non-condensing); elevation 0–3000 m (derate above 1000 m); noise ≈57 dB @70% / 65 dB @100% load; protection class IP20. |
| Accessory | Model | Notes |
|---|---|---|
| Smart Modular Battery String | GVSBTH4 (9Â Ah) | Three installed; expand to five for extended runtime |
| Battery Module (High Capacity) | GVSBTHU | Hot-swappable module used in each string |
| Modular Battery Cabinet | GVSMODBC9 | External runtime expansion cabinet (up to nine strings) |
