$17,351.56
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 208/120 | N/A | 160 KVA | 39.5" | 33.6" | 77.6 | 1845 |
| Voltage | 208/120 |
| WPC | N/A |
| Amp/H | 160 KVA |
| Length | 39.5" |
| Width | 33.6" |
| Height | 77.6 |
| Weight | 1845 |

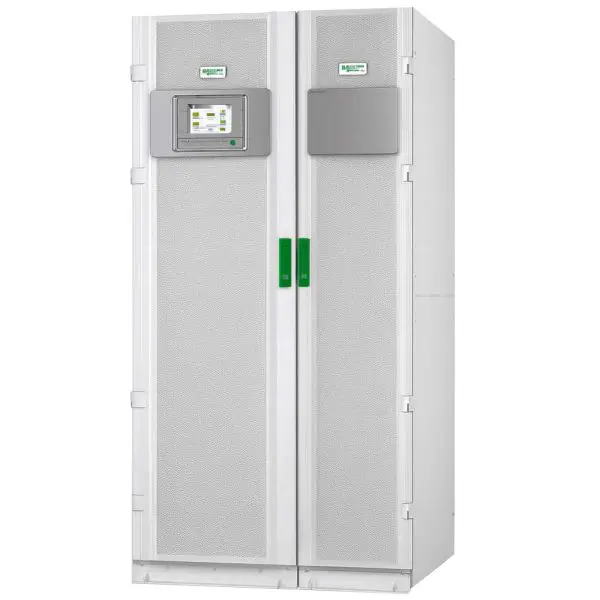

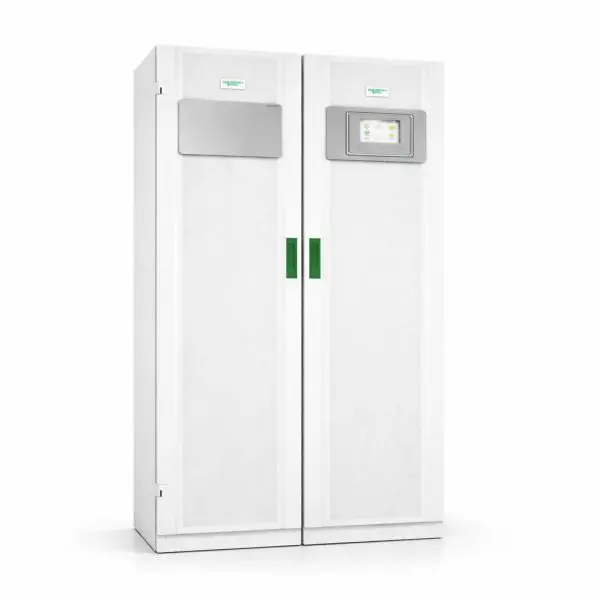

The Schneider Electric GVMSB160KGS refurbished UPS provides three-phase power protection for compatible data centers, industrial facilities, and critical equipment. Its online double-conversion design supplies conditioned power during normal operation and battery backup during utility outages.
Rated at 160kVA / 144kW, the Galaxy VM supports external battery configurations selected for the required runtime. Each refurbished unit is reconditioned, cosmetically refreshed, and tested in the USA before shipment.
| Specification | Details |
|---|---|
| Model | GVMSB160KGS |
| Condition | Refurbished and tested |
| Power Rating | 160kVA / 144kW |
| Topology | Online double-conversion with sine-wave output |
| Input | 480V AC, three-phase; confirm wiring, grounding, and protective-device requirements for the supplied configuration |
| Output | 480V AC, three-phase; 50/60Hz operation as configured |
| Bypass | Built-in static bypass; confirm maintenance bypass provisions and transfer settings for the installation |
| Short-Circuit Coordination | Verify equipment nameplate ratings and required upstream protection against available site fault current |
| Battery System | External battery cabinets; cabinet type, battery strings, and supported runtime confirmed on the quote |
| Controls & Communications | 7-inch color touchscreen; installed network management, communications options, and emergency power-off provisions confirmed with order |
| Approximate Dimensions | 77.6 in H × 39.5 in W × 33.6 in D (1970 × 1002 × 854 mm) |
| Approximate UPS Weight | 1,498 lb (679 kg); confirm complete system and shipping weights before delivery |
| Operating Environment | 0–40°C; 0–95% relative humidity, non-condensing; follow manufacturer ventilation, clearance, and altitude requirements |
Configure the GVMSB160KGS system for your runtime, monitoring, and service requirements. Battery cabinets and replacement components must match the supplied equipment and approved battery configuration.
| Accessory | Details |
|---|---|
| Modular Battery Cabinets | Compatible narrow or wide cabinet arrangements selected for required runtime and available space |
| Battery Strings | Replacement strings matched to the installed cabinet and battery-management configuration |
| Communications Options | Monitoring and interface options confirmed for the installed hardware |
| Startup & Commissioning | Available from Gruber Power Services; included only when specified on the quote |
Please Note: Confirm the supplied GVMSB160KGS configuration, included accessories, battery complement, and connection details on your quote before purchase. Runtime varies with battery configuration, condition, and connected load.
