Manufacturer
OEM Part Number
GPS Part Number
Categories
$1,195.36
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208 V | 10 kVA | 27.6" | 19.02" | 5.2" | 55.23 lbs |
| Voltage | 208 V |
| Amp/H | 10 kVA |
| Length | 27.6" |
| Width | 19.02" |
| Height | 5.2" |
| Weight | 55.23 lbs |

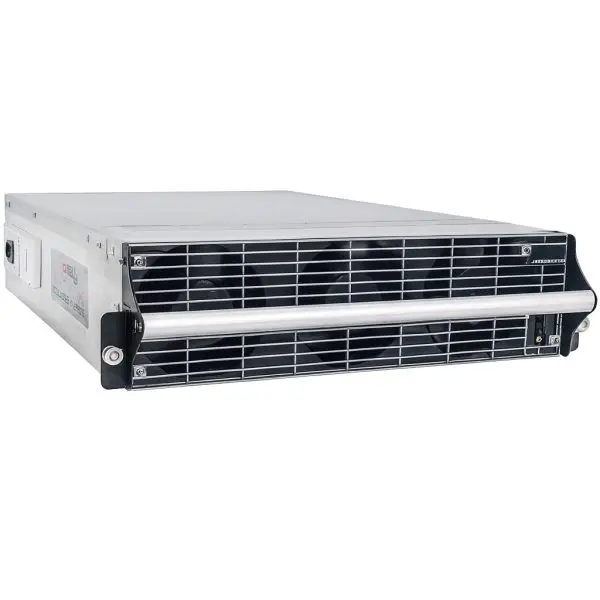

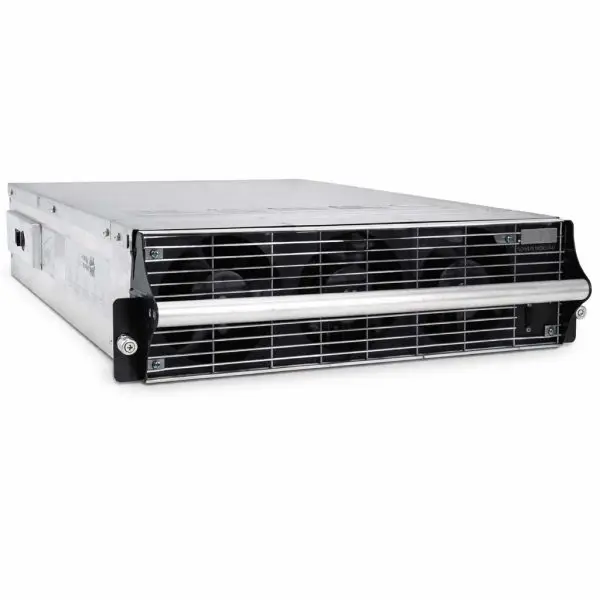

This 10 kW Power Module, APC PN — SYPM10KF2, is designed for use in APC Symmetra PX 20 kW, 40 kW, and 100 kW UPS systems.

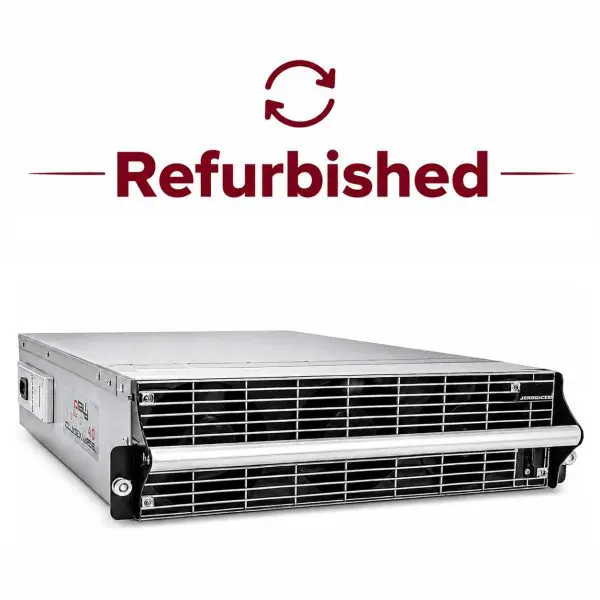

This unit is offered in a professionally refurbished condition.
As a four-decade industry veteran, Gruber Power pioneered the refurbishment of modular, mission-critical power electronics like this
Symmetra PX power module. Each refurbished unit is rebuilt by experienced EE technicians using new capacitors, fans, and other wear components, then validated through functional and load testing to ensure reliable real-world performance.
Backed by our full 1-Year Warranty, this refurbished 10 kW power module restores dependable capacity and redundancy for APC Symmetra PX 20, 40, and 100 kW platforms.
| Option | Description | Warranty |
|---|---|---|
| Refurbished | Fully rebuilt 10 kW power module with new capacitors, cooling fans, and inspected power components. Reconditioned to like-new electrical and mechanical performance. |
1‑Year
|
| Tested | Operationally verified power module. Passed load bank testing and QC inspection without component-level refurbishment. |
90‑Day
|
| UPS Model | Frame Rating | Compatible Module | Std. Modules | Max Modules |
|---|---|---|---|---|
| Symmetra PX 20 | 20 kW | SYPM10KF2 | 2 | 2 |
| Symmetra PX 40 | 40 kW | SYPM10KF2 | 4 | 5 |
| Symmetra PX 100 | 100 kW | SYPM10KF2 | 10 | 10 |
Notes: The SYPM10KF2 is the newer high-efficiency 10 kW power module used across APC Symmetra PX 20, 40, and 100 kW systems. It supersedes earlier SYPM10KF variants and supports scalable capacity and N+1 redundancy. Refurbished units are fully rebuilt, tested, and backed by a 1-year warranty.
