$175.89
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| N/A | N/A | 3 | 6 | 8 | 2 |
| Voltage | N/A |
| Amp/H | N/A |
| Length | 3 |
| Width | 6 |
| Height | 8 |
| Weight | 2 |

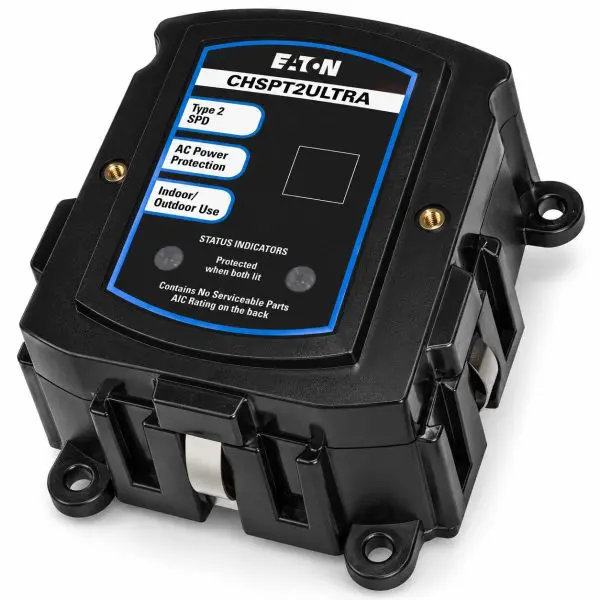

The Eaton CHSPT2ULTRA is a compact, high-performance Type 2 surge protective device (SPD) designed to clamp damaging transients at the panel level. Installed at the load center (breaker box), it helps protect an entire home or small facility from utility switching events, nearby lightning activity, and other high-energy surges that can shorten the life of HVAC controls, appliances, networking gear, TVs, and sensitive electronics.
| Category | Detail |
|---|---|
| Model | Eaton CHSPT2ULTRA (Ultimate Surge Protection, 3rd Edition) |
| SPD Type | Type 2 Surge Protective Device (panel / load center) |
| Installation | Connects to load center (breaker box); universally connects to most manufacturer panels |
| Use Location | Indoor / Outdoor use (rated enclosure) |
| Status | Protection status indicators on faceplate |
| Dimensions | Approx. 2.38″ L × 5.25″ W × 7.5″ H |
| Application | Whole-home / whole-panel surge suppression for residential or light commercial service |
This is a panel-connected surge device intended for installation at a breaker panel/load center. For safety and code compliance, installation is typically performed by a qualified electrician.
