$449.99
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 120 VAC | N/A | 1440 VA | 1.73in | 17.01in | 9.29in | 9.7lb |
| Voltage | 120 VAC |
| WPC | N/A |
| Amp/H | 1440 VA |
| Length | 1.73in |
| Width | 17.01in |
| Height | 9.29in |
| Weight | 9.7lb |
90-Day Gruber Power Services Warranty
SKU: ATS-APC-AP4450A Â |Â Condition: Tested

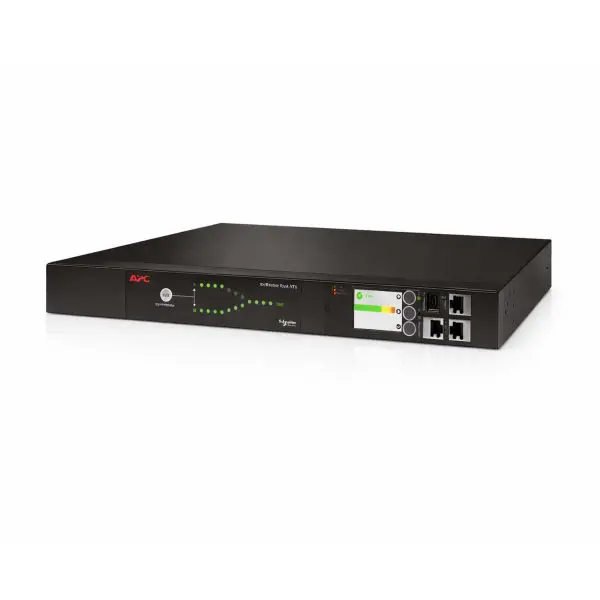

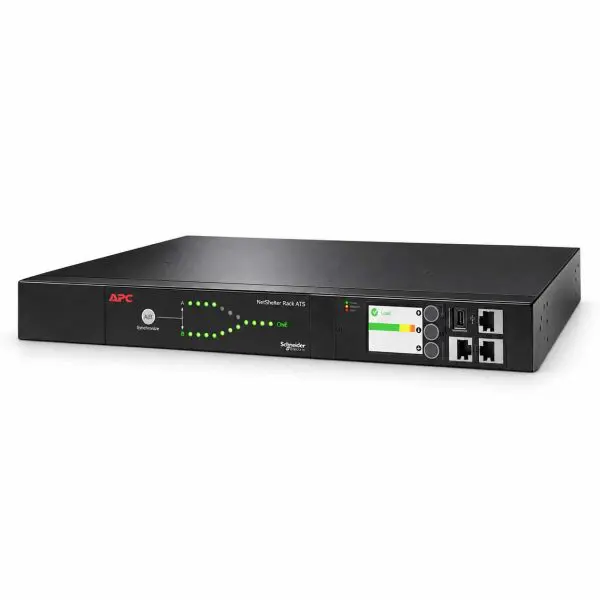

Add dual-source power redundancy to single-corded IT equipment with the APC NetShelter AP4450A Rack Automatic Transfer Switch. When the selected power source becomes unavailable or moves outside the configured operating limits, the ATS automatically transfers connected equipment to an acceptable alternate source.
This compact 1U rack-mounted ATS features two A/B input cords with NEMA 5-15P plugs, 10 NEMA 5-15R outlets, and network management. It supports nominal 100/120 V AC operation and a published load capacity of 1440 VA / 1.44 kVA.
| Parameter | Detail |
|---|---|
| Product Type | Rack Automatic Transfer Switch (ATS) |
| Manufacturer / Model | APC by Schneider Electric / AP4450A |
| Condition | Professionally tested |
| Nominal Voltage | 100/120 V AC, single-phase |
| Input Frequency | 50/60 Hz |
| Input Connections | 2 × NEMA 5-15P plugs; independent A/B inputs |
| Input Cord Length | Approximately 8 ft (2.44 m) each |
| Output Connections | 10 × NEMA 5-15R receptacles |
| Line-Rated Current | 15 A |
| North American Derated Input Current | 12 A |
| Load Capacity | 1440 VA (1.44 kVA) at 120 V |
| Circuit Protection | No integral circuit breaker; connect to properly protected upstream circuits in accordance with APC installation requirements. |
| Network Management | Field-replaceable NMC3; web interface, SNMP, and command-line access |
| Environmental Monitoring | Supports compatible optional temperature and temperature/humidity sensors |
| Rack Installation | 1U, horizontal mounting in a compatible 19-inch equipment rack |
| Dimensions (H × W × D) | 1.73 × 17.01 × 9.29 in 44 × 432 × 236 mm |
| Net Weight | 9.7 lb (4.4 kg) |
| Included Hardware | 1U rack-mounting brackets and mounting hardware |
| Certifications | PSE; TÃœV-C; TÃœV-NURTL; VCCI Class A |
| Standards | FCC Part 15 Class A; ICES-003 |
| Operating Environment | 23–113 °F (−5–45 °C); 5–95% relative humidity; altitude 0–10,000 ft |
| Storage Environment | −13–149 °F (−25–65 °C); 5–95% relative humidity; altitude 0–50,000 ft |
| Gruber Warranty | 90 days for this tested unit |
Connect inputs A and B to independent, properly protected power sources. Each source must support the full connected load. The two inputs provide redundancy; they do not combine to increase available load capacity.
For UPS-backed installations, APC specifies double-conversion online UPS systems, not line-interactive UPS models. Follow the manufacturer’s installation instructions and verify source compatibility before connecting equipment.
Temperature and humidity monitoring requires a compatible optional sensor. Sensors are not included unless specifically stated in the order.
| Option | Preparation & Testing | Gruber Warranty |
|---|---|---|
| Tested This listing |
A/B inputs, automatic transfer operation, and all ten outlets verified under load. Input cords and plugs inspected; NMC communication confirmed. | 90 Days |
| Refurbished | Cleaned and serviced, with cosmetic touch-ups as needed. Outlet and failover operation retested; NMC reset and firmware checked. | 1 Year |
Warranty periods shown are provided by Gruber Power Services for the corresponding product condition. This listing is for the tested version with a 90-day warranty; the refurbished option is a separate offering.
| Model | Input Connections | Output Receptacles | Rack / Nominal Rating |
|---|---|---|---|
| AP4450A | 2 × NEMA 5-15P | 10 × NEMA 5-15R | 1U; 100/120 V; 15 A line-rated 12 A North American derated input current |
| AP4430A | 2 × NEMA L6-20P | 8 × IEC C13 1 × IEC C19 |
1U; 200/208 V; 20 A line-rated |
| AP4453A | 2 × NEMA L5-30P | 16 × NEMA 5-20R | 2U; 120 V; 30 A line-rated |
| AP4423A | 2 × IEC C20 inlets | 8 × IEC C13 1 × IEC C19 |
1U; 230 V; 16 A line-rated |
Selection note: Related models are shown for comparison, not as direct replacements. Verify supply voltage, input connections, outlet types, rack space, and applicable load derating before selecting a different model.
