$9,474.23
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 400/480 VAC | N/A | 250 kW | 34 " | 46" | 78" | 1700 lbs |
| Voltage | 400/480 VAC |
| WPC | N/A |
| Amp/H | 250 kW |
| Length | 34 " |
| Width | 46" |
| Height | 78" |
| Weight | 1700 lbs |

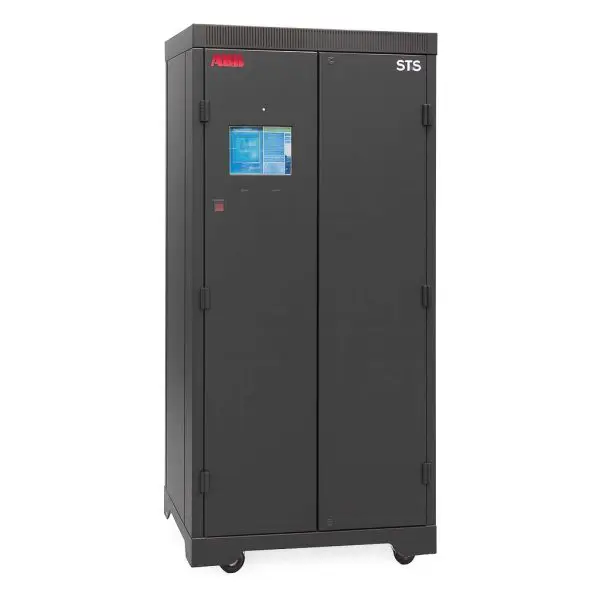

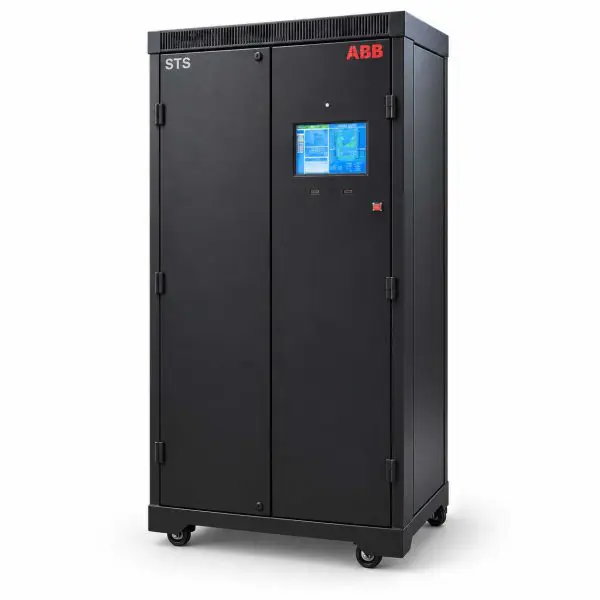

The ABB Cyberex SuperSwitch 4 is a digital static transfer switch designed to support power continuity in mission-critical three-phase environments. By monitoring two independent AC sources and rapidly transferring the connected load to an acceptable alternate source when needed, it helps minimize disruption caused by source disturbances. Applications include data centers, healthcare facilities, financial institutions, and other facilities requiring dependable dual-source power distribution.
| Parameter | Detail |
|---|---|
| Manufacturer / Brand | ABB / Cyberex |
| Product Family | SuperSwitch 4 — Digital Static Transfer Switch (STS) |
| Condition | Professionally refurbished |
| Function | Transfers a critical three-phase load between two AC input sources |
| Current Rating Options | Separate models spanning 100–4,000 A (3-pole) and 200–800 A (4-pole). These are family offerings, not an adjustable range. Confirm this unit’s nameplate rating. |
| Nominal Voltage Options | 208, 380, 400, 415, or 480 VAC, depending on configuration. Not every voltage is available with every current or pole configuration. |
| Frequency | 60 Hz; 50 Hz available on selected configurations. Confirm the supplied unit’s rating. |
| In-Phase Sensing + Transfer | <4 ms using ABB’s A9 transfer method |
| Out-of-Phase Sensing + Transfer | <16 ms using Real Time Flux Control for dynamic inrush restraint |
| Full-Load Efficiency | Up to 99.4% at 480 V; up to 98.7% at 208 V |
| Overload Capability | 125% for 30 minutes; 150% for 1 minute; 200% for 10 seconds |
| Communications | Modbus RTU over RS485; Modbus TCP over Ethernet |
| Cooling | Redundant fans with failure sensing |
| Operating Temperature | 32–104°F (0–40°C) |
| Published Safety Standards | ABB lists ETL certification to UL 1008S and CSA C22.2 No. 178. Confirm certification markings on the supplied unit. |
| Cabinet Dimensions | Configuration-dependent; exact height, width, and depth require verification for this unit |
| Equipment / Shipping Weight | Unit-specific; equipment weight and packaged shipping weight require confirmation |
| Product Family | Intended Application | Selection Requirements |
|---|---|---|
| SuperSwitch 4 | Critical three-phase loads supplied by two compatible AC sources, including A/B UPS-backed power distribution systems. | Verify voltage, frequency, load current, neutral arrangement, pole configuration, fault-current rating, and site requirements against the unit’s documentation. |
Compatibility must be evaluated for the actual installation; a product-family name alone does not establish suitability for a particular UPS or electrical system.
